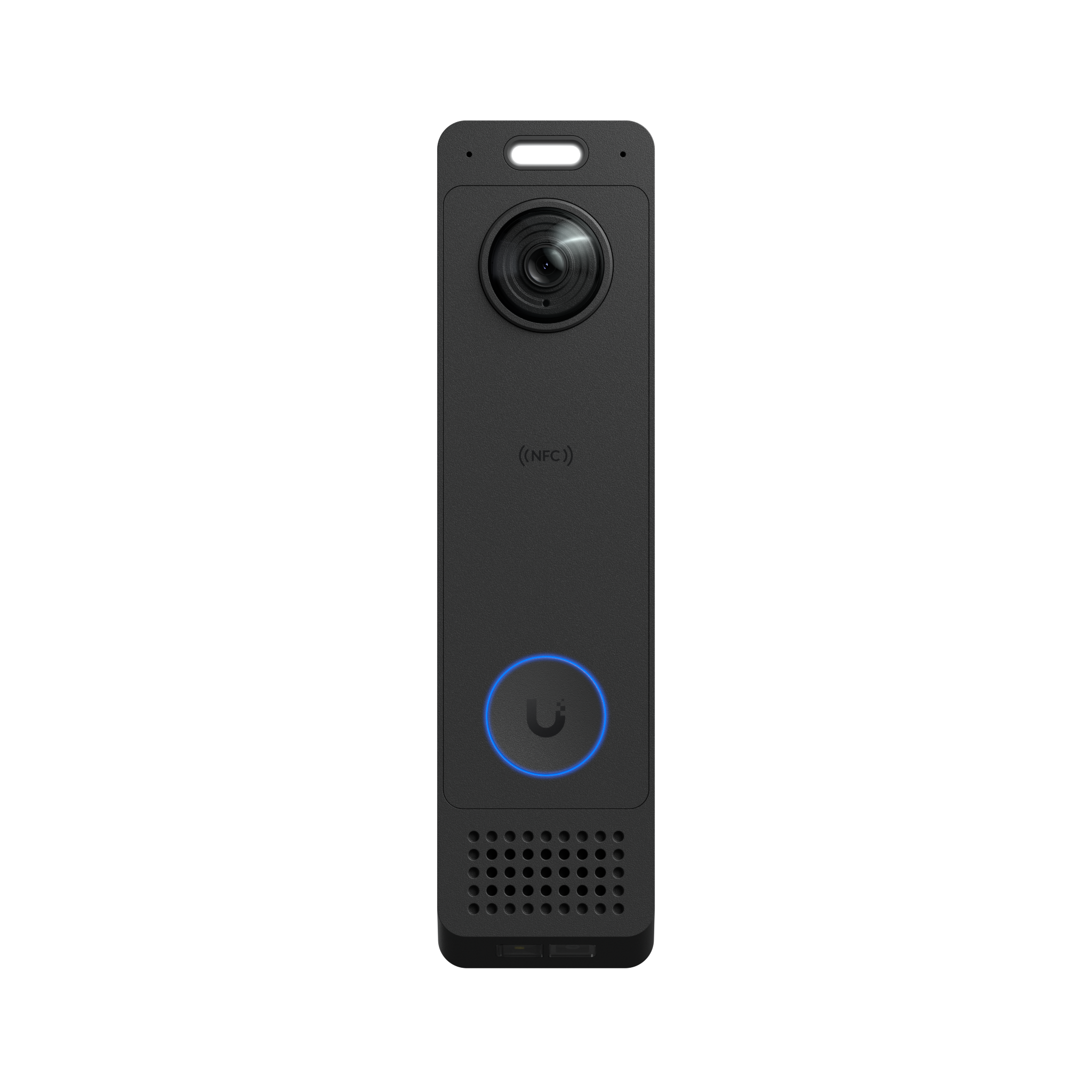

The Ubiquiti UniFi G6 Entry (UVC-G6-Entry) is a door station that works as both a video doorbell and an access reader. Ubiquiti describes it as “An intelligent door entry system with native UniFi Protect and UniFi Access integration, including enhanced two-way audio.” Two cameras are fitted: a 5MP main camera in a tall 3:4 portrait aspect that shows a caller head to toe, and a separate 8MP package camera aimed at the doorstep. Unlocking can be done by face, mobile, NFC card or keyfob, or an Apple or Google Wallet pass. It suits offices, apartment entrances and homes already running UniFi.
Key features
- Main camera at 5MP 1920 x 2560 (3:4) and 30 FPS, with a 180° diagonal field of view for full person visibility
- Separate 8MP package camera at 3 FPS covering the doorstep
- Face recognition and face unlock, mobile unlock, NFC card and keyfob access, and Apple/Google Wallet support
- Two-way intercom and doorbell functions, with smart detections for people, vehicles and animals
- Native integration with both UniFi Protect and UniFi Access
- IP55 weatherproofing, IK07 tamper resistance and an aluminium enclosure, rated for indoor and outdoor use
- Ring button, factory reset and a tamper switch; R/G/B/W status LEDs
- UL 294 and CAN/ULC-60839-11-1 certified, and NDAA compliant
- Single GbE RJ45 run carrying data and PoE+ power
Specifications
| Model | UVC-G6-Entry |
| Main camera | 5MP CMOS, 1920 x 2560 (3:4), 30 FPS |
| Package camera | 8MP CMOS, 3264 x 2448 (4:3), 3 FPS |
| Field of view | Main: H 100°, V 135°, D 180° / Package: H 66°, V 51.7°, D 78° |
| Lens | Fixed focal length |
| Night mode | Built-in IR LED illumination and IR cut filter |
| IR night vision | 5 m (16 ft) |
| Audio | Two-way audio |
| Applications | UniFi Protect, UniFi Access |
| Connectivity | BLE 4.1, NFC |
| Networking interface | GbE RJ45 port |
| Power method | PoE+ (UL 294 power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU) |
| Supported voltage range | 42–57V DC |
| Max. power consumption | 16W |
| Processor | Quad-core Arm Cortex-A53 based chip |
| Weatherproofing | IP55 |
| Tamper resistance | IK07 |
| Indoor and outdoor use | Yes |
| Mounting | Wall mount, gangbox mount plate, 20° wedge mount (Included); junction box (Optional) |
| Enclosure material | Aluminum |
| Dimensions | 176 x 45 x 29.6 mm (6.9 x 1.8 x 1.2″) |
| Weight | 275 g (9.7 oz) |
| Operating temperature | -30 to 50° C (-22 to 122° F) |
| Operating humidity | 5 to 90% non-condensing |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| NDAA compliant | Yes |
The UniFi G6 Entry replaces a separate doorbell, intercom and card reader with one PoE+ device that reports into the UniFi applications you already use.
