UP-VIEWPORT $525.00 Save:$61.00(10%)
Description

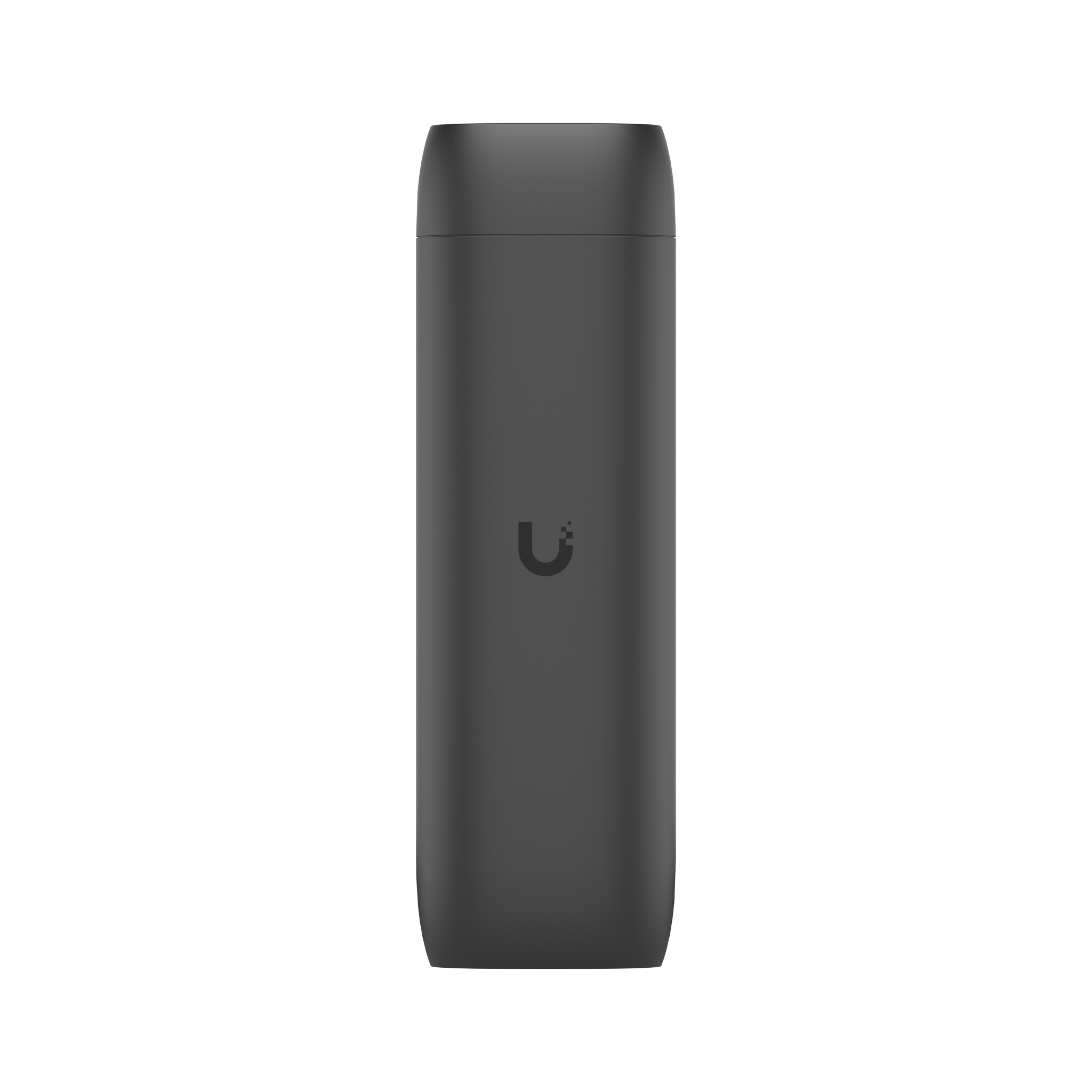

The Ubiquiti UniFi Protect Viewport (UP-Viewport) is a small network appliance that drives an HDMI display directly from UniFi Protect, so a monitor or television can show live camera feeds without a computer sitting behind it. Ubiquiti describes it as an “easy-to-use hub for viewing Protect camera feeds on an HDMI display”. It is the usual answer for a reception desk, a security office, a staff room or a shop counter that needs a permanent live view, and because it is powered over Ethernet it only needs one cable run to the display location plus a short HDMI lead.

Key features

  • Shows UniFi Protect live camera views on any HDMI display, with no PC required
  • Single GbE RJ45 port carries both data and power over PoE
  • Low 9.5W maximum draw
  • Compact polycarbonate housing that can sit behind the display
  • Factory reset button and ESD/EMP protection of ±8 kV air, ±4 kV contact
  • Managed from UniFi Protect on the web and the iOS and Android apps
  • NDAA compliant

Specifications

Model UP-Viewport
Dimensions 157 x 52 x 37 mm (6.2 x 2.1 x 1.5″)
Weight 230 g (8.1 oz); 252 g (8.9 oz) with TV mount
Enclosure material Polycarbonate
Mount material Polycarbonate
Networking interface (1) GbE RJ45 port
Power method PoE
Max. power consumption 9.5W
ESD/EMP protection Air: ±8 kV, contact: ±4 kV
Buttons (1) factory reset
Operating temperature 0 to 40°C (32 to 104°F)
Operating humidity 20 to 80% non-condensing
Management UniFi Protect (web, iOS and Android)
Certifications FCC, IC, CE, Anatel: 06681-25-08356
NDAA compliant Yes

Pair the Protect Viewport with an existing UniFi Protect console to turn any spare screen into a dedicated camera wall.
