Name: UVC-G6-PRO-ENTRY - Mr Tech
SKU: UVC-G6-PRO-ENTRY
Price: 1021.00 NZD
Availability: InStock

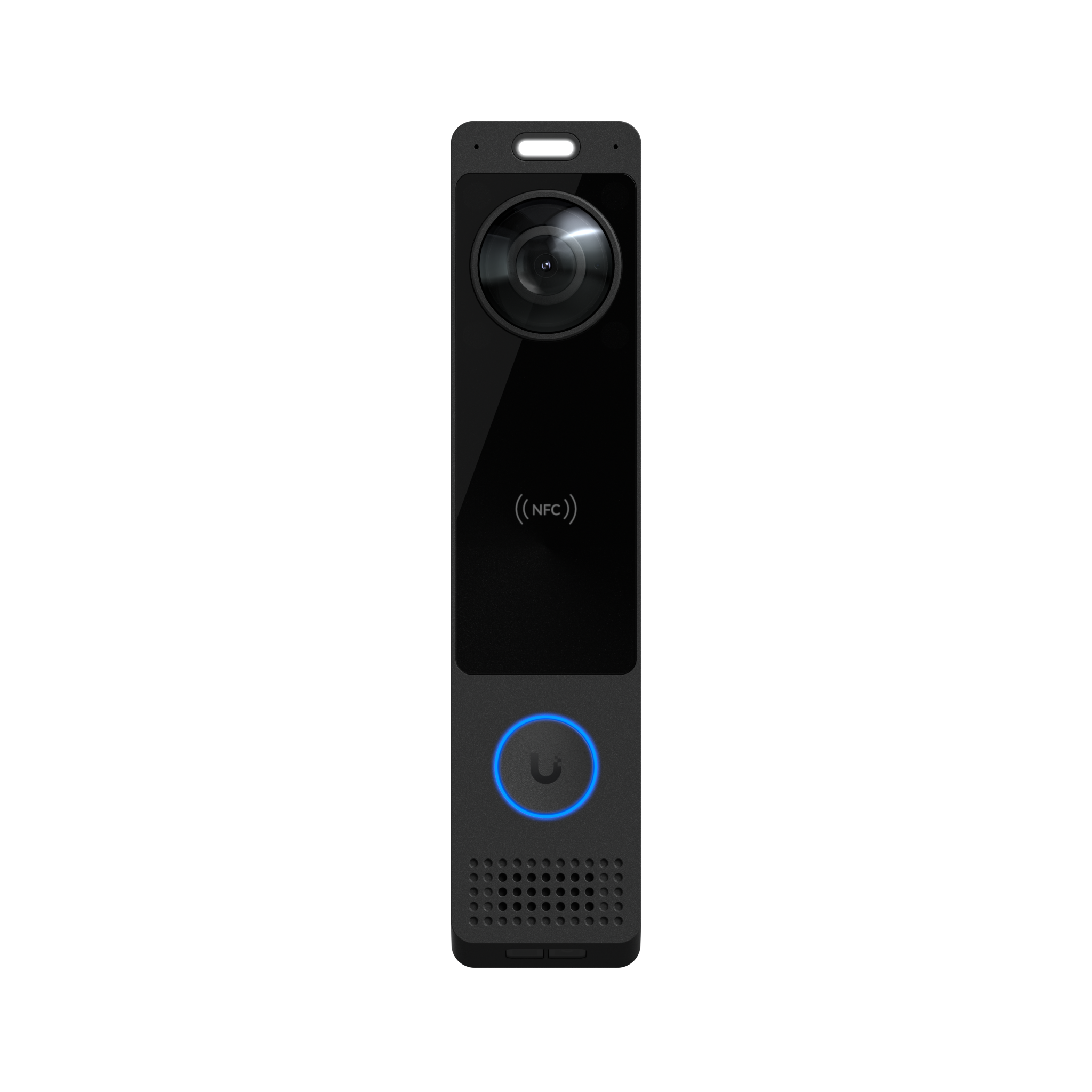

The Ubiquiti UniFi G6 Pro Entry (UVC-G6-Pro-Entry) is the flagship door station in the UniFi range, described by Ubiquiti as “An intelligent door entry system with native UniFi Protect and UniFi Access integration with a 12MP camera, two-way audio, and a 3″ touch display.” The 3″ capacitive touchscreen handles PIN entry and on-device prompts, a 12MP main camera in portrait orientation captures a caller head to toe, and a separate 8MP package camera watches the doorstep. It suits commercial entrances and apartment lobbies.

Key features

12MP main camera at 3024 x 4096 (3:4) and 20 FPS, or 8MP at 30 FPS
Separate 8MP package camera at 3 FPS covering the doorstep
Unlock by face, mobile, PIN, QR code, NFC card or keyfob, or an Apple/Google Wallet pass
Two-way intercom and doorbell functions, plus smart detections for people, vehicles and animals
Native integration with both UniFi Protect and UniFi Access
IP55 weatherproofing, IK07 tamper resistance (IK04 on the display) and an aluminium enclosure, rated for indoor and outdoor use
UL 294 and CAN/ULC-60839-11-1 certified, NDAA compliant, powered over PoE+

Ubiquiti notes that door access functions such as NFC, Face ID and Interface Designer configuration require a UniFi Access Hub, so plan one into the install.

Specifications

Model	UVC-G6-Pro-Entry
Main camera	12MP CMOS; 12MP 3024 x 4096 (3:4) at 20 FPS or 8MP 2160 x 3840 (9:16) at 30 FPS
Package camera	8MP CMOS, 3264 x 2448 (4:3), 3 FPS
Field of view	Main: H 100°, V 136.3°, D 176.4° (12MP); H 70.9°, V 127.5°, D 147.4° (8MP) / Package: H 66°, V 51.7°, D 78°
Lens	Fixed focal length
Night mode	Built-in IR LED illumination and IR cut filter
IR night vision	5 m (16 ft)
Display	75 mm (3″) diagonal, capacitive multi-touch, 480 x 854 px, portrait, max. 1000 nits typical
Audio	Two-way audio
Applications	UniFi Protect, UniFi Access
Connectivity	BLE 4.1, NFC
Networking interface	GbE RJ45 port
Power method	PoE+ (UL 294 power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU)
Supported voltage range	42–57V DC
Max. power consumption	18W
Processor	Quad-core Arm Cortex-A53 based chip
Weatherproofing	IP55
Tamper resistance	IK07; LCM IK04
Indoor and outdoor use	Yes
Mounting	Wall mount, gangbox mount plate, 20° wedge mount (Included); junction box (Optional)
Enclosure material	Aluminum
Dimensions	220 x 49.3 x 29.6 mm (8.7 x 1.9 x 1.2″)
Weight	360 g (12.7 oz)
Operating temperature	Device: -30 to 50° C (-22 to 122° F); display: -25 to 50° C (-13 to 122° F)
Operating humidity	5 to 90% non-condensing
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
NDAA compliant	Yes
