U7-LR

UniFi U7 Long-Range Access Point U7-LR

Blanket large spaces in fast, reliable WiFi 7 with the UniFi U7 Long-Range a 4.3 Gbps long-range access point with a 2.5 GbE uplink. Engineered for long-range indoor coverage, it delivers up to 4.3 Gbps throughput on 5 GHz and supports 300+ concurrent clients, making it the ideal choice for homes, offices, campuses, and large open-plan environments.

A high-performance, long-range WiFi 7 access point with five spatial streams, it’s engineered to deliver expansive coverage and exceptional throughput for demanding enterprise and campus environments. Its high-gain antenna design and high transmit power extend coverage across up to 1,750 sq ft, so you can reach farther with fewer access points.

True WiFi 7 performance

Built on the 802.11be (WiFi 7) standard for ultra-fast wireless performance and reduced latency, the U7-LR delivers up to 4.3 Gbps on the 5 GHz band (BW160) and 688 Mbps on 2.4 GHz, leveraging Multi-Link Operation and 3×3 MU-MIMO on 5 GHz to handle bandwidth-intensive applications with ease. It’s also backward compatible with WiFi 6/6E and earlier devices for broad client support.

Seamless roaming for mobile users

Support for 802.11r Fast Roaming and 802.11k RRM delivers smooth, uninterrupted connectivity as users move between access points, making it a reliable choice for mobile-heavy environments.

Single-cable 2.5 GbE deployment

A 2.5 GbE uplink port provides high-speed wired backhaul to fully leverage WiFi 7 throughput, while PoE support combines data and power over a single cable for simple installation. Its sleek, low-profile enclosure mounts easily on a ceiling or wall.

Key features

• WiFi 7 (802.11be) — Dual-band 2.4 / 5 GHz with 5 spatial streams
• Up to 4.3 Gbps on 5 GHz — 4.9 Gbps aggregate throughput
• Long-range coverage — Up to 1,750 sq ft with 300+ client capacity
• 2.5 GbE PoE uplink — Multi-gig backhaul over a single cable
• 3×3 MU-MIMO on 5 GHz — Maximizes simultaneous throughput
• Fast roaming — 802.11r and 802.11k for seamless mobility
• NDAA compliant — Suitable for government and federally funded projects

Technical specifications

• WiFi standard: WiFi 7 (802.11be); backward compatible with 6/6E and earlier
• Bands: 2.4 GHz / 5 GHz (dual-band)
• Spatial streams: 5 (5 GHz 3×3, 2.4 GHz 2×2 DL/UL MU-MIMO)
• Max data rates: 5 GHz 4.3 Gbps (BW160), 2.4 GHz 688 Mbps (BW40)
• Coverage area: 160 m² (1,750 ft²)
• Max client count: 300+
• Uplink: 1× 2.5 GbE RJ45 (PoE)
• Antenna gain: 5 GHz 6 dBi, 2.4 GHz 4 dBi
• Power method: PoE (42.5–57V DC), 14W max consumption

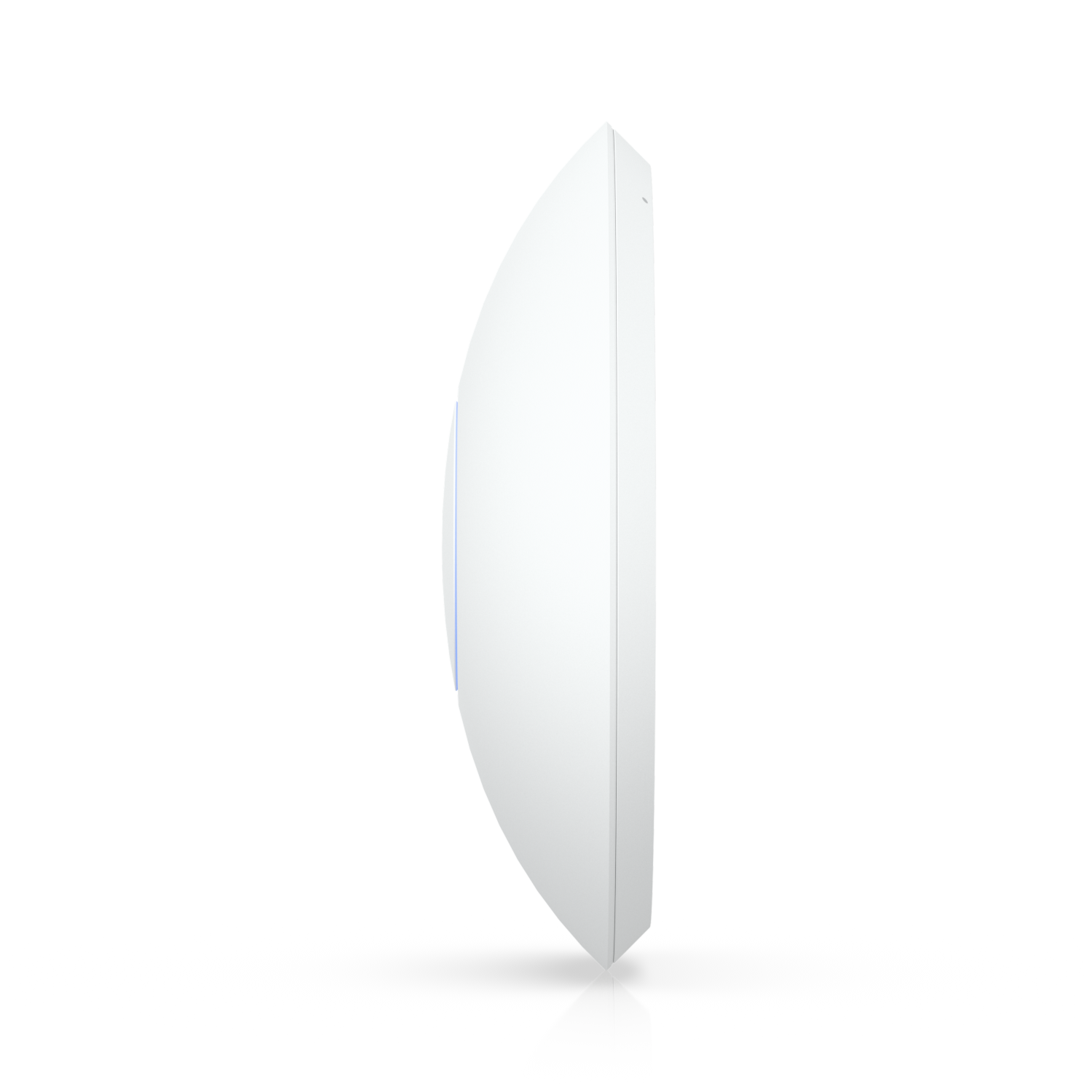

• Dimensions: ⌀175.7 x 43 mm (⌀6.9 x 1.7″)
• Mounting: Ceiling, wall (plastic mounting plate included)
• Managed via UniFi Network

The UniFi U7 Long-Range brings next-generation WiFi 7 speed and reach to large, high-density spaces all centrally managed through UniFi Network.
