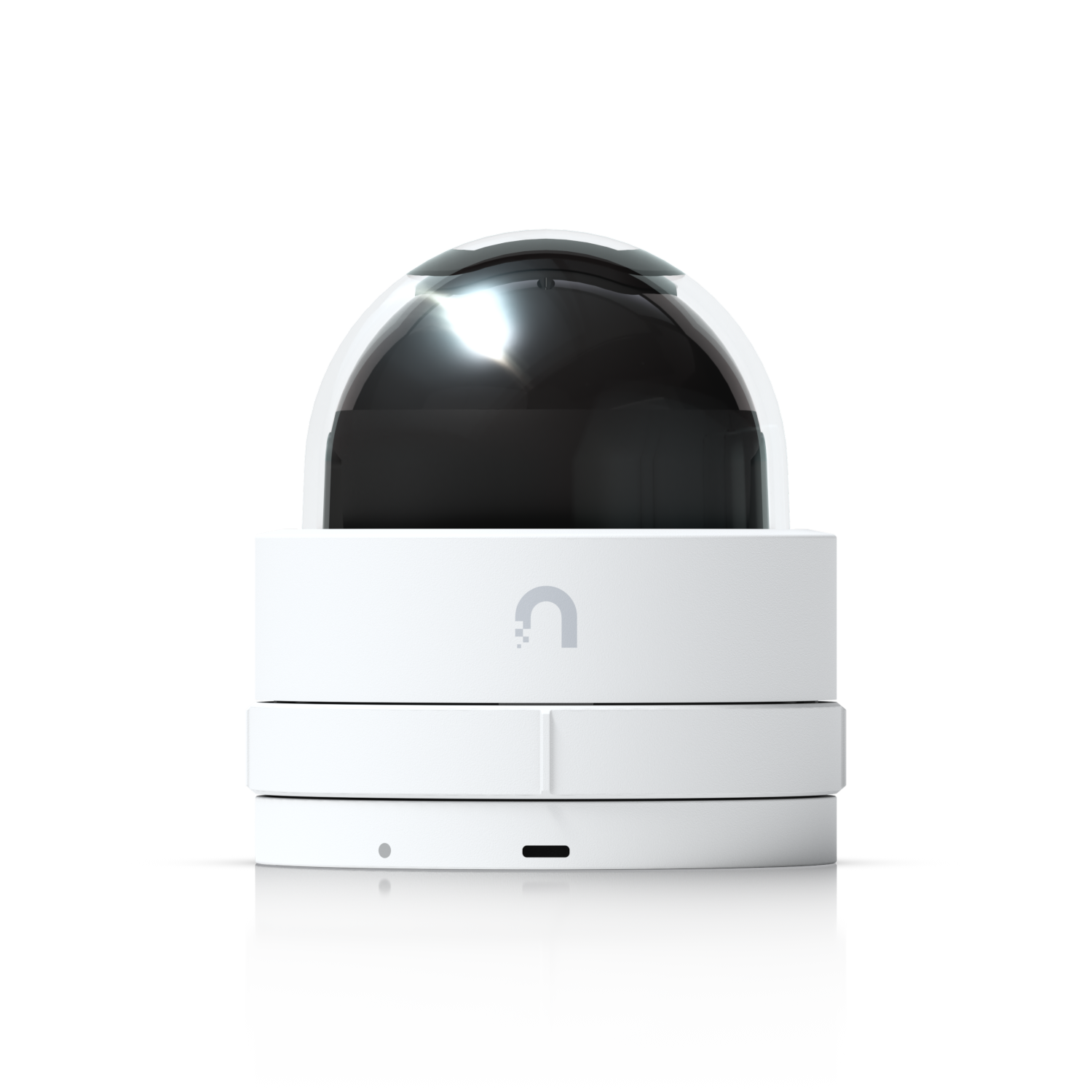

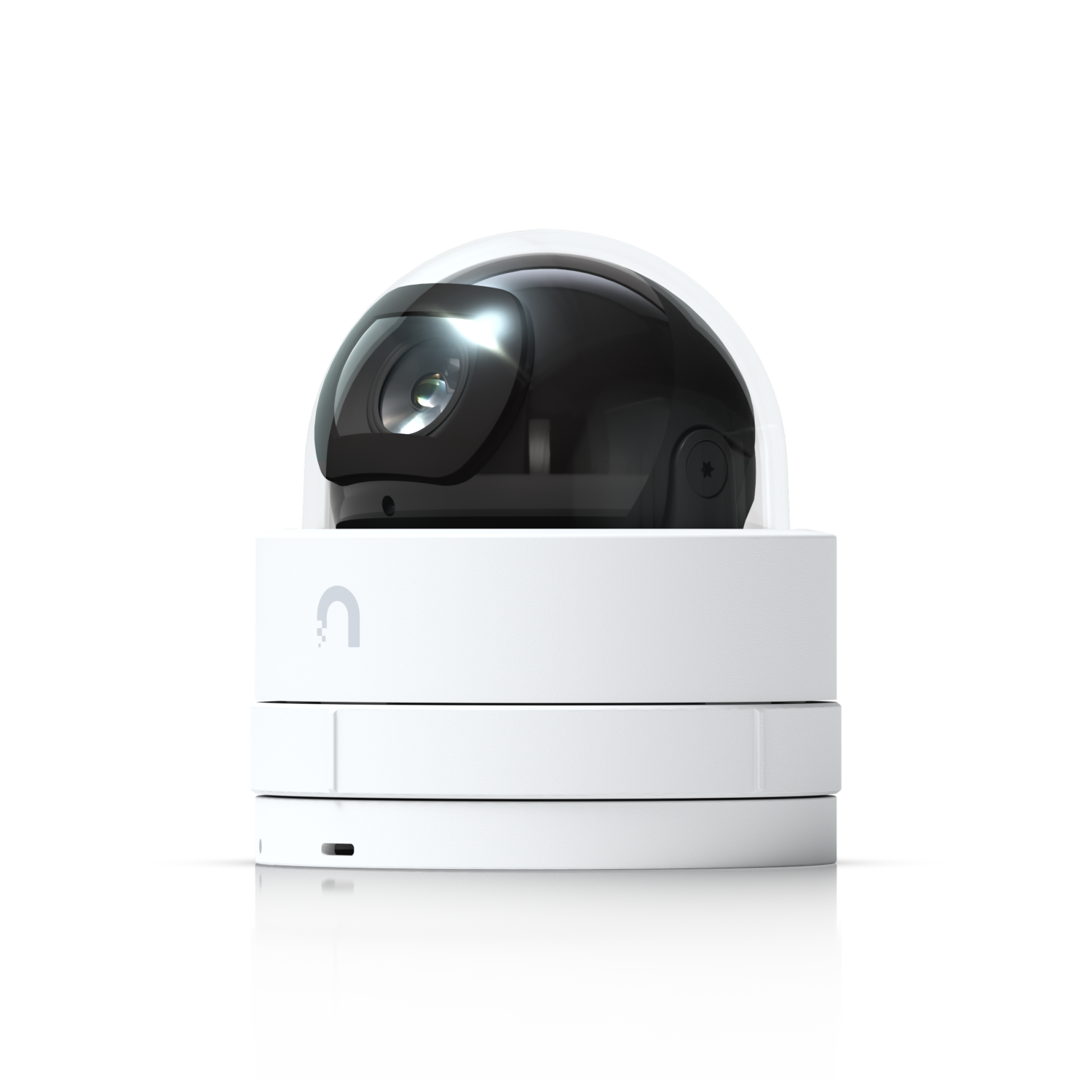

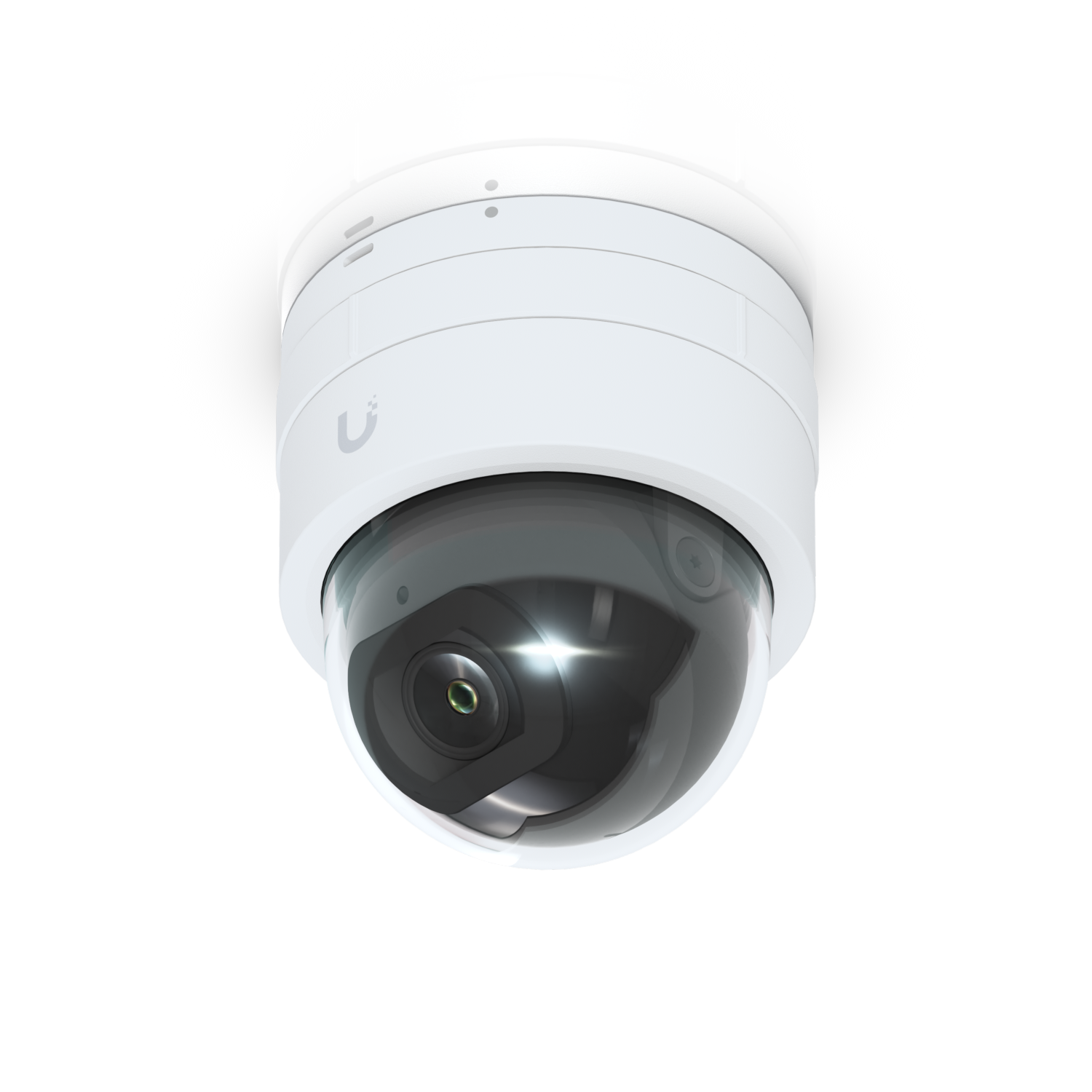

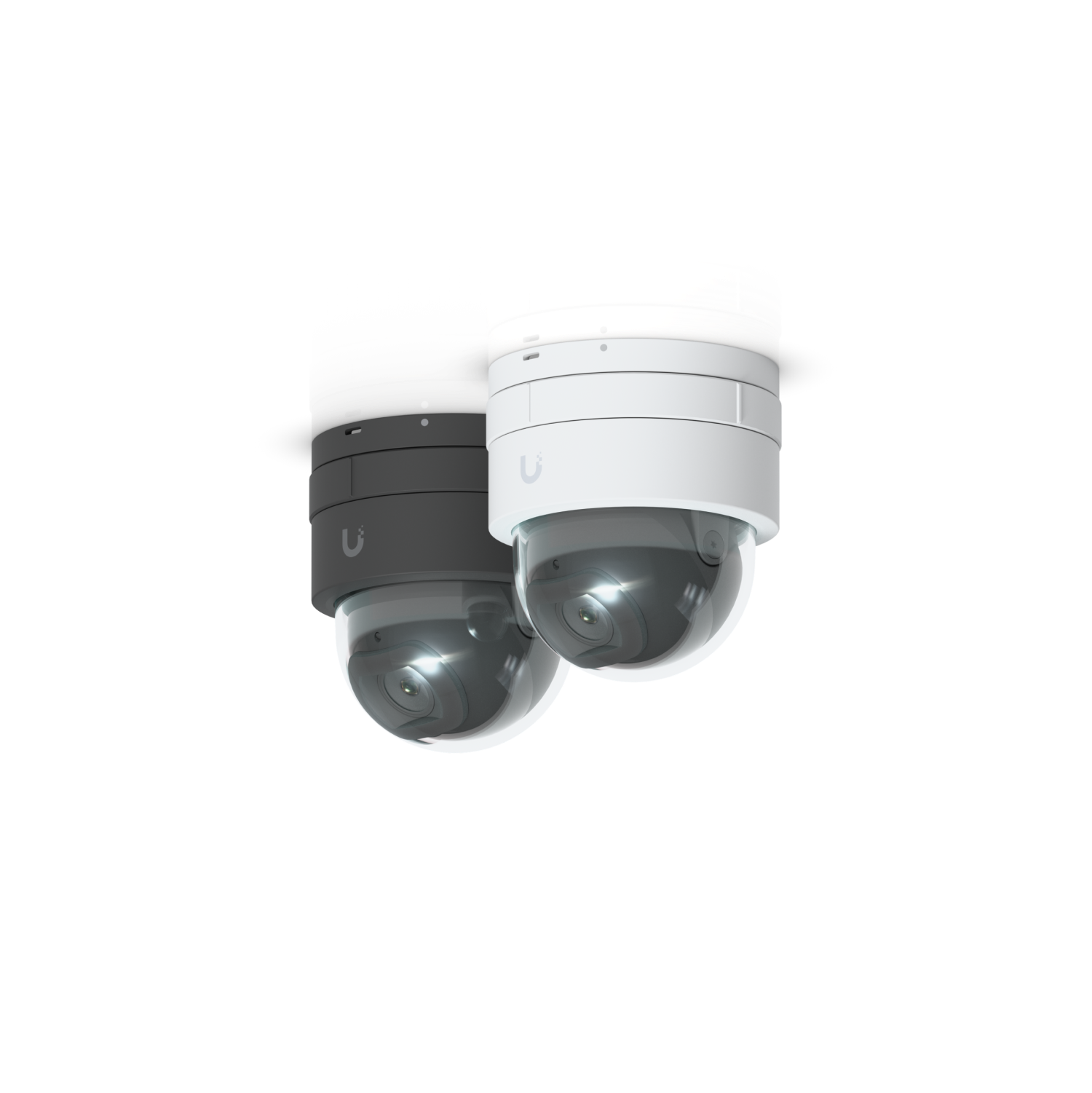

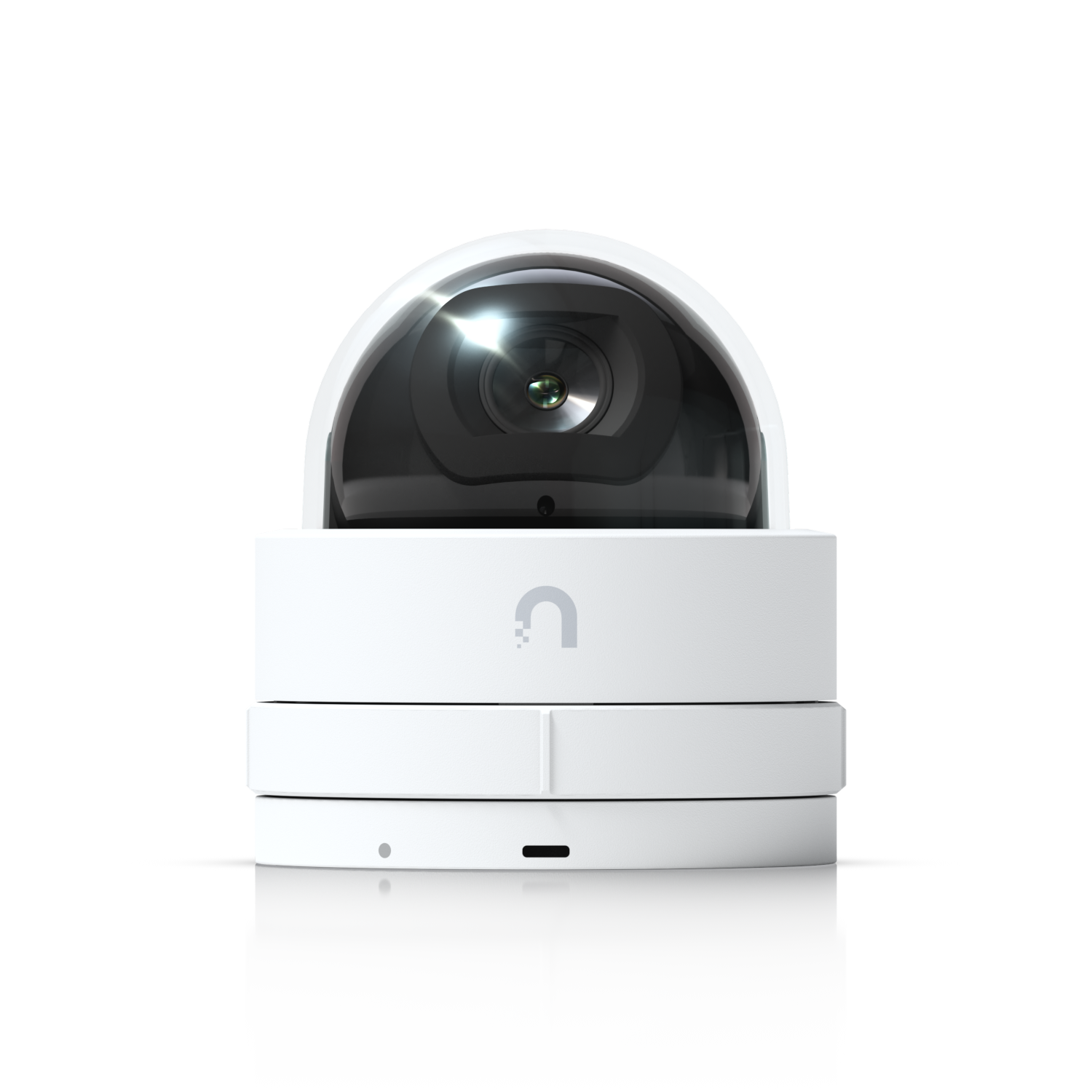

UniFi Protect G5 Dome Ultra UVC-G5-DOME-ULTRA
Discreet, capable, and remarkably small, the UniFi Protect G5 Dome Ultra packs 2K HD surveillance into an ultra-compact enclosure that blends seamlessly into any ceiling. Its low-profile dome design is vandal-resistant and harder to tamper with than bullet cameras, making it ideal for offices, retail floors, hallways, and reception areas where a subtle footprint matters.
Despite its size, it doesn’t compromise on image quality. The G5 Dome Ultra captures 4MP (2688 × 1512) video at 30 FPS from a 1/2.4″ CMOS sensor, delivering sharp, detailed footage with the clarity needed for retroactive zoom during incident review.
Wide coverage from a compact body
A broad field of view horizontal 102.4°, vertical 54.9°, diagonal 120.6° lets a single Dome Ultra cover an entire room or entrance from one ceiling mount, reducing the number of cameras you need across a space.
Reliable night vision
An integrated IR LED with an automatic IR-cut filter enables sharp, reliable night vision in low-light or complete darkness without user intervention, with a range of 20 m (65 ft) well-suited to entrance vestibules, corridors, and enclosed indoor spaces.
Smart AI detections
Beyond simple recording, the Dome Ultra supports smart detections for people, vehicles, and animals, helping you filter meaningful events and respond faster within UniFi Protect.
Simple, flexible installation

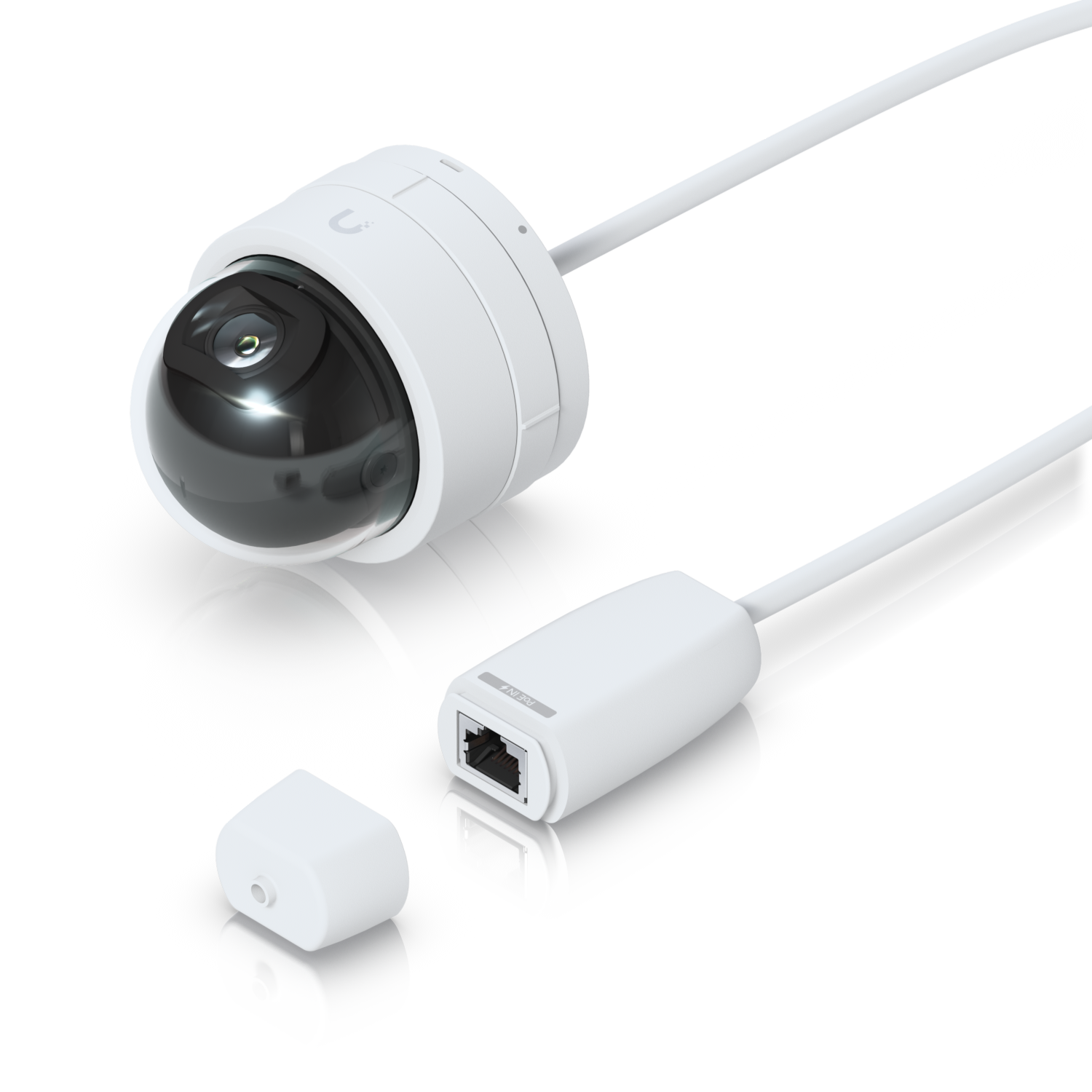

Each camera connects over a single cable via its 10/100 MbE RJ45 PoE port, and ships with a surface mount included. Optional junction box and Ultra Flush mounts give you clean, professional installation options for any environment.
Key features
- Ultra-compact dome — Discreet, low-profile design that blends into ceilings
- 2K (4MP) resolution — 2688 × 1512 at 30 FPS from a 1/2.4″ CMOS sensor
- Wide field of view — 102.4° horizontal coverage
- IR night vision — Up to 20 m (65 ft) with automatic IR-cut filter
- Smart AI detections — People, vehicles, and animals
- Tamper-resistant — IK06-rated enclosure
- Single-cable PoE — Fast, tidy installation
- Flexible mounting — Surface mount included; junction box and Ultra Flush mounts optional
Technical specifications
- Resolution: 4MP 2688 × 1512 (16:9), 30 FPS
- Sensor: 1/2.4″ CMOS
- Field of view: H: 102.4°, V: 54.9°, D: 120.6°
- IR night vision: 20 m (65 ft)
- Tamper resistance: IK06
- Dimensions: ⌀63.6 x 68.2 mm (⌀2.5 x 2.7″)
- Networking: 10/100 MbE RJ45 port (PoE)
- Image settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
- Mounting: Surface mount (included); junction box, Ultra Flush mount (optional)
