UA-G3-SK-GATE

UniFi G3 Gate Starter Kit UA-G3-SK-GATE

Bring smart, modern access control to your gate with the UniFi G3 Gate Starter Kit a complete, all-in-one solution for managing a single gate plus an auxiliary side door. This starter kit provides a comprehensive and secure solution for managing access at a single gate and an additional side door, complete with support for modern entry methods like Apple Wallet Touch Pass. PC Ideals Store

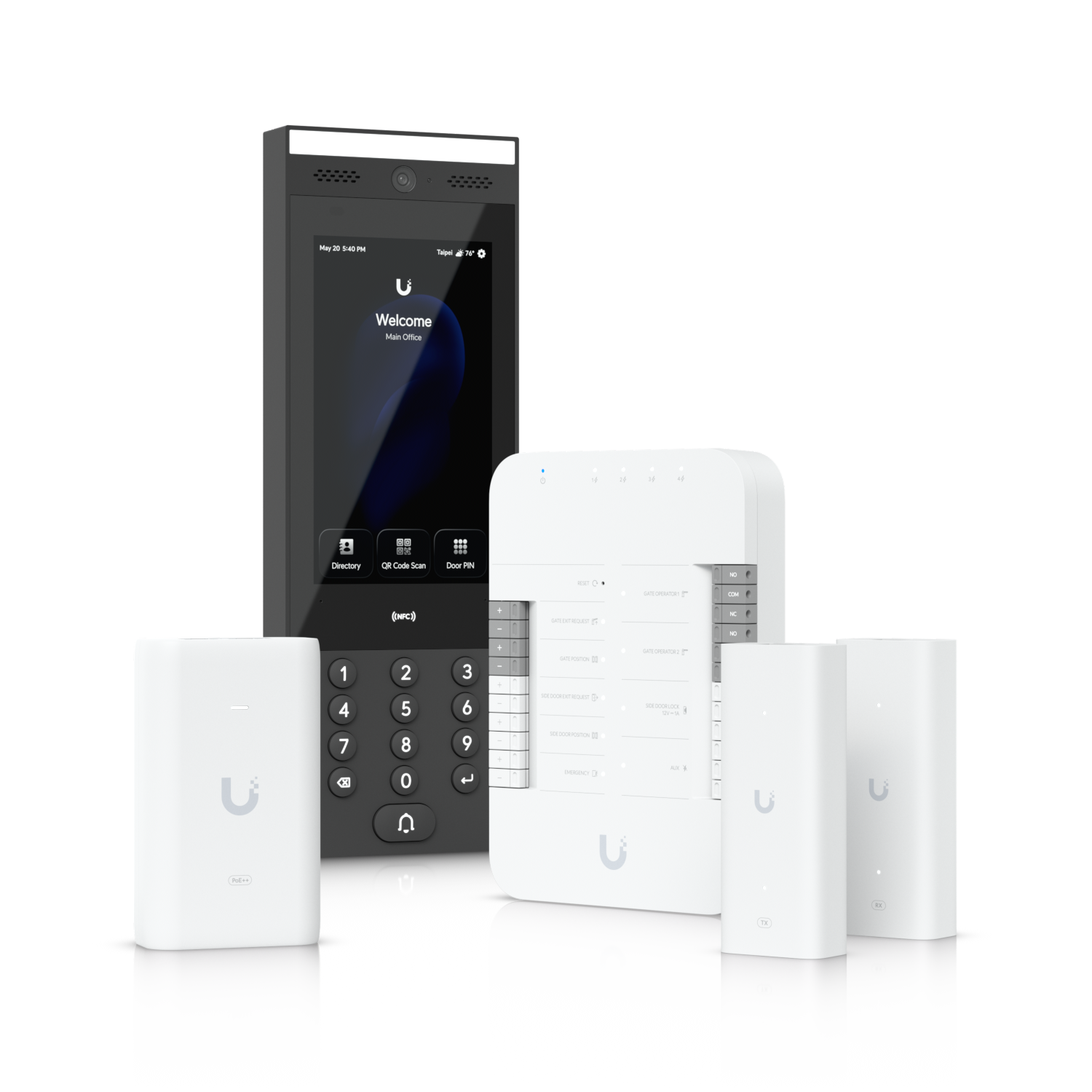

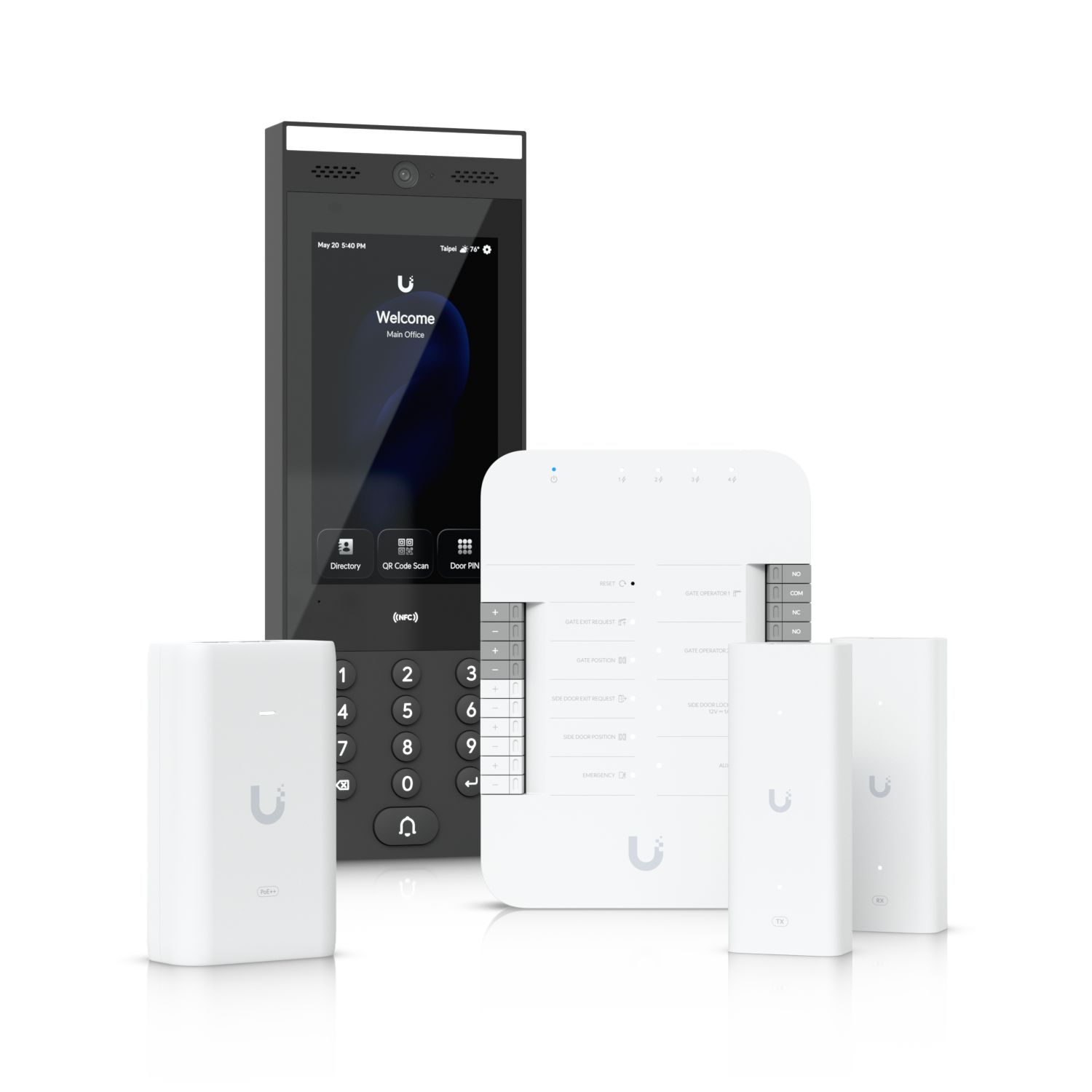

Everything you need for a robust, professional-grade gate deployment comes in the box. The kit includes a UniFi Access Gate Hub, a UniFi Access G3 Intercom, a UniFi PoE++ Adapter, and two 2-Wire PoE Extenders for gate, side door, and emergency access control and it can be used for LPR (license plate recognition) when paired with select UniFi cameras. FlytecFlytec

Complete gate + side door control

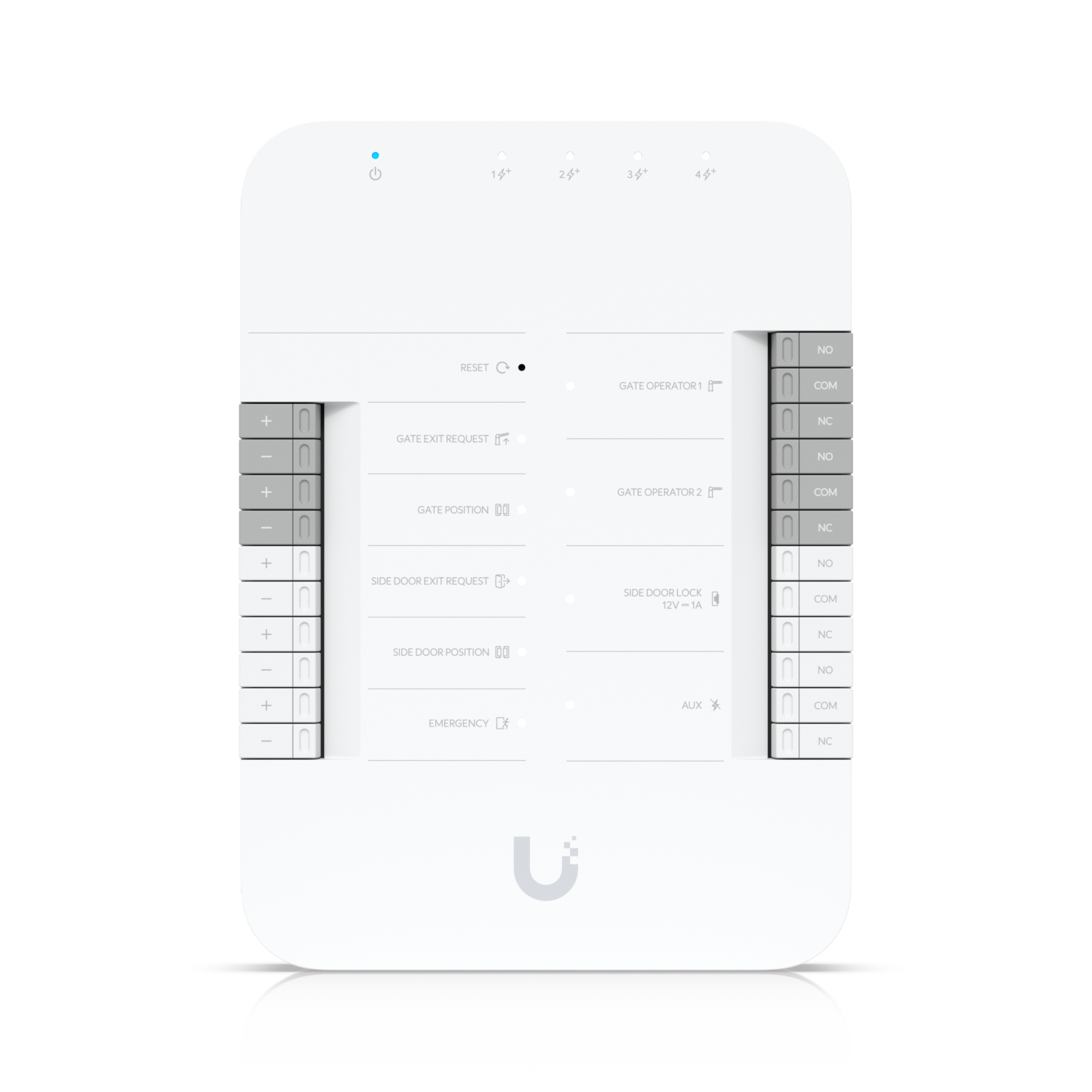

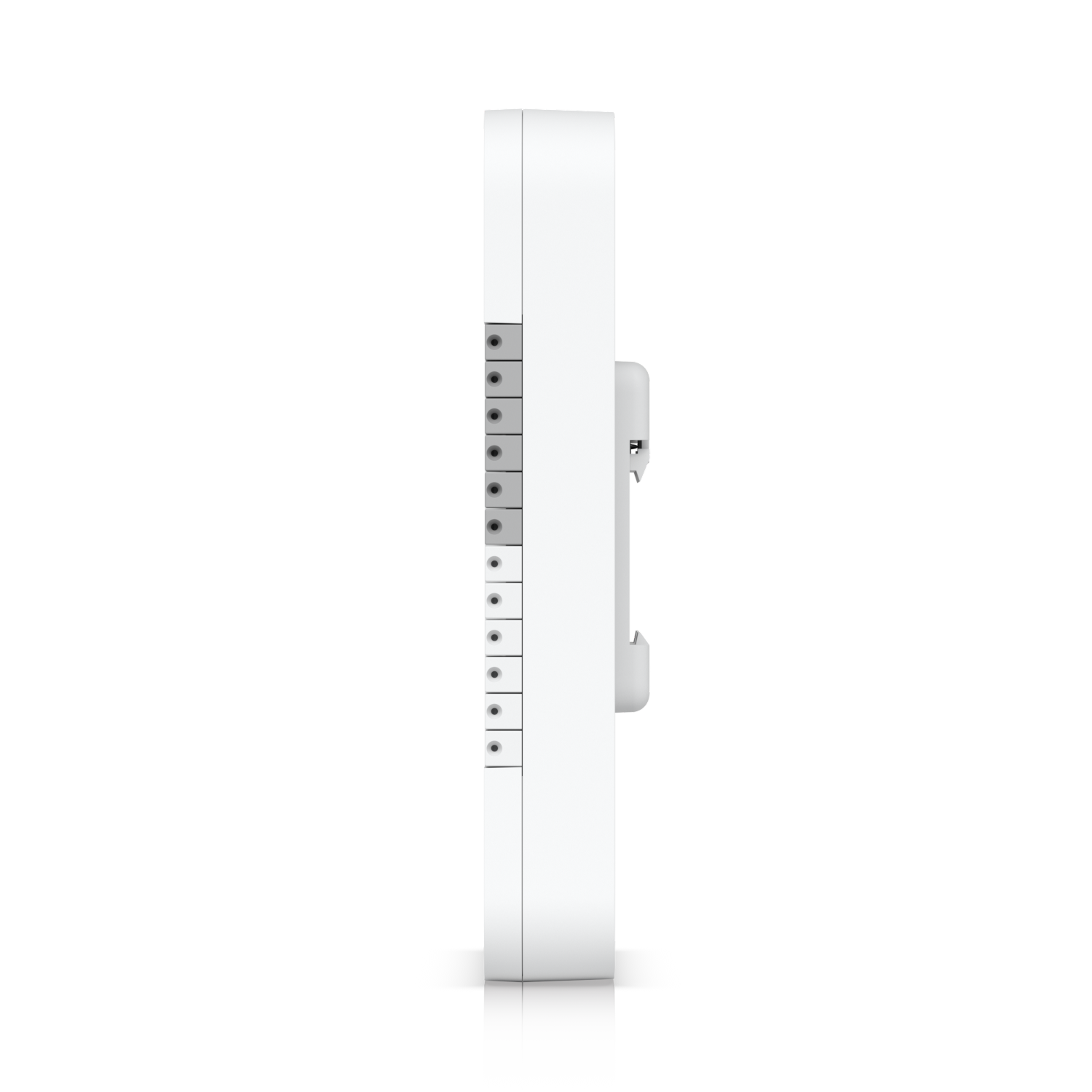

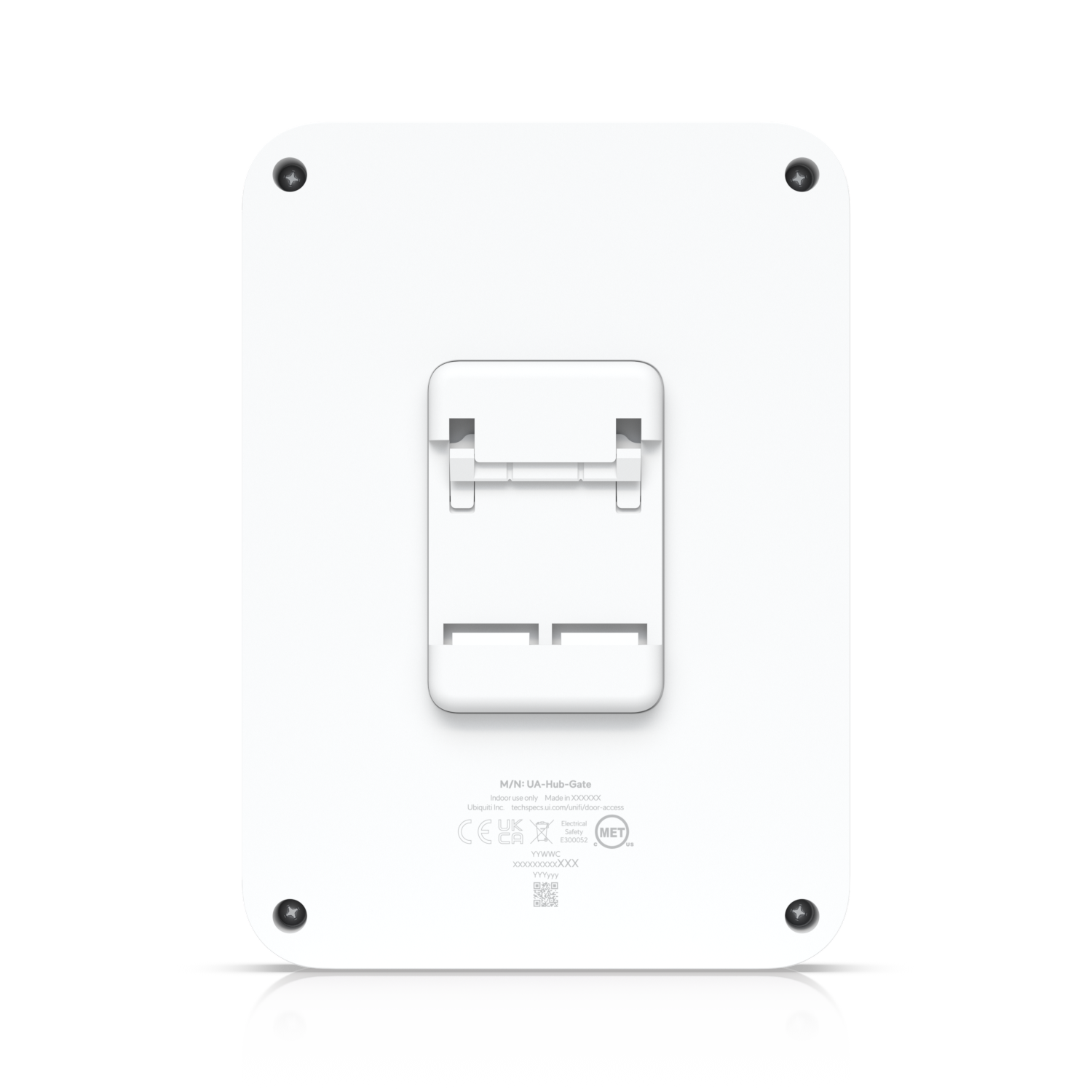

At the heart of the kit, the Gate Hub serves as the central controller for entry and exit. It supports 1 gate and 1 side door, up to 6,000 users, with input terminals for gate exit request, gate position, side door exit, side door position, and emergency. It’s DIN-rail mountable and includes an emergency input plus an AUX relay to connect an external siren. UbiquitiBaltic Networks

Feature-packed G3 Intercom

The included G3 Intercom transforms how visitors request and gain entry. It supports NFC card & keyfob access, PIN access, Apple/Google Wallet, and Mobile Unlock, with two-way audio communication and doorbell functionality. It also features an integrated camera, microphone, LED floodlight, and ambient and proximity sensors, all viewed on a 177 mm (7″) diagonal capacitive multi-touch display (1024 x 600 px) with up to 1000 nits of luminance. PC Ideals Store + 2

Flexible power and cabling

The included PoE++ Adapter delivers up to 60W of power to PoE++ devices, reducing reliance on PoE switches, while the two 2-wire retrofit extenders provide PoE++ over twisted pair for flexible cabling — perfect for retrofit scenarios that reuse existing wiring. PC Ideals Store

Built for the outdoors

IP65 weatherproofing allows both indoor and outdoor use, with a durable aluminum alloy, UV-stabilized polycarbonate, and glass enclosure. A Level 1 UL 294 rating means the intercom is resistant to destructive attacks with strong endurance, line security, and standby power. PC Ideals StoreAOMEI

Key features

• Complete gate kit — Gate Hub, G3 Intercom, PoE++ adapter, and 2× 2-wire extenders
• Gate + side door + emergency control — Up to 6,000 users
• Multiple unlock methods — NFC, PIN, mobile, QR code, and Apple/Google Wallet Touch Pass
• 7″ touchscreen intercom — With integrated camera, two-way audio, and doorbell
• LPR-ready — License plate recognition with select UniFi cameras
• 60W PoE++ adapter — Powers the hub and downstream devices
• Retrofit-friendly — 2-wire PoE++ extenders for existing cabling
• All-weather — IP65-rated intercom, UL 294 Level I
• 10 free Touch Passes — Includes 10 free 1-year Touch Passes Ubiquiti

Technical specifications

• In the box: (1) Gate Hub, (1) G3 Intercom, (1) PoE++ adapter, (2) 2-wire retrofit extenders Ubiquiti
• Supported doors: 1 gate, 1 side door Ubiquiti
• Maximum users: 6,000 Ubiquiti
• Gate Hub input terminals: gate exit request, gate position, side door exit, side door position, emergency Baltic Networks
• Gate Hub relays: 2× operator (30V DC, 1A), 1× AUX (30V DC, 1A), 1× powered side door lock (12V DC, 1A) Baltic Networks
• Gate Hub dimensions: 175 x 126 x 26 mm (6.9 x 5 x 1″) Ubiquiti
• Intercom display: 177 mm (7″) capacitive multi-touch, 1024 x 600 px, up to 1000 nits PC Ideals Store
• Intercom connectivity: GbE RJ45 port, BLE 4.2, NFC Baltic Networks
• Intercom weatherproofing: IP65 (outdoor exposed, 30°C to 60°C) Baltic Networks
• Retrofit extender: PoE in 1× PoE++ (50V DC, 1.2A); PoE out 1× PoE+ (48V DC, 0.6A) Baltic Networks
• Power method: PoE++
• Certification: UL 294 Level I
