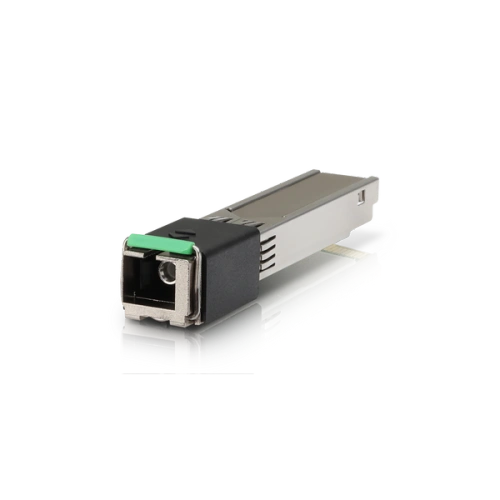

Ubiquiti UFiber Instant GPON Optical Network Unit – SFP-Format Fibre CPE

Skip the desktop ONT box entirely. The Ubiquiti UFiber Instant is a complete GPON Optical Network Unit built into a standard SFP module it plugs straight into the SFP port of your router or switch and terminates your fibre connection right there. One less device, one less power supply, one less point of failure.

Delivering 2.488 Gbps downstream and 1.244 Gbps upstream over GPON links up to 20 km, the UFiber Instant is ideal for ISPs, fibre network operators, and advanced users who want to connect UniFi, EdgeMAX, or third-party hardware directly to a GPON network.

Key Features of the Ubiquiti UFiber Instant

1. A Full GPON ONU in an SFP Module

Traditional GPON installations need a separate ONT sitting between the fibre and your router. The UFiber Instant eliminates it. The entire ONU optics, GPON processing, and management lives inside a compact, hot-swappable SFP module that slots into any compatible SFP port. Fewer boxes on the wall, cleaner installs, and simpler truck rolls for ISPs.

2. GPON-Standard Speeds: 2.488 Gbps Down / 1.244 Gbps Up

Built on the GPON standard (ITU-T G.984), the UFiber Instant handles:

• 2.488 Gbps downstream – smooth 4K streaming, large file transfers, and multi-user households or offices.
• 1.244 Gbps upstream – reliable performance for video calls, VoIP, cloud backups, and hosting.
• 1 Gbps Ethernet interface to the host device – full gigabit throughput to your router or switch.

3. Long-Reach 20 km GPON Link Support

The UFiber Instant supports optical links up to 20 km from the OLT, giving fibre operators genuine deployment flexibility from dense urban builds to rural connections where subscribers sit a long way from the exchange or cabinet.

4. SC/APC Connector for Low-Loss Fibre Termination

The fibre side uses the industry-standard SC/APC connector the same angled-polish connector used across GPON networks worldwide. APC termination minimises back-reflection for a cleaner optical signal and stable performance on long runs.

5. Simple Management and Provisioning

The UFiber Instant supports Layer 2 transport with VLAN handling, and can be provisioned and monitored through its built-in management interface making bulk ISP deployments straightforward. Pair it with Ubiquiti’s UFiber OLT range for an end-to-end managed GPON network, or use it with third-party OLTs where supported.

6. Tiny Footprint, Minimal Power Draw

Because the whole unit fits in an SFP cage, there’s no wall adapter, no extra cabling, and near-zero added power consumption compared with a standalone ONT a meaningful saving multiplied across hundreds of subscriber installs.

Benefits at a Glance

✔ Replaces a separate ONT fibre terminates directly in your router or switch. ✔ True GPON performance – 2.488 Gbps downstream / 1.244 Gbps upstream. ✔ 20 km optical reach – suits urban and rural deployments alike. ✔ Hot-swappable SFP format – install or replace without network downtime. ✔ Ecosystem-friendly – works with UFiber OLTs, EdgeMAX, and UniFi hardware with SFP ports.

Ideal Use Cases

• ISPs and fibre operators – simplify subscriber CPE, cut hardware cost per install, and reduce support callouts.
• Home users on GPON fibre – connect a capable router directly to the fibre network and remove the ISP-supplied ONT box (where your provider permits BYO ONU).
• Small business networks – cleaner comms cabinets with one fewer powered device to fail.
• Multi-site and rural links – 20 km reach covers long last-mile runs without repeaters.

The Bottom Line

The Ubiquiti UFiber Instant packs a full GPON ONU into the smallest form factor possible. For network operators, it means cheaper, faster, tidier subscriber installs. For advanced users, it means fibre straight into your own hardware with nothing in between. If you’re building or connecting to a GPON network, this is the simplest CPE you can deploy.
