USW-PRO-XG-10-POE

Ubiquiti USW-Pro-XG-10-PoE | 10-Port 10GbE Layer 3 PoE++ Switch · 2× 10G SFP+

Ten ports of full 10GbE copper with 400W of PoE++ to power them

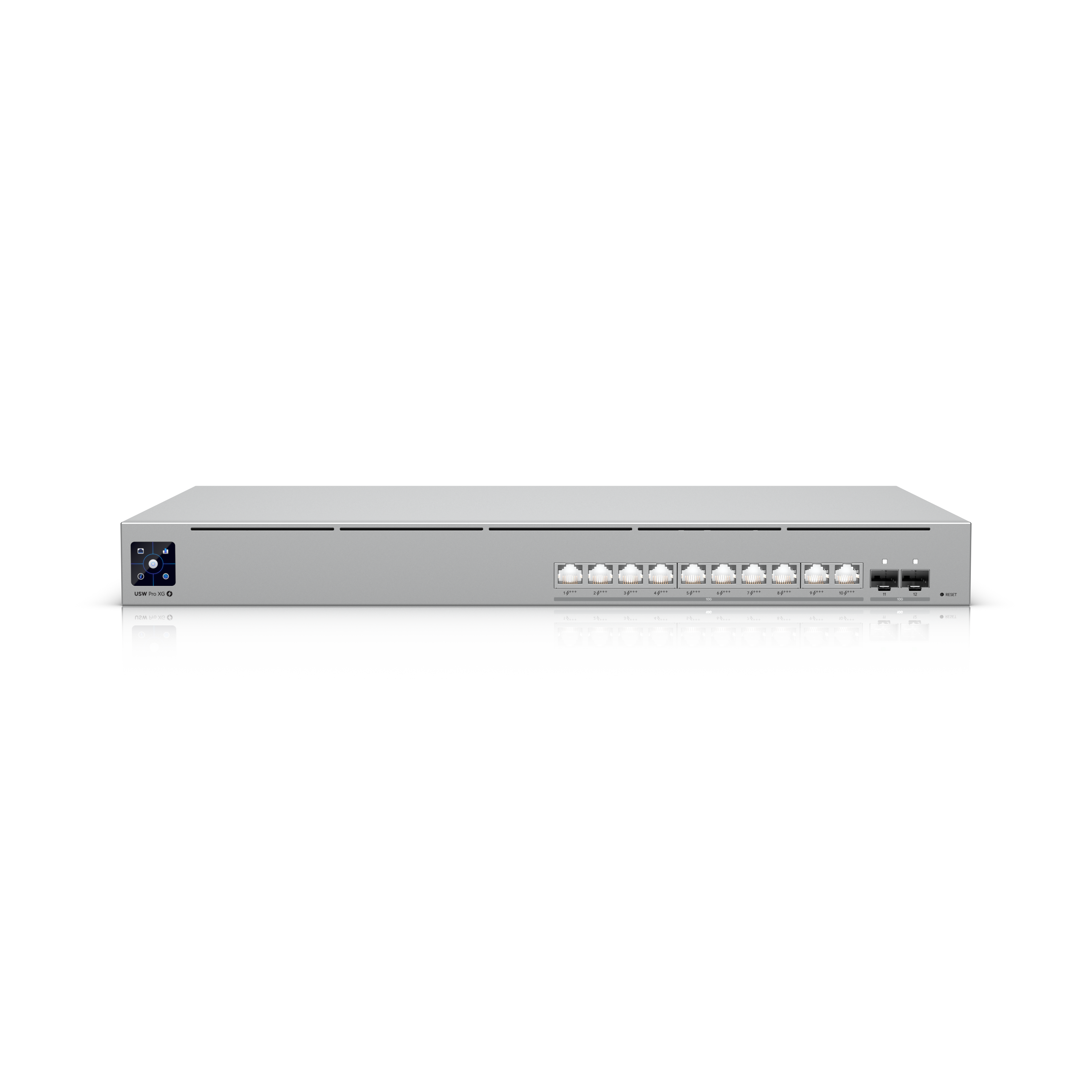

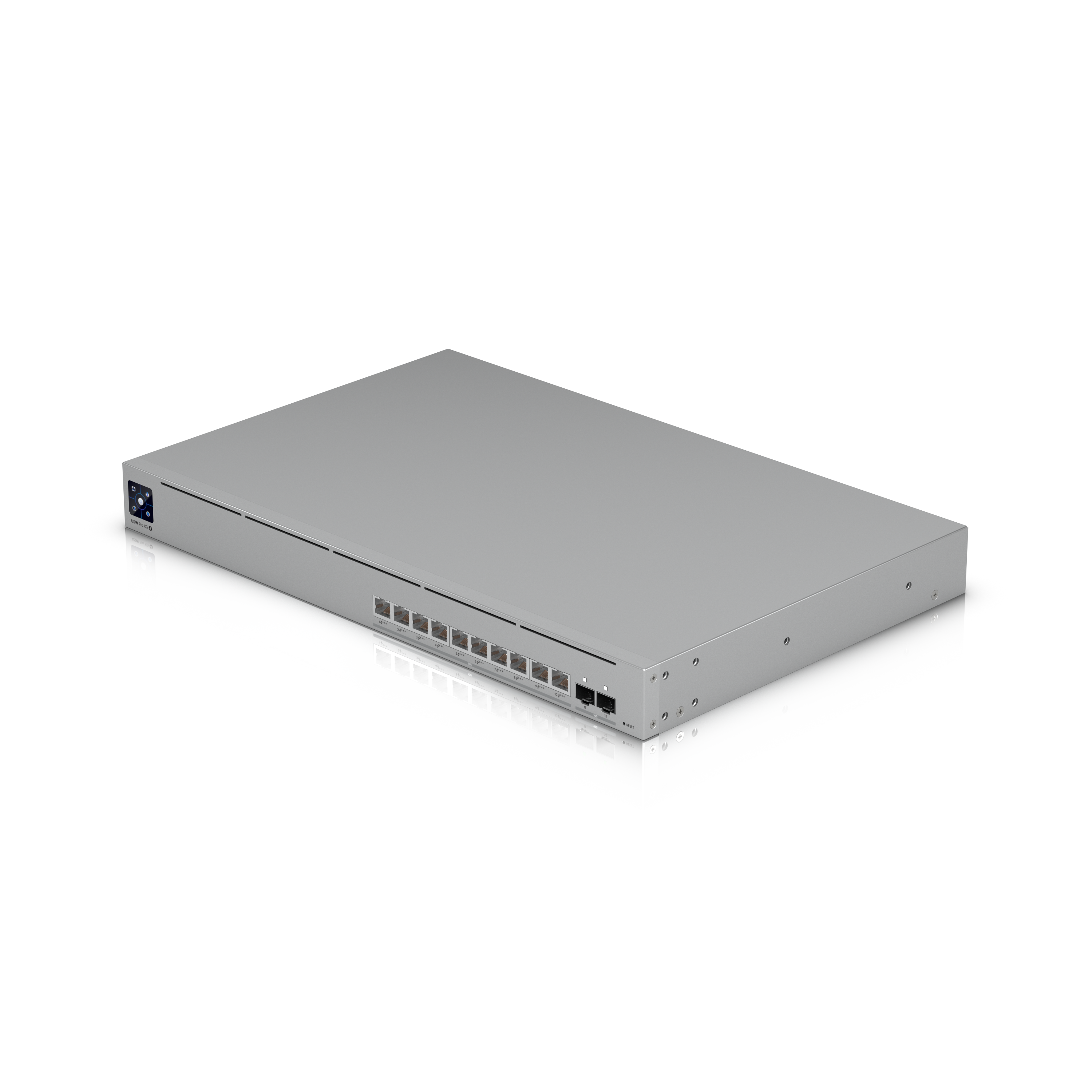

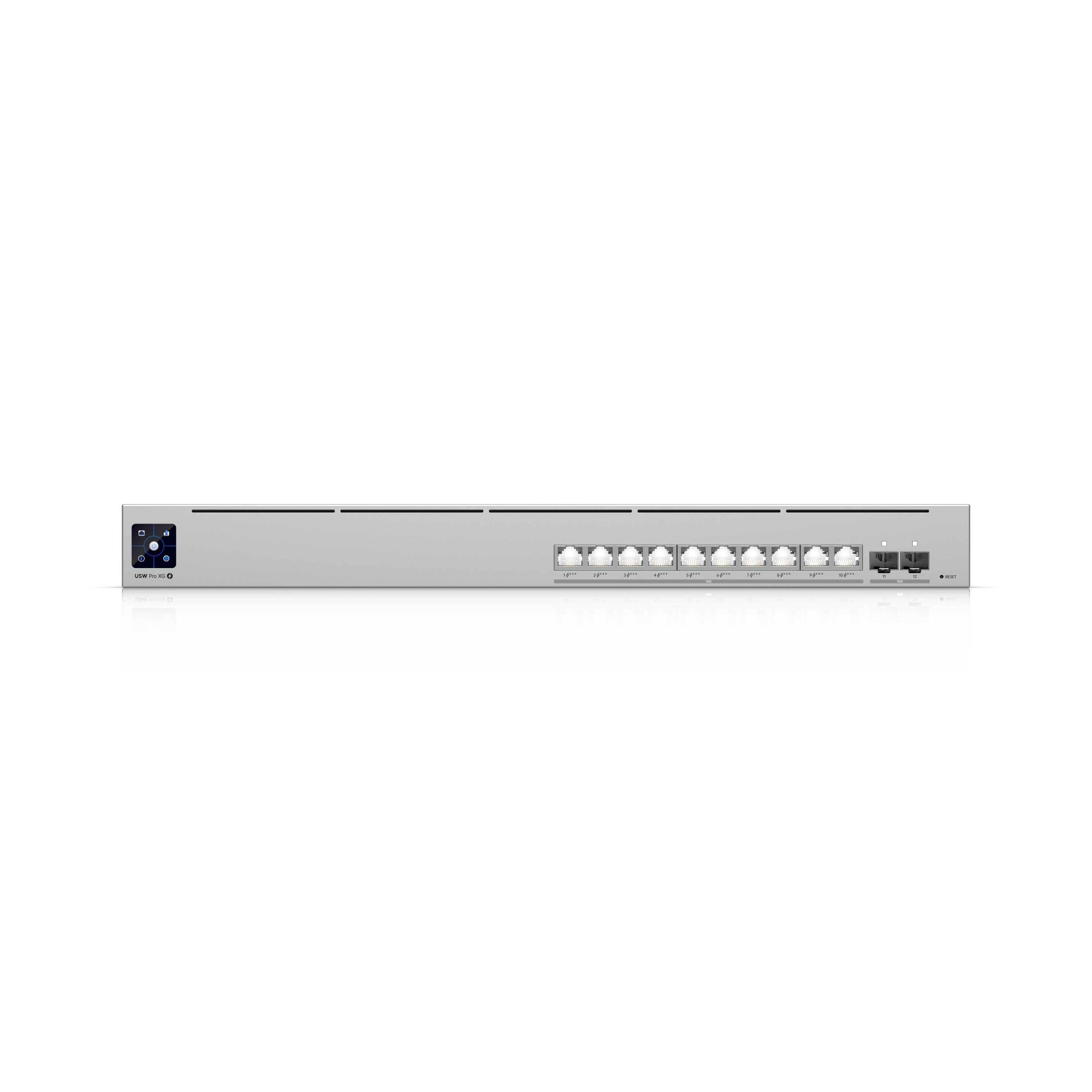

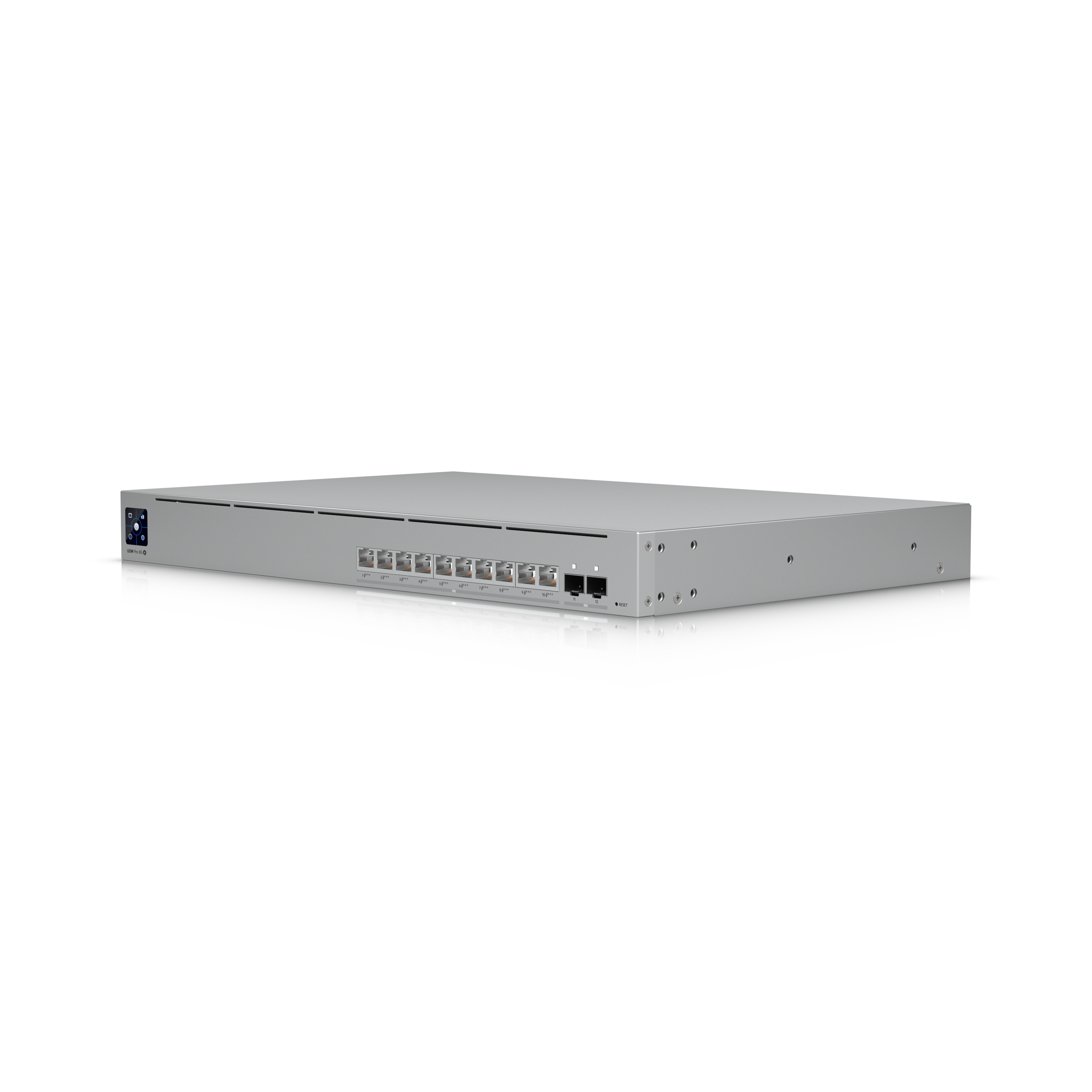

The UniFi Switch Pro XG 10 PoE is Ubiquiti’s high-performance access switch for networks moving to 10-gigabit copper. Every one of its ten RJ45 ports runs at full 10GbE and delivers PoE++, backed by a 400W total power budget enough to run WiFi 7 access points, high-resolution cameras, and VoIP systems while feeding them multi-gig bandwidth. Add two 10G SFP+ uplinks, Layer 3 routing, and a 240 Gbps switching capacity, and it’s a professional-grade core for demanding installations.

For networks where WiFi 6E/7 APs, high-speed workstations, and direct-attached storage are pushing past gigabit, the USW-Pro-XG-10-PoE delivers 10GbE to the edge without moving to fibre.

10× 10GbE RJ45 ports all PoE++

Every RJ45 port is multi-speed 10GbE (100M / 1G / 2.5G / 5G / 10G) with PoE++ (802.3bt) support, delivering up to 90W per port for the most demanding powered devices. That combination full 10-gigabit copper and high-power PoE on every port is what sets this switch apart. You can power and feed a WiFi 7 access point, a 10G workstation, or a PoE camera from any port without compromise.

400W total PoE budget

The switch supplies a 400W total PoE budget across its ports enough to run a realistic mix of high-power devices simultaneously: multiple WiFi 6E/7 APs, IP cameras, VoIP phones, and other PoE++ gear. It comfortably powers a modern access layer from a single unit.

2× 10G SFP+ uplinks

Two 10G SFP+ ports (10G/1G) provide fibre or DAC uplinks to your core or aggregation layer, keeping the switch’s high-bandwidth access ports from bottlenecking at the uplink. Run fibre back to the server room or link to another switch at full 10-gigabit.

Layer 3 routing built in

Unlike a basic access switch, the USW-Pro-XG-10-PoE includes Layer 3 switching:

• Inter-VLAN routing — route between network segments in hardware
• Static routing — define custom network paths
• DHCP server and relay — assign addresses directly from the switch
• Up to 1,000 VLANs and a 32,000-entry MAC table — for complex, segmented networks

That means the switch can handle routing and segmentation on its own, reducing load on your gateway and simplifying larger network designs.

High performance 240 Gbps, 179 Mpps

With a 240 Gbps switching capacity, 120 Gbps non-blocking throughput, and a 179 Mpps forwarding rate, the switch delivers low-latency, line-rate performance across all ports at once suited to storage networks, high-density AP aggregation, and demanding workstation clusters.

1.3″ touchscreen and Etherlighting

A 1.3-inch LCM touchscreen on the front panel shows real-time system information port status, throughput, and diagnostics for at-a-glance on-site checks without opening the controller. Etherlighting support provides visual port-activity indicators (Etherlighting cables sold separately) for fast, intuitive troubleshooting.

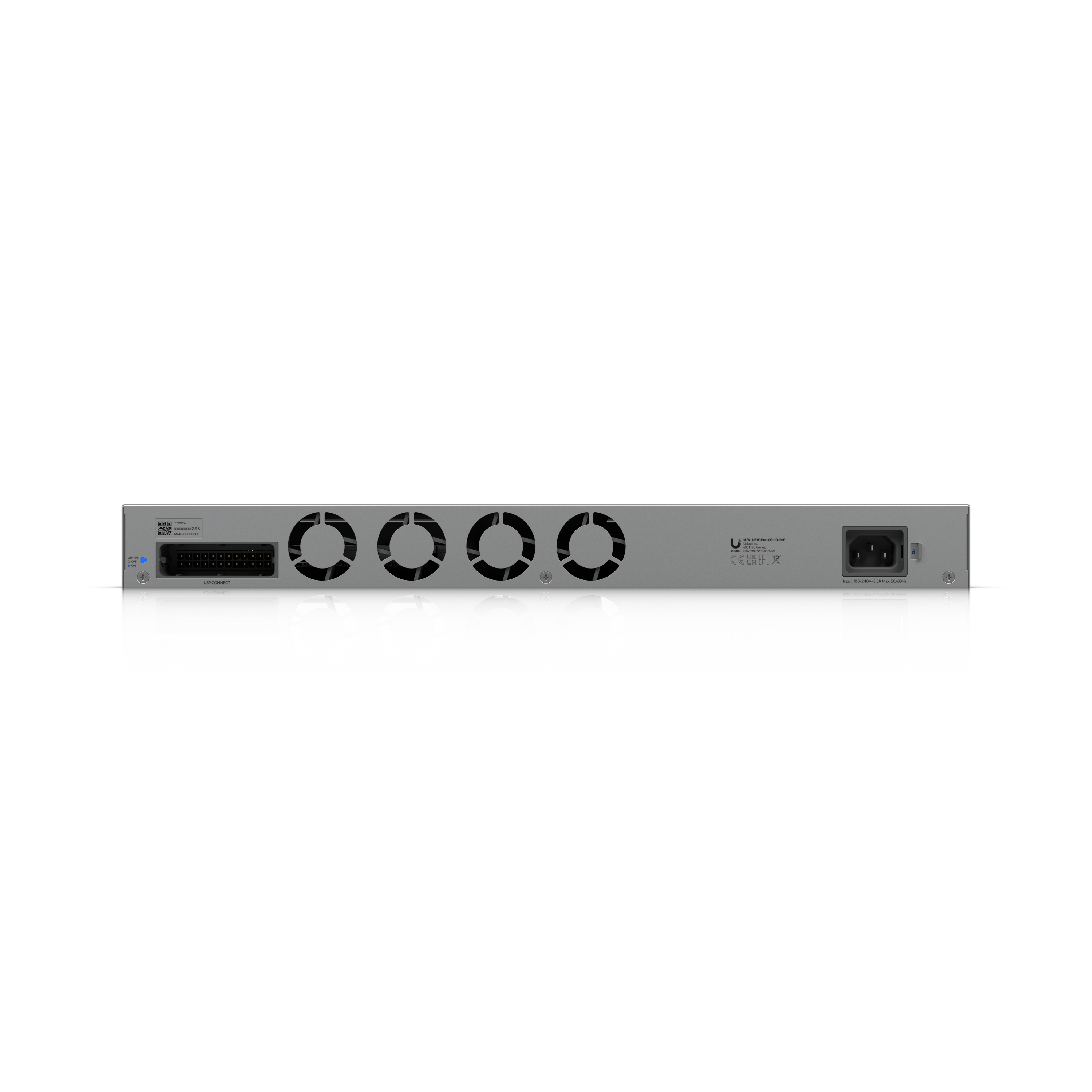

Redundant power support

The switch supports DC power backup via the UniFi SmartPower RPS (Redundant Power System, sold separately) so a power supply failure doesn’t take the network down. For business-critical installations, that redundancy matters.

Full UniFi management

Managed entirely through the UniFi Network controller configure VLANs, QoS, routing, and PoE per-port, monitor traffic, and manage it alongside every other UniFi device on your network, locally or remotely.

Specifications

Ideal for

• WiFi 6E / WiFi 7 access layers — power and feed high-bandwidth APs from one switch
• 10GbE workstation and storage networks — full 10-gigabit copper to the desk or NAS
• High-density AP aggregation — 400W PoE budget across ten 10G ports
• Layer 3 network cores — routing, VLANs, and DHCP without a separate router
• Business and commercial installations — redundant power support for uptime
• Multi-gig upgrades — bring 10GbE to the edge over existing copper, no fibre required

Why this switch?

• 10GbE + PoE++ on every port — no compromise between bandwidth and power
• 400W PoE budget — runs a full modern access layer
• Layer 3 routing — handles segmentation and routing on its own
• 240 Gbps / 179 Mpps — line-rate performance across all ports
• Touchscreen + Etherlighting — fast on-site management and troubleshooting
• RPS support — redundant power for critical networks

Browse the UniFi switching and networking range at MrTech, or get in touch and we’ll help you plan the right switch for your network.
