USL-MOTION $120.00 Save:$11.00(8%)
Description

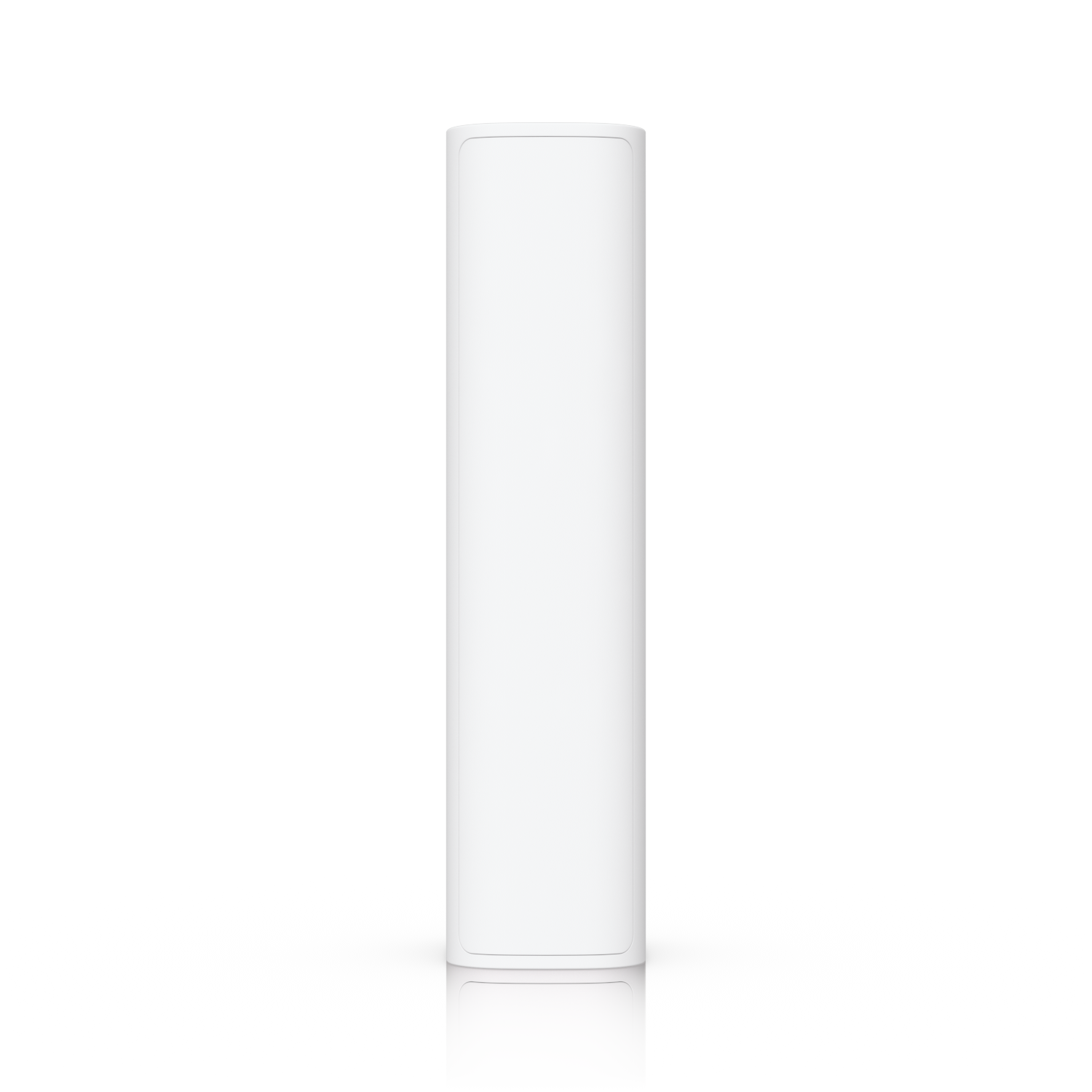

The Ubiquiti UniFi Motion Sensor (USL-Motion) is a battery-powered PIR motion sensor that reports into UniFi Protect over Ubiquiti’s SuperLink wireless link. Because it does not rely on WiFi and is rated to a maximum range of 2 km, it can be fitted in corridors, store rooms, garages, outbuildings and other spots where running cable or extending wireless coverage would be the hard part. It carries both a horizontal and a vertical PIR element, and the vertical sensor is specified with pet immunity, which helps keep false triggers down in occupied homes and offices.

Key features

  • Dual PIR sensing: horizontal detection to 1.5 m and vertical detection to 6 m
  • Vertical PIR sensor specified with pet immunity
  • SuperLink wireless with up to 2 km (1.2 mi) range, independent of WiFi coverage
  • Battery life of up to six years on a single CR123A lithium cell
  • Adhesive and screw mounting, with wall and corner mount dimensions published by Ubiquiti
  • Very low 22.6 mW maximum draw
  • Reports into UniFi Protect on web and the iOS and Android apps
  • NDAA compliant

Specifications

Model USL-Motion
Dimensions (with wall mount) 93.5 x 22.5 x 24.7 mm
Dimensions (with corner mount) 93.5 x 22.5 x 27.9 mm
Weight 45 g (1.6 oz)
Mounting Adhesive and screw mount
Horizontal PIR sensor Detection range up to 1.5 m (4.9 ft)
Vertical PIR sensor Detection range up to 6 m (19.7 ft) with pet immunity
Connectivity SuperLink (proprietary)
Operating frequency US: 915.6-927.6 MHz; EU: 865.1-869.5 MHz; JP: 920.5-922.3 MHz
Max. TX power 14 dBm
Max. range 2 km (1.2 mi)
Power method Lithium battery CR123A
Supported voltage range 3V
Max. power consumption 22.6 mW
Battery life Up to 6 years
Operating temperature 0 to 40°C (32 to 104°F)
Operating humidity 10 to 90% non-condensing
Software requirement UniFi Protect (web and iOS/Android)
Certifications FCC, IC, CE
NDAA compliant Yes

The UniFi Motion Sensor adds occupancy and intrusion triggers to a UniFi Protect site without any cabling work.
