U7-PRO-XG-WALL

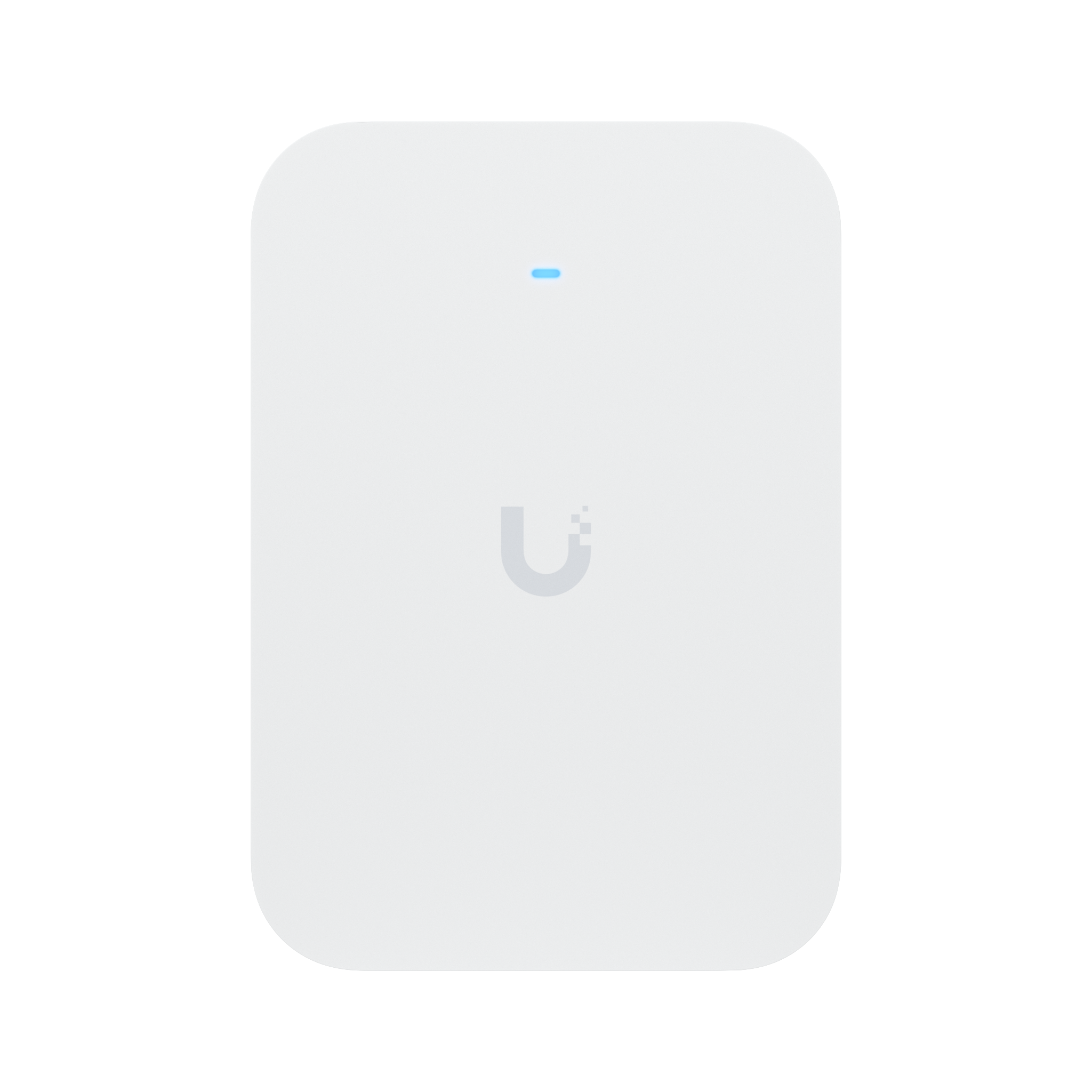

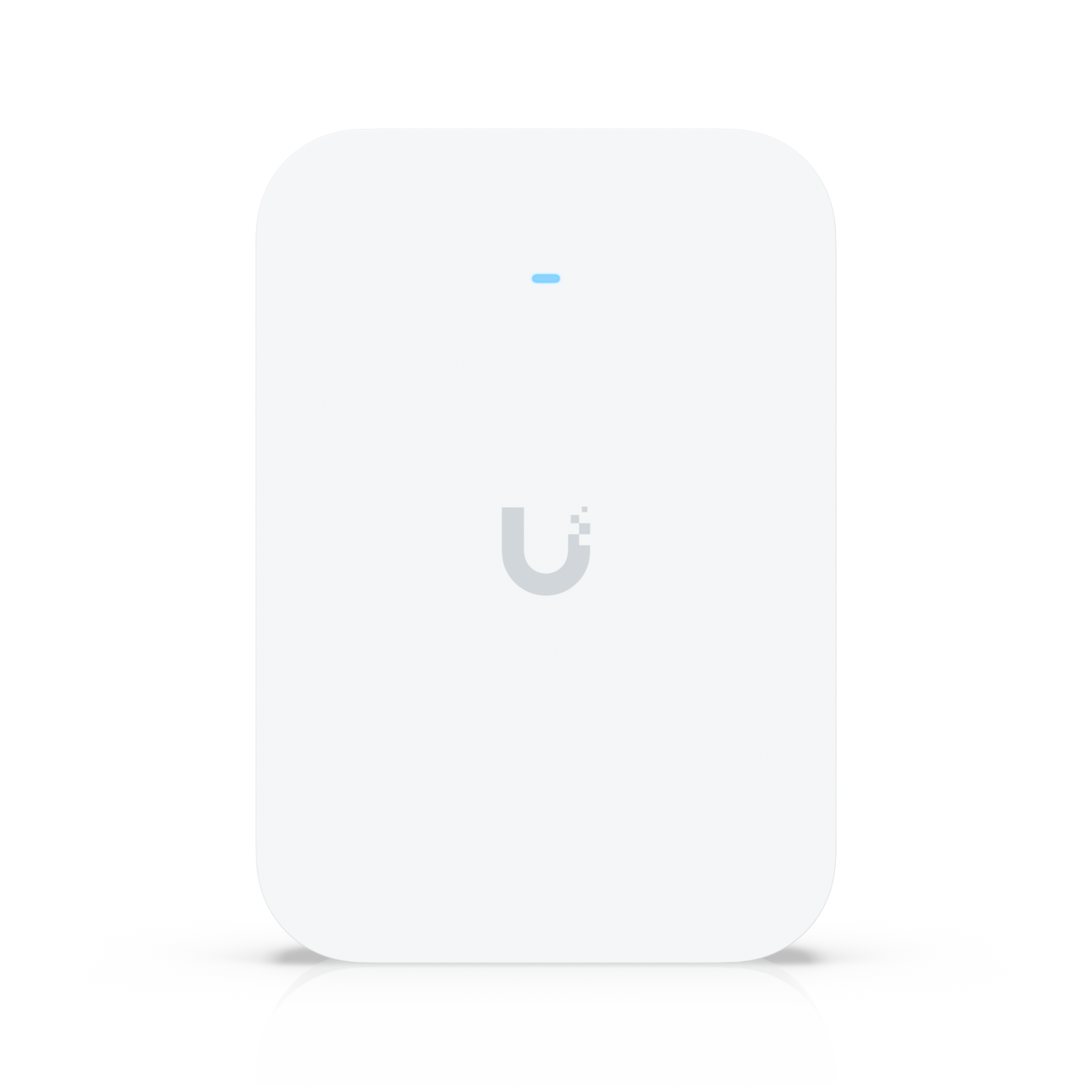

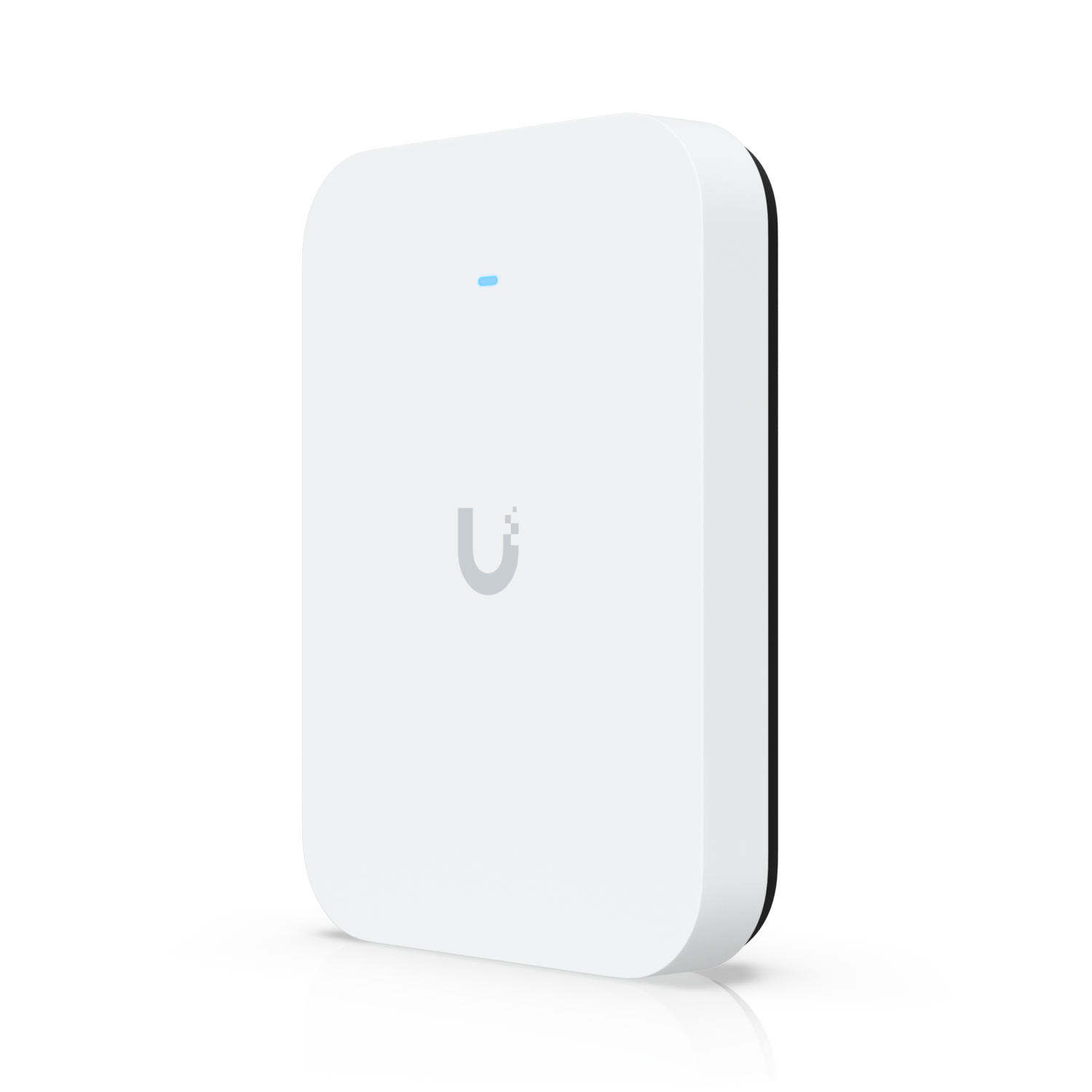

UniFi U7 Pro XG Wall U7-PRO-XG-WALL

Bring flagship WiFi 7 performance to any wall with the UniFi U7 Pro XG Wall a wall-mounted, 6 GHz-ready WiFi 7 access point with 1/2.5/5/10 GbE support. Purpose-built for high-density environments and multi-gigabit internet, it delivers fast, far-reaching tri-band coverage from a discreet, low-profile enclosure.

Supporting six spatial streams, it delivers up to 10.8 Gb/s of aggregate throughput across the 2.4, 5, and 6 GHz bands, serving over 300 simultaneously connected devices. Its standout feature is a 10GbE uplink the only UniFi wall-mount AP that can deliver full ISP speed over WiFi on 5Gbps and 10Gbps fiber plans, ensuring the access point never becomes your bottleneck.

True WiFi 7, tri-band performance

With Multi-Link Operation (MLO) combining the 2.4, 5, and 6 GHz bands into a single link for WiFi 7 clients, the U7 Pro XG Wall achieves peak data rates of 5.8 Gbps on 6 GHz (BW320), 4.3 Gbps on 5 GHz (BW240), and 688 Mbps on 2.4 GHz (BW40), with 2×2 MU-MIMO on every band.

Single-cable 10GbE deployment

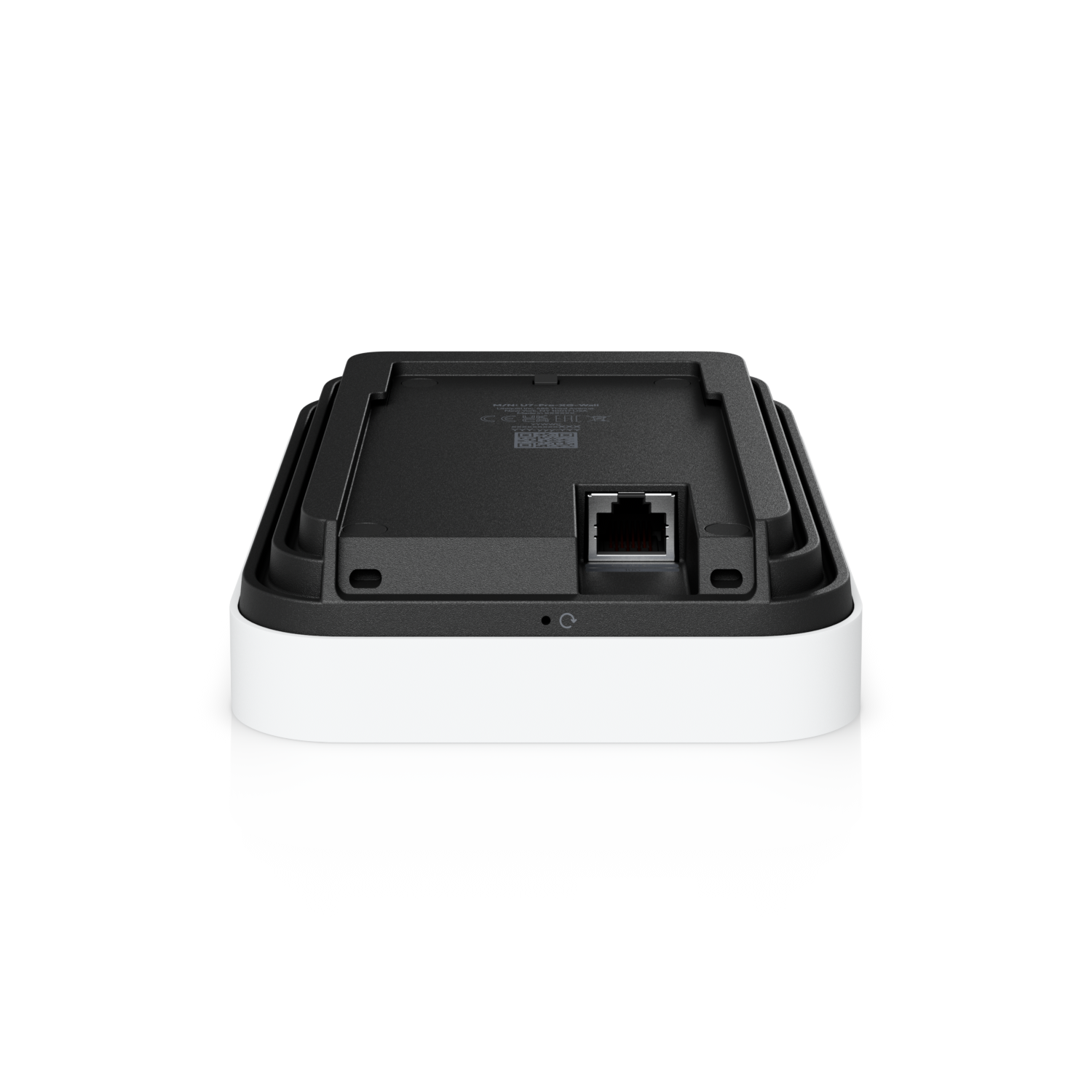

Connect it to a PoE+ compatible switch through its 10G Ethernet port to carry data and power over a single cable clean, simple installation with the headroom modern networks demand. The recessed 10GbE PoE+ port is also the only way to power the access point, keeping the wall-facing design tidy.

Key features

• WiFi 7 (802.11be) — Tri-band 2.4 / 5 / 6 GHz with 6 spatial streams
• 10 GbE PoE+ uplink — Full multi-gig backhaul for high-density and fiber deployments
• Up to 10.8 Gb/s aggregate throughput — With 300+ concurrent device support
• MLO support — Combines bands into one link for peak WiFi 7 performance
• Wide coverage — Up to 140 m² (1,500 ft²)

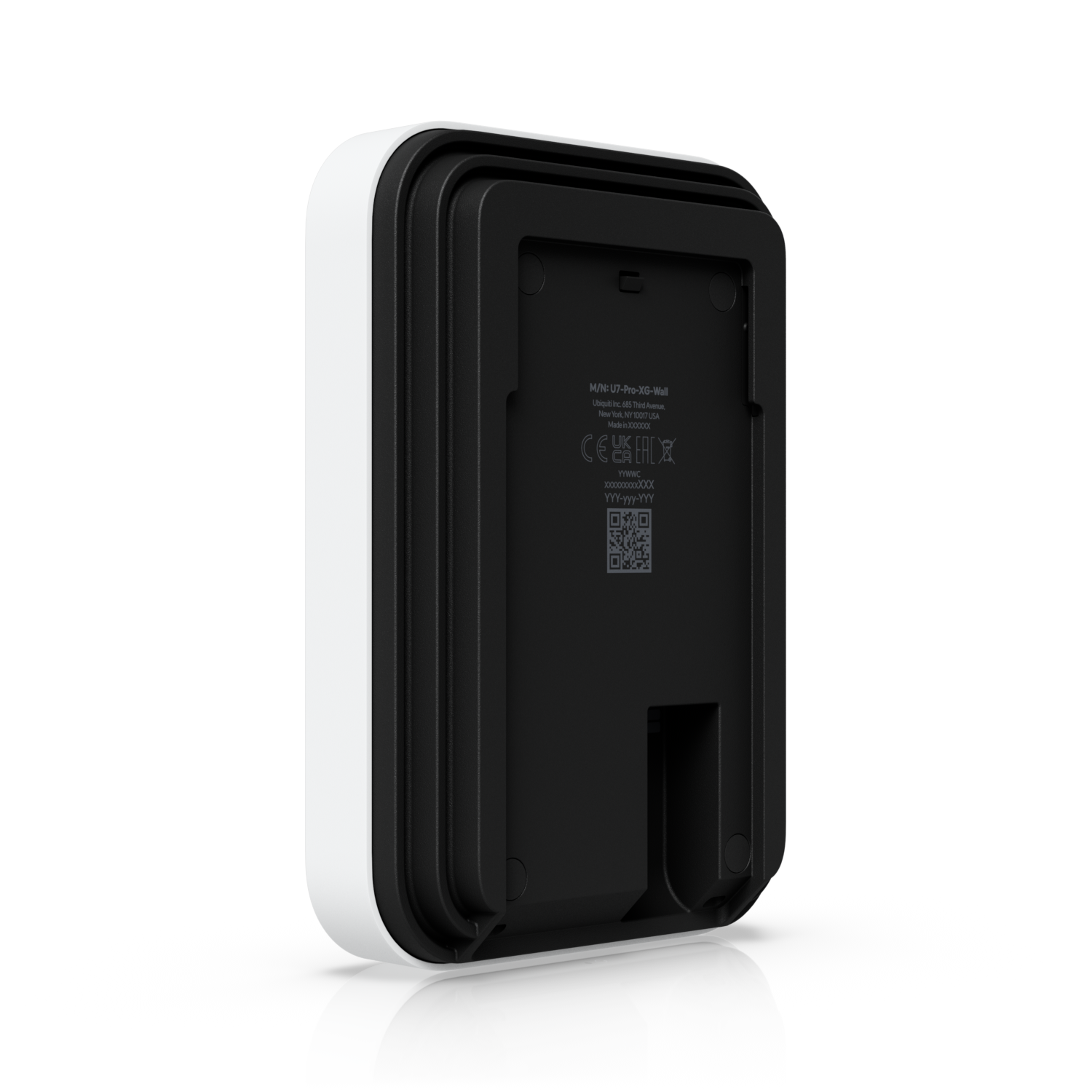

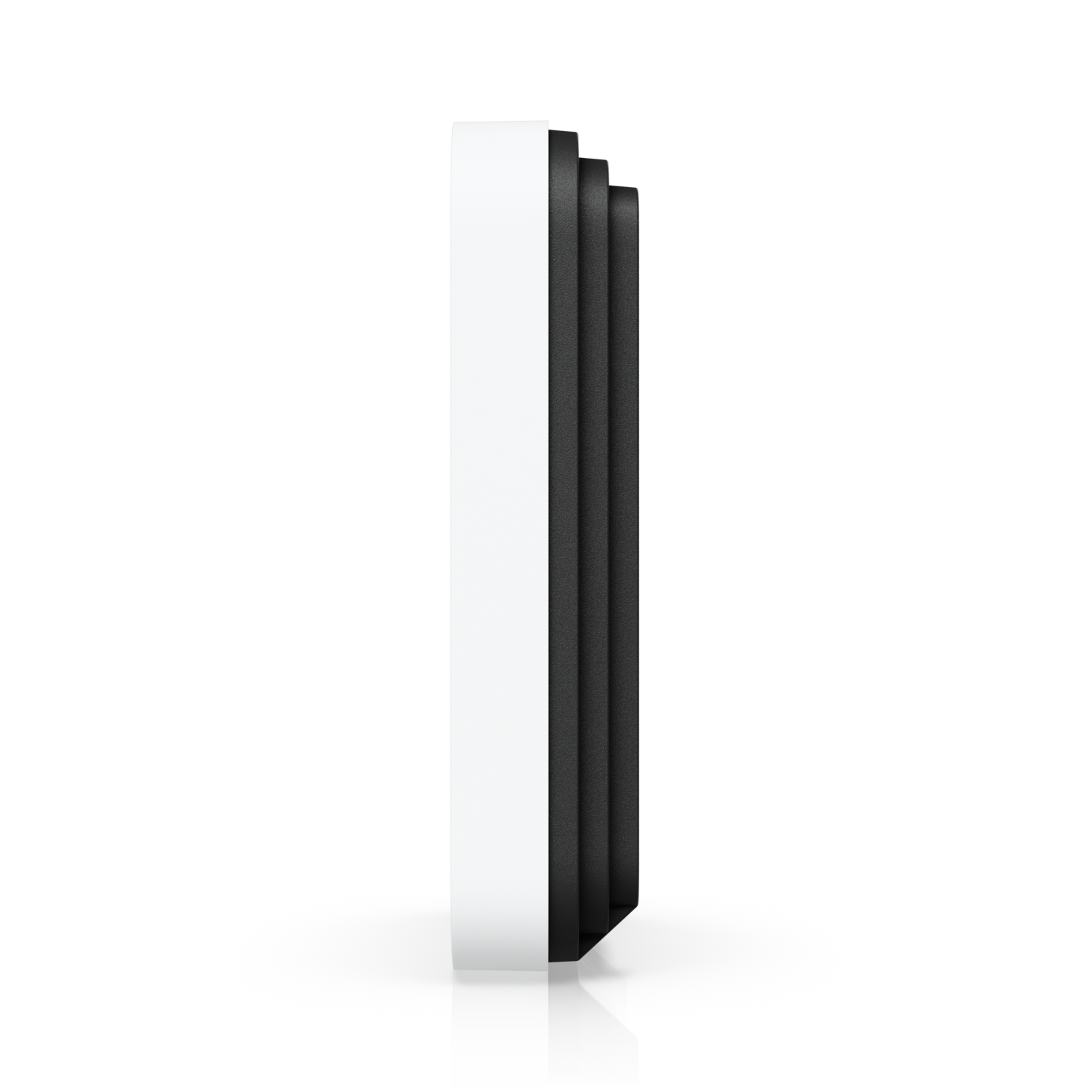

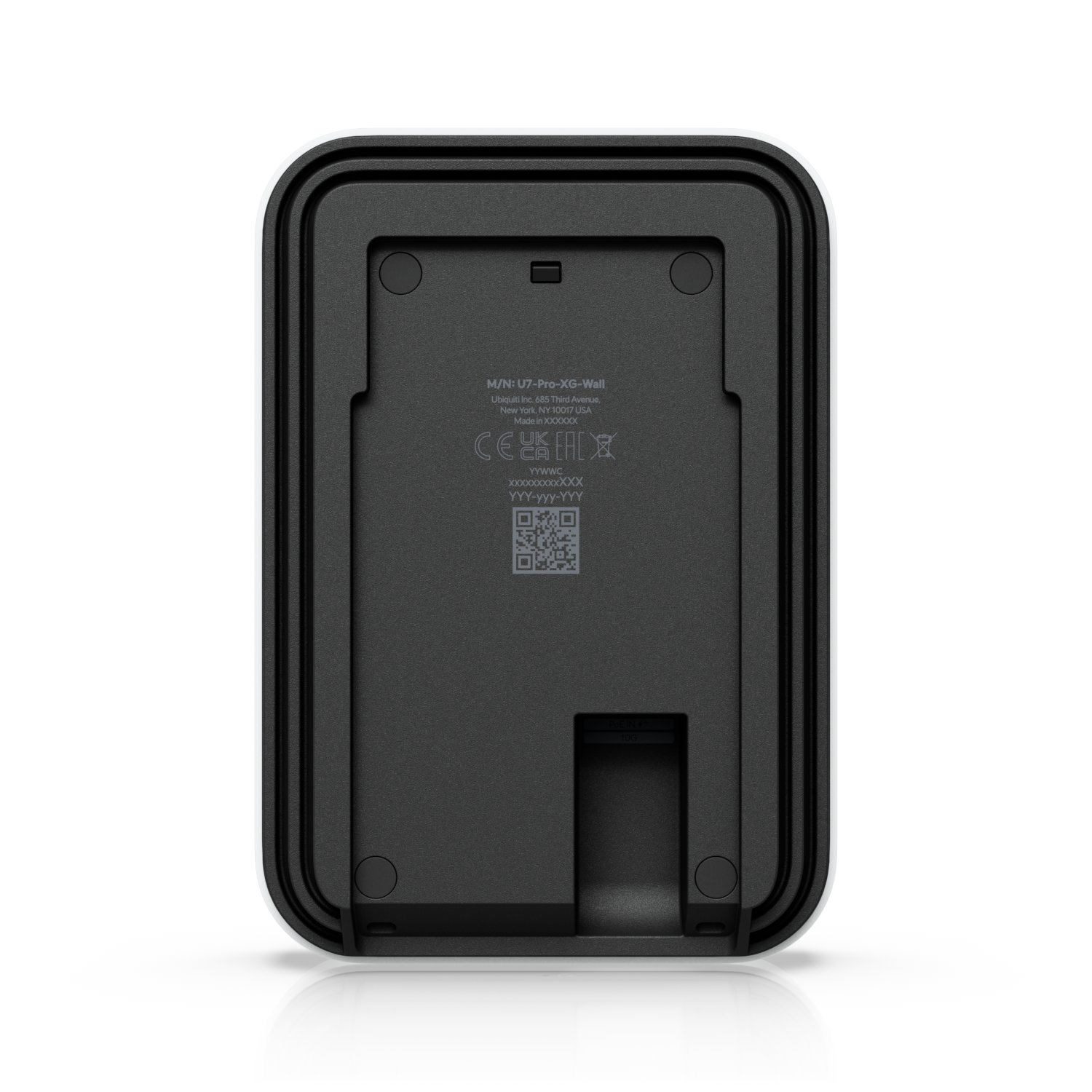

• Discreet wall-mount design — Low-profile enclosure with an integrated heatsink

Technical specifications

• WiFi standard: WiFi 7
• Bands: 2.4 / 5 / 6 GHz (tri-band)
• Spatial streams: 6
• MIMO: 2×2 (DL/UL MU-MIMO) on all bands
• Max data rates: 6 GHz 5.8 Gbps, 5 GHz 4.3 Gbps, 2.4 GHz 688 Mbps
• Coverage area: 140 m² (1,500 ft²)
• Max client count: 300+
• Uplink: 10 GbE
• Antenna gain: 6 dBi (6 GHz and 5 GHz)
• Dimensions: 155 x 108 x 33.5 mm (6.1 x 4.3 x 1.3″)
• Mounting: wall
• Power method: PoE+

One important note for buyers: the U7 Pro XG Wall does not include downstream switch ports it’s a pure access point. If you need wired device connections at the AP location, pair it with a switch or consider a UniFi In-Wall model instead.
