PBE-5AC-500

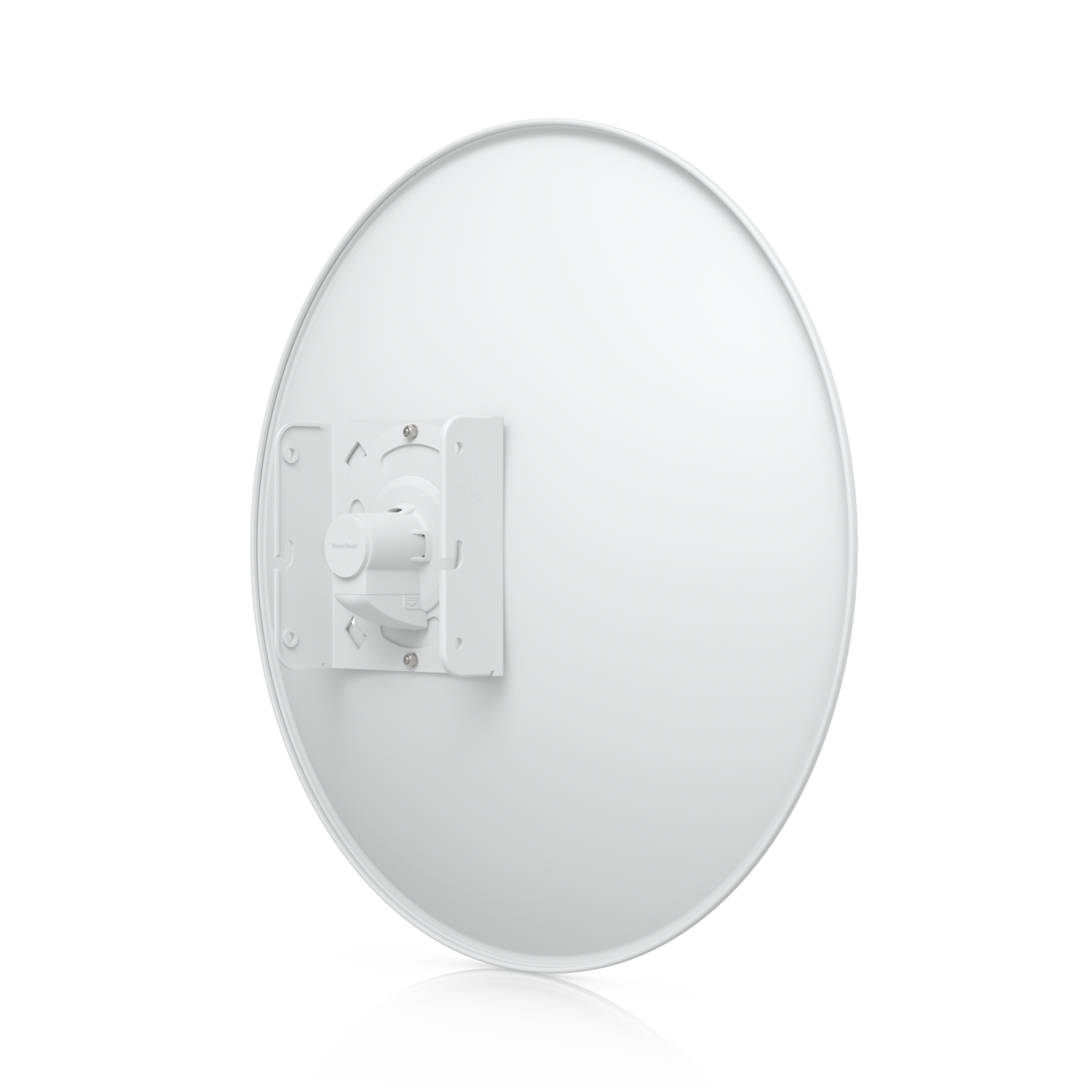

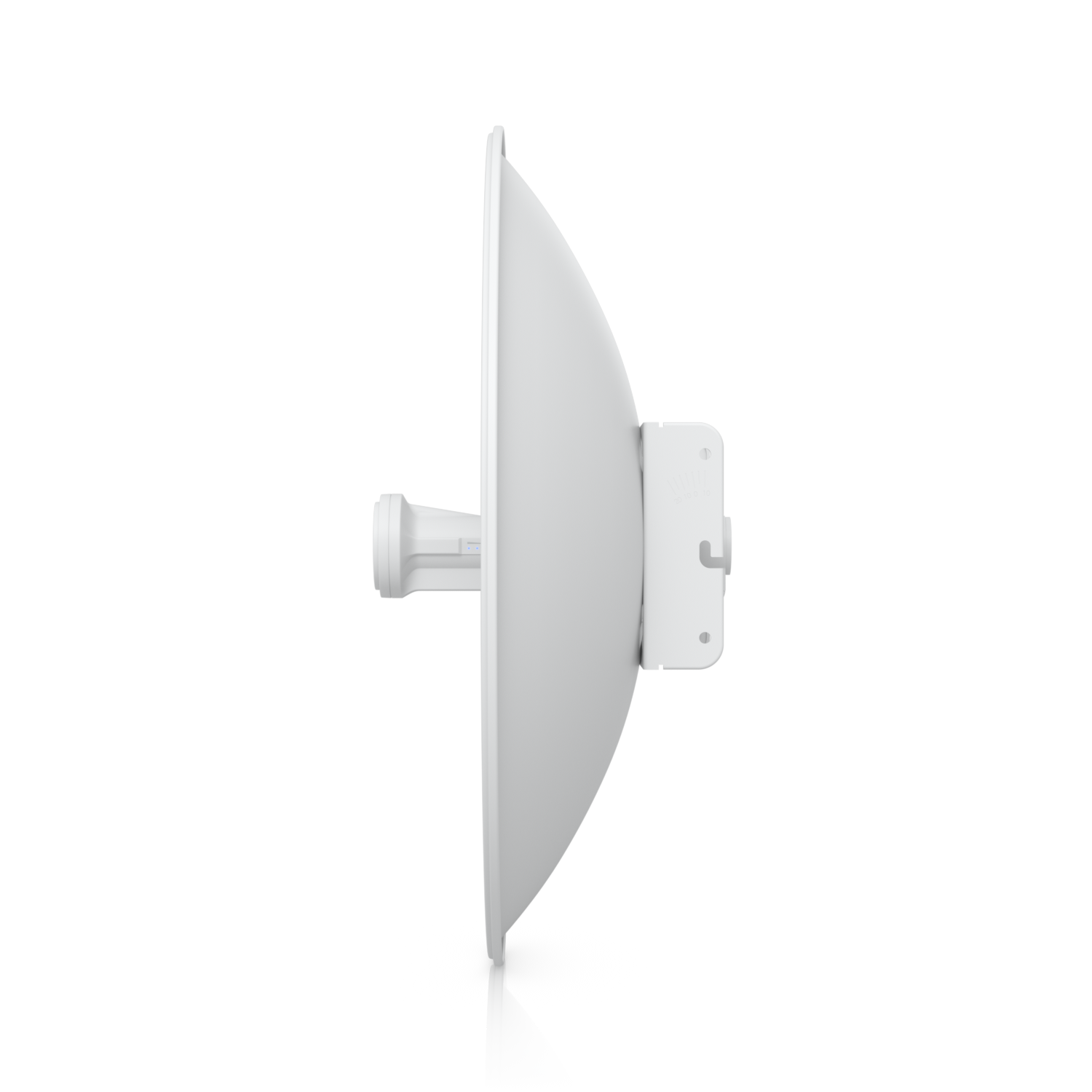

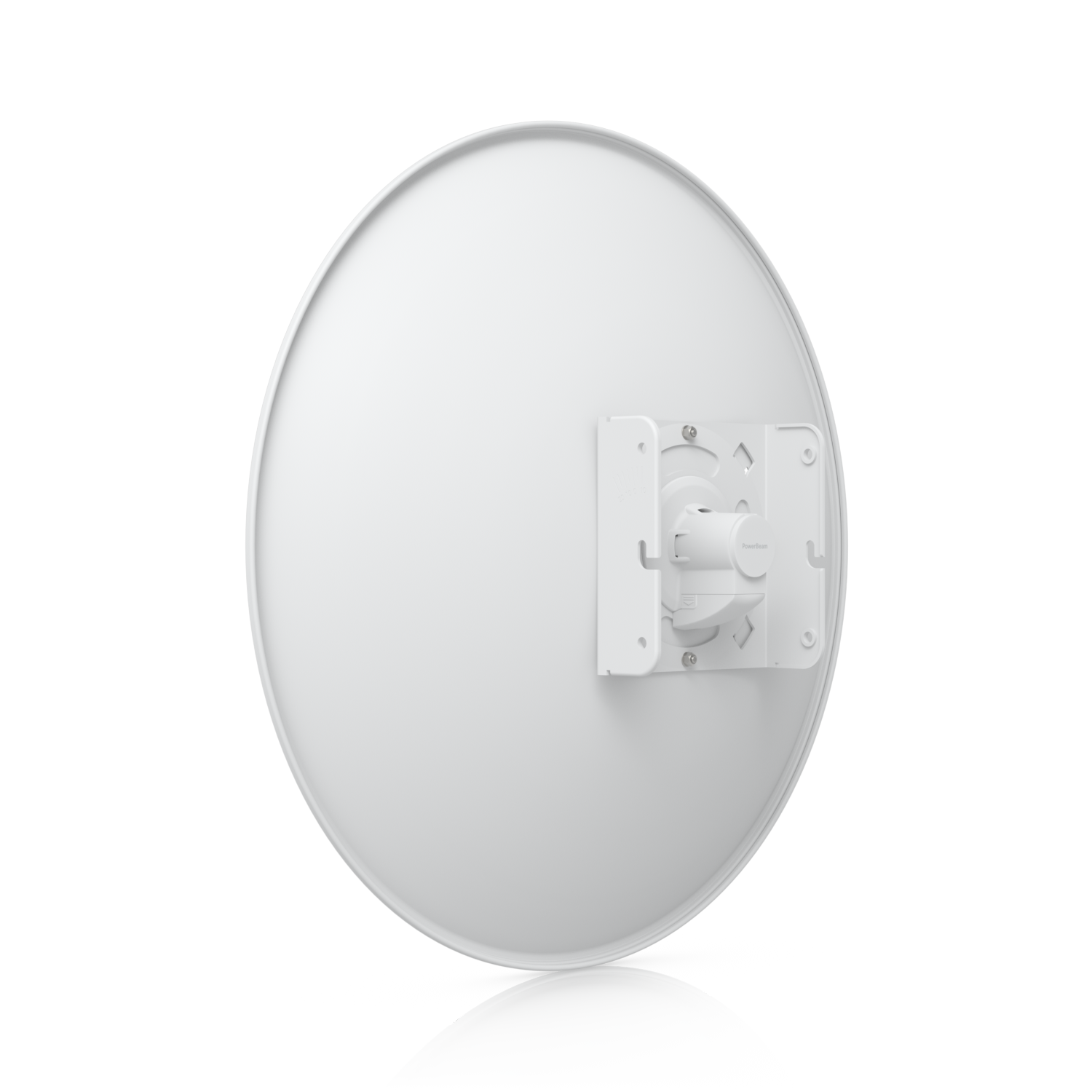

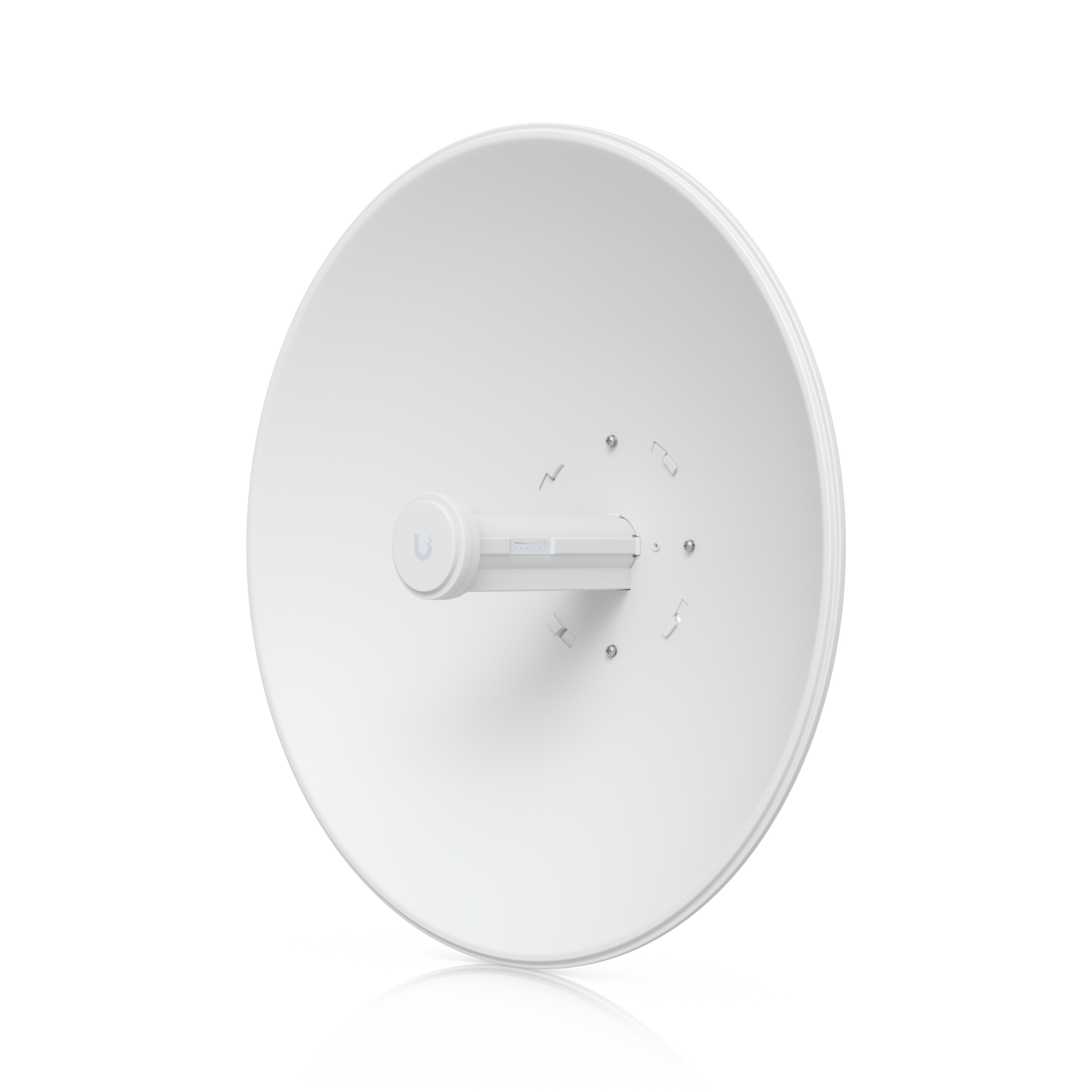

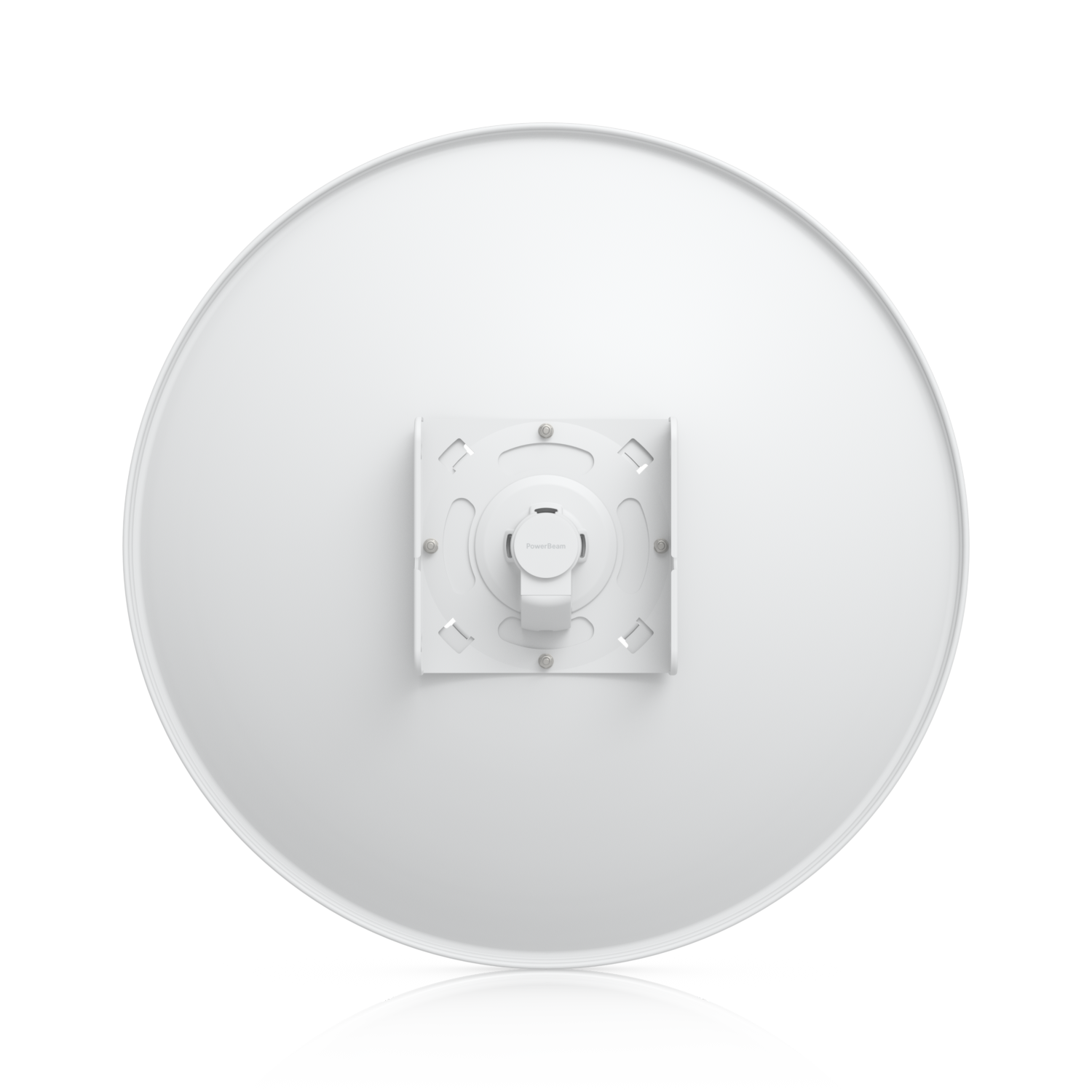

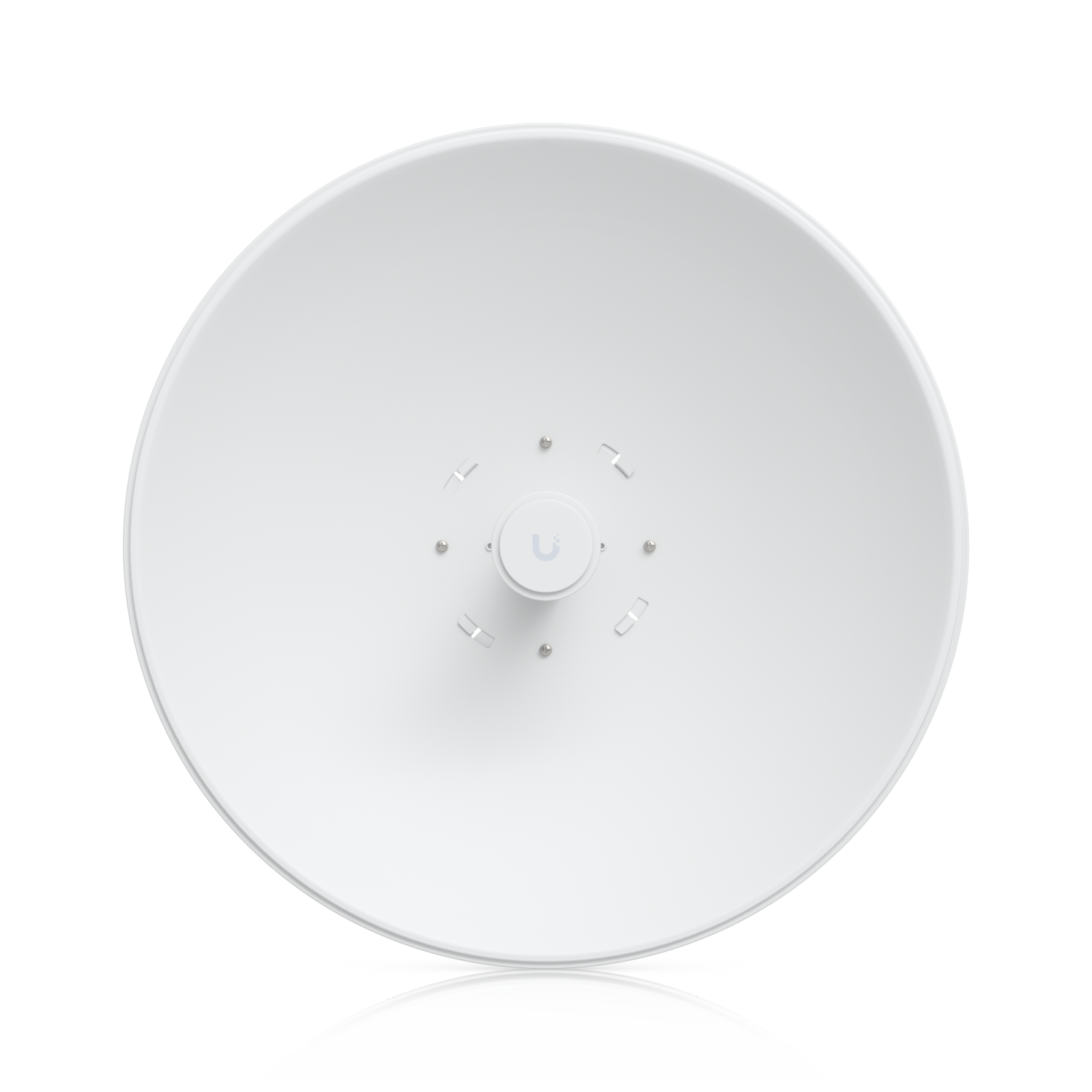

Ubiquiti PowerBeam 5AC 500 PBE-5AC-500

Build fast, reliable long-distance wireless links with the Ubiquiti PowerBeam 5AC 500 a high-performance 5 GHz airMAX ac bridge with a 27 dBi dish, ready to serve as an access point, bridge, or CPE. Incorporating a dish reflector design with proprietary airMAX ac technology, it’s ideal for CPE deployments requiring maximum performance, delivering throughput of up to 450+ Mbps and a range of 16+ mi (25+ km). Greattips3sGreattips3s

High-gain, focused performance

At the core of its capabilities is an integrated high-gain 27 dBi dish antenna with a 500 mm diameter. This large reflector focuses the transmitted signal more precisely, significantly enhancing range and performance. Enhanced beam directivity provides optimal performance in high-noise environments, making it a dependable choice for challenging RF conditions. UbiquitiGreattips3s

airMAX ac engine

Ubiquiti’s airMAX engine with custom IC improves TDMA latency and network scalability, while custom silicon provides hardware acceleration to support the high data rates and dense modulation used in airMAX ac technology. The result is low latency, high throughput, and excellent scalability across point-to-point and point-to-multipoint networks. Greattips3s

Cable-free InnerFeed design

InnerFeed technology integrates the radio into the feedhorn of the antenna, eliminating the need for cables between the radio and antenna. This improves performance while eliminating cable losses. A protective radome shields the radio from the elements for reliable year-round operation. Greattips3sBackupPowerHub

Fast, tool-free installation

The PowerBeam requires no tools for assembly only a single wrench is needed for pole-mounting, so you can get links up quickly and cleanly. BackupPowerHub

Key features

• 5 GHz airMAX ac — Up to 450+ Mbps real TCP/IP throughput
• 27 dBi, 500 mm dish — High gain and tight beamwidth for long range
• 25+ km range — Ideal for long-distance PtP and PtMP links
• InnerFeed technology — Eliminates cable losses
• Protective radome — All-weather durability
• Tool-free assembly — Snap-and-lock design, single wrench for mounting
• Low power draw — 8.5W max consumption Ubiquiti

Technical specifications

• Frequency: 5 GHz (airMAX ac / 802.11ac)
• Gain: 27 dBi Ubiquiti
• Throughput: 450+ Mbps
• Range: 25+ km (16+ mi)
• Channel width: 10/20/30/40/50/60/80 MHz (PtP), 10/20/30/40 MHz (PtMP) Greattips3s
• Networking: (1) GbE RJ45 port Ubiquiti
• Power: Passive PoE 2-pair, 24V 0.5A gigabit PoE adapter (included), 20–27V DC Ubiquiti
• Dimensions (with radome): 525 x 525 x 315 mm (20.7 x 20.7 x 12.4″) Ubiquiti
• Weight (with radome): 3.2 kg (7 lb) Ubiquiti
• Enclosure: UV-stabilized polycarbonate Ubiquiti
• Mounting: Pole mount (included) Ubiquiti
• Wind survivability: 96 km/h (60 mph) Ubiquiti
• Management: airOS

The PowerBeam 5AC 500 is the go-to solution for high-throughput, long-range outdoor wireless combining a high-gain dish, airMAX ac performance, and rugged all-weather construction.
