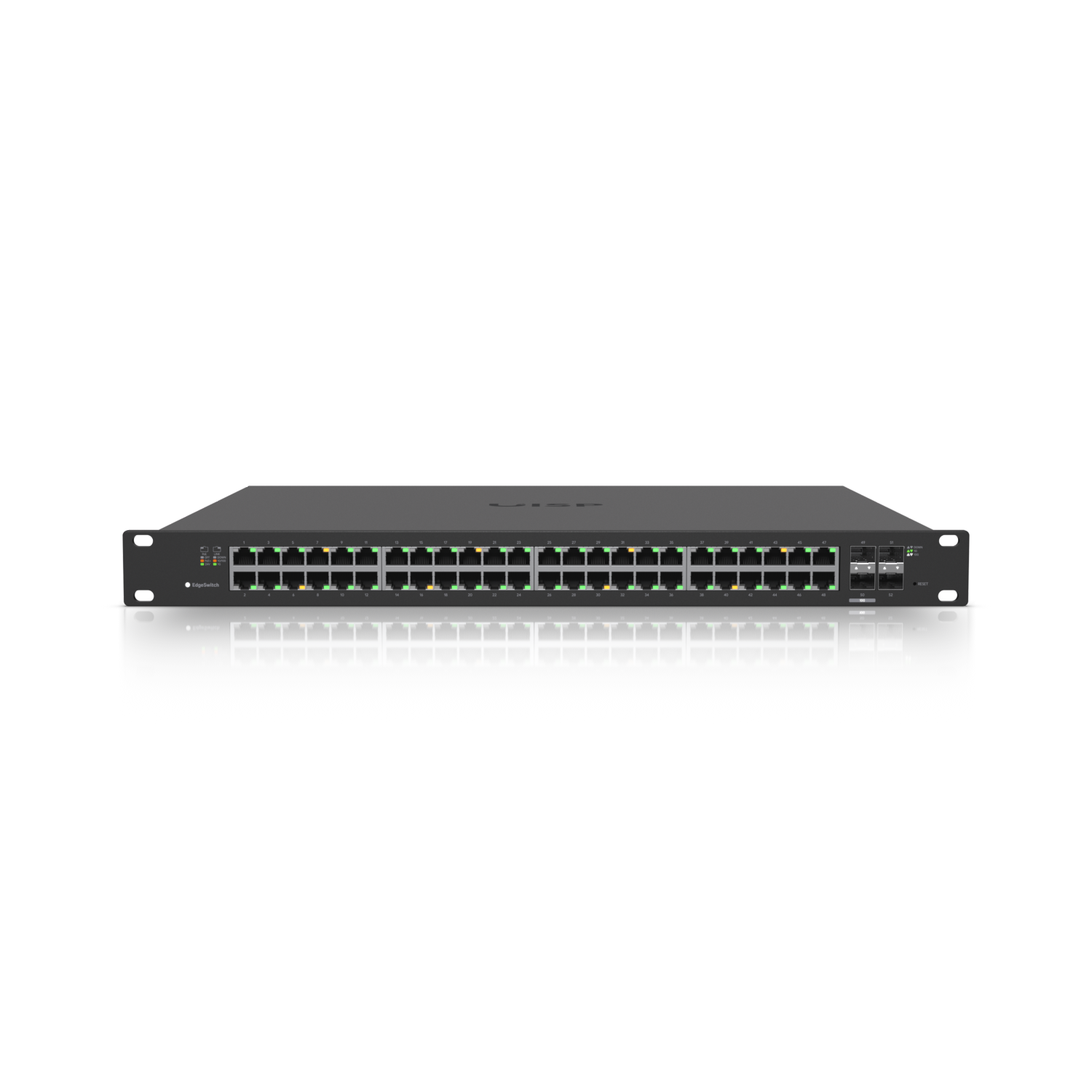

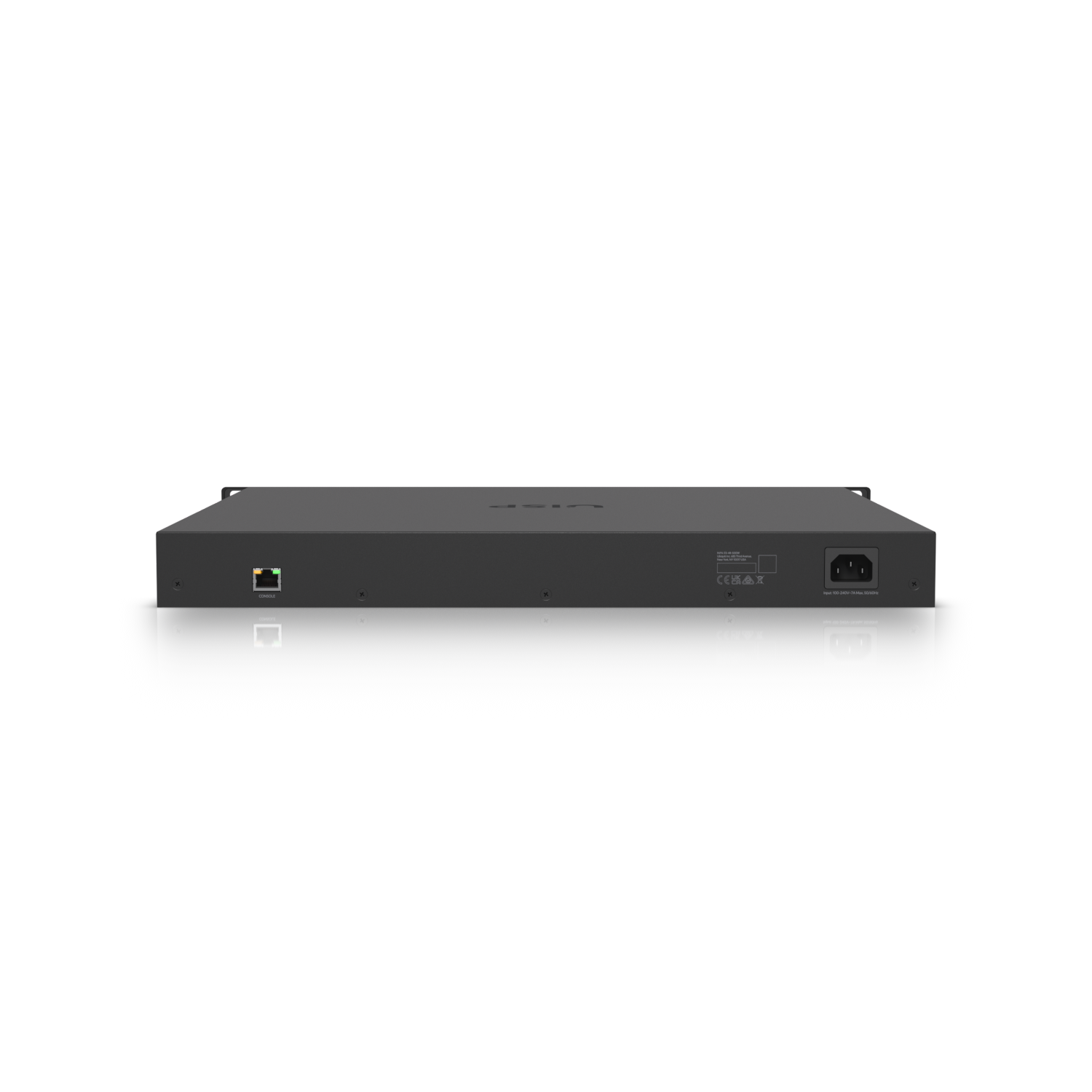

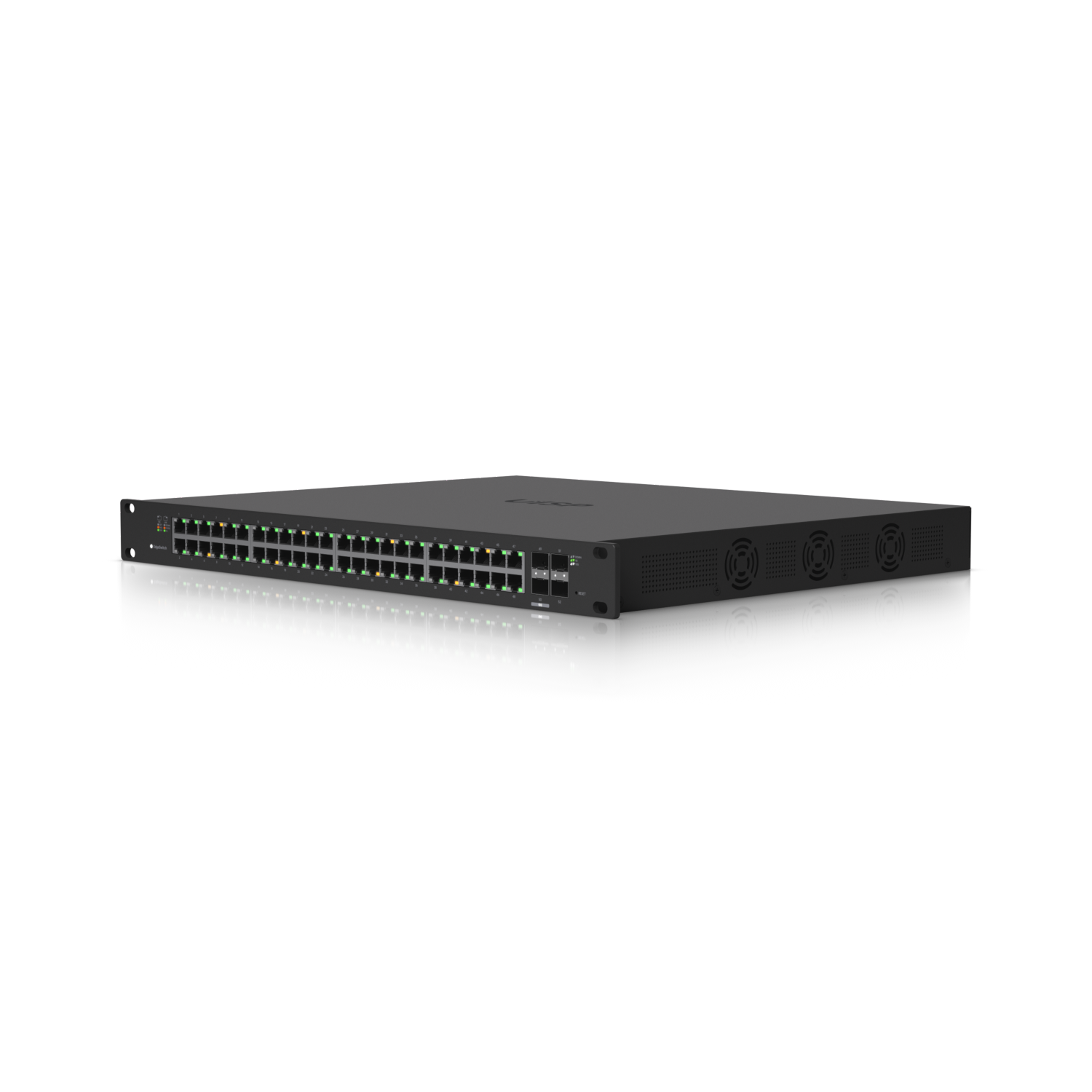

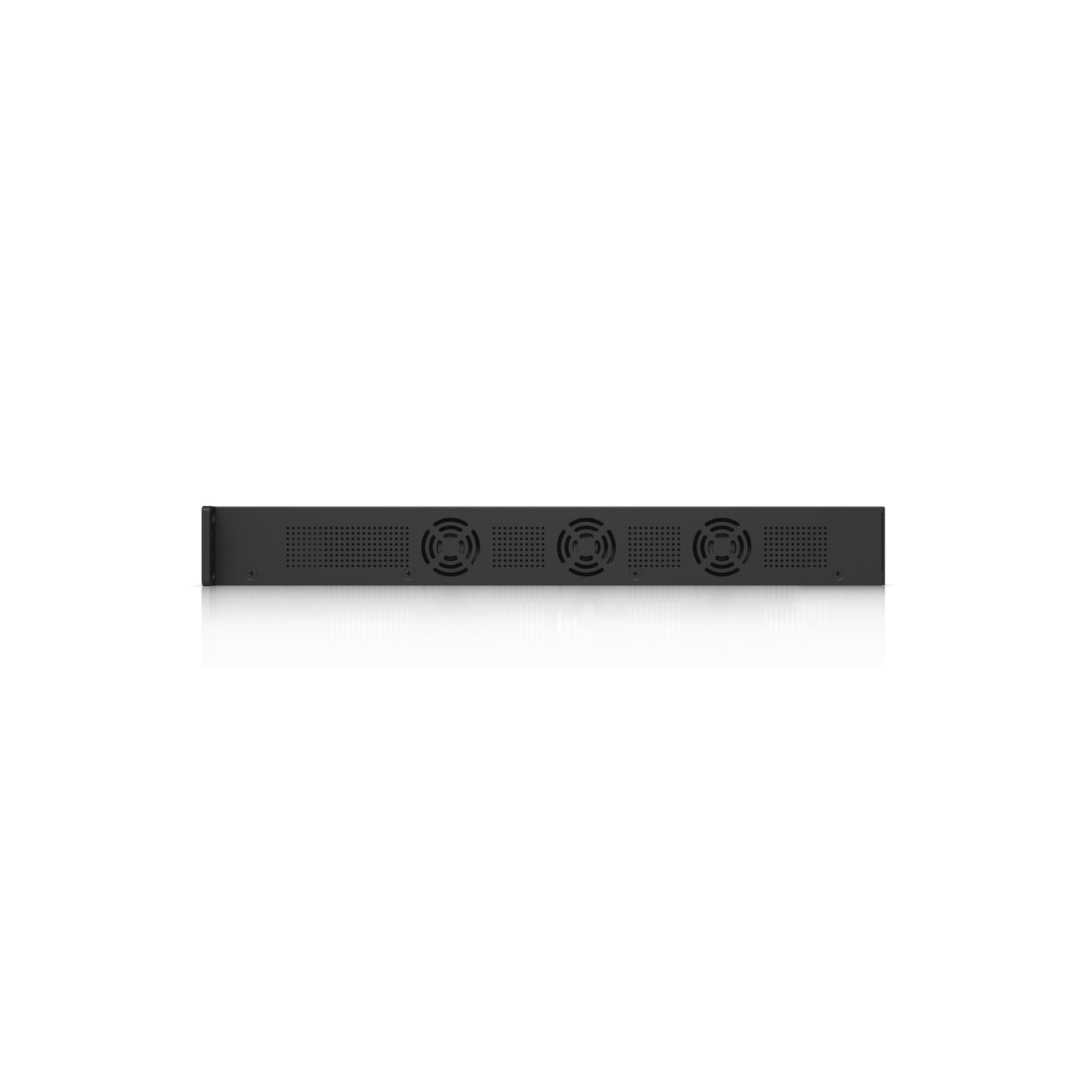

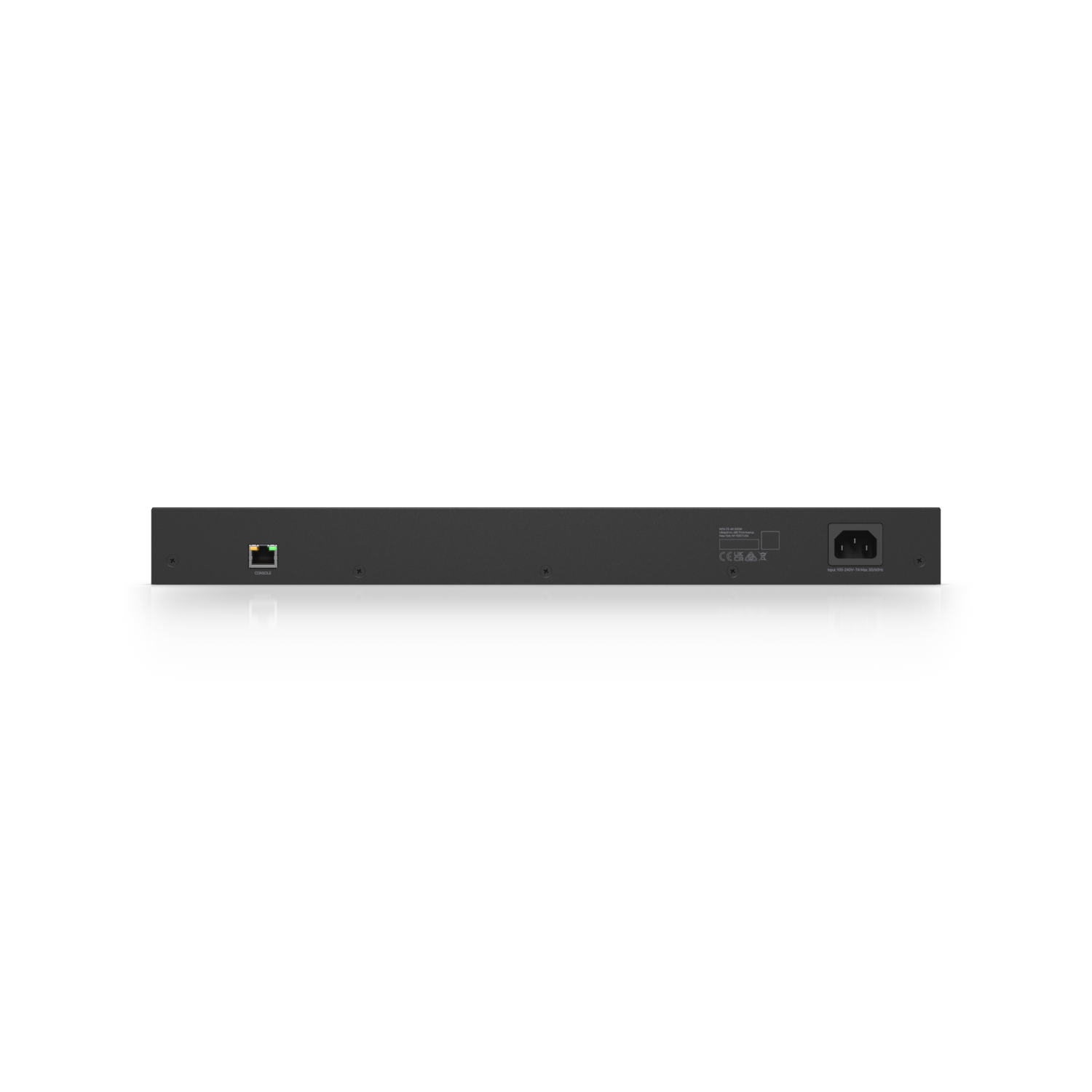

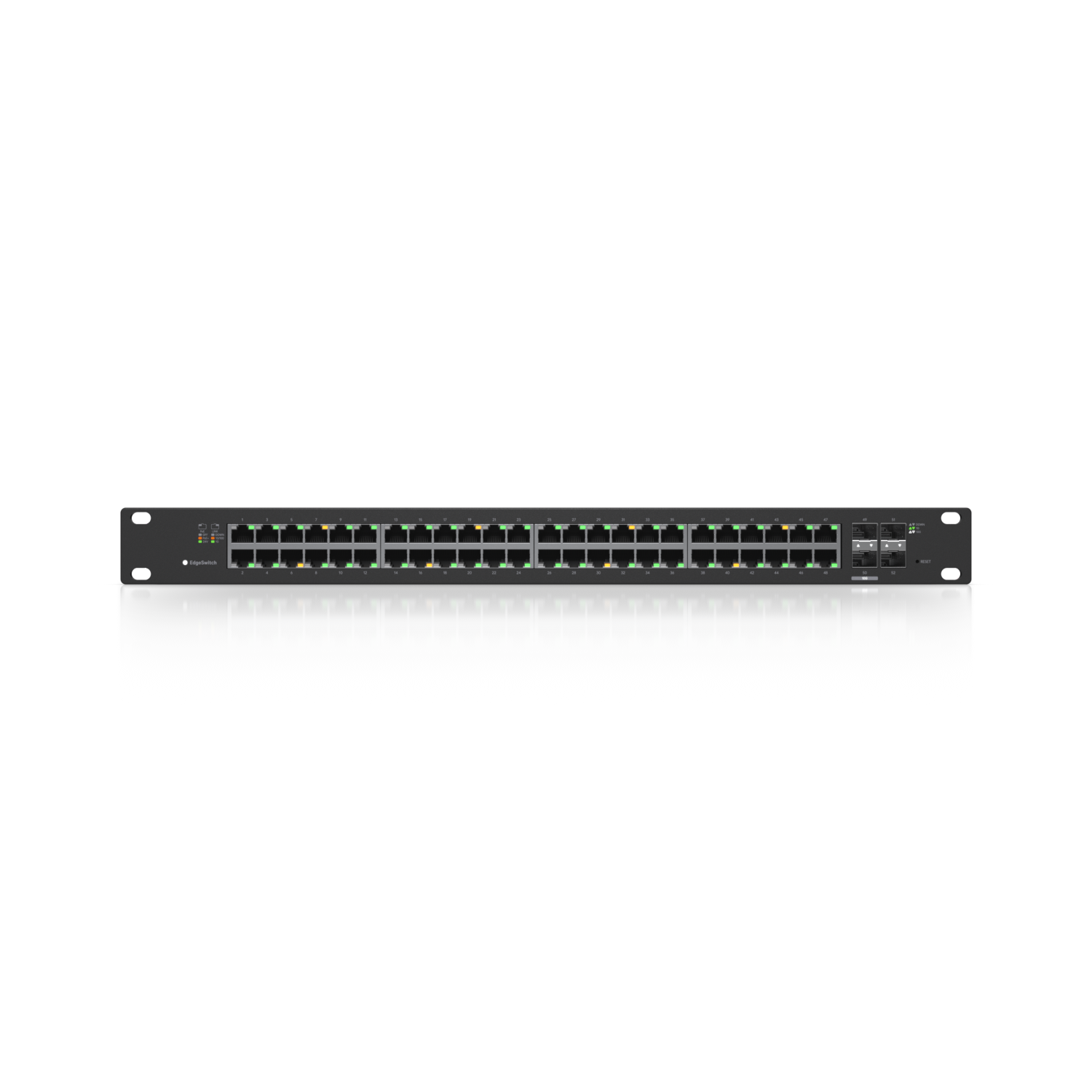

Ubiquiti ES-48-500W – High Performance 48 Port Gigabit PoE+ Switch with 500W Power Supply

The Ubiquiti EdgeSwitch ES-48-500W is a powerful Layer 2 managed switch designed to meet the high performance networking needs of modern enterprise environments in New Zealand. With 48 Gigabit Ethernet ports, 4 SFP uplinks, and PoE+ support, this 1U rackmount switch delivers maximum flexibility, speed, and power distribution across your infrastructure.

Whether you’re running VoIP phones, IP cameras, or wireless access points, the ES-48-500W provides reliable PoE+ power (802.3af/at and 24V passive) with a massive 500W budget, ensuring seamless deployment of critical devices without the need for external adapters.

Key Features & Benefits:

• ✅ 48 x 10/100/1000 Mbps Gigabit Ports – Connect a wide range of devices with high speed data transfer.

• ✅ 2 x 10G SFP+ Ports + 2 x 1G SFP Ports – High capacity fiber uplinks for long distance data backhaul.

• ✅ 70 Gbps Non-Blocking Throughput – For ultra fast, uninterrupted switching performance.

• ✅ 140 Gbps Switching Capacity – Ideal for large-scale networks and bandwidth intensive environments.

• ✅ 500W PoE Budget – Power access points, cameras, VoIP phones, and more without external power sources.

• ✅ Per-Port LED Indicators – Monitor link/activity and PoE status instantly.

• ✅ Advanced UI & CLI Support – Manage via intuitive web GUI or professional CLI (SSH/Telnet).

Technical Specifications:

• Switching Capacity: 140 Gbps

• Forwarding Rate: 104.16 Mpps

• PoE Standards: IEEE 802.3af/at & 24V Passive

• Form Factor: 1U Rackmount

• Dimensions: 485 x 43.7 x 374.6 mm

• Max Power Consumption: 500W

Ideal For:

• Medium to large business networks

• Enterprise IT infrastructure

• IP surveillance systems

• VoIP and wireless access networks

• Network expansion in NZ offices and data centers

Streamline your business network with the Ubiquiti ES-48-500W the ultimate PoE+ Gigabit switch for high speed connectivity, power efficiency, and scalable growth.
