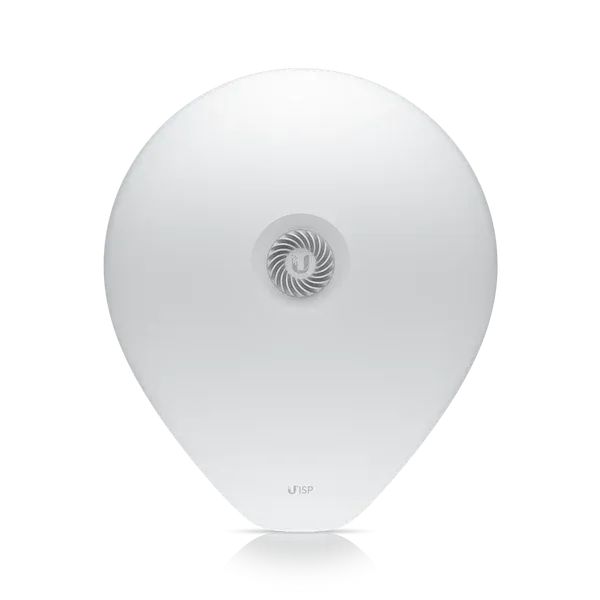

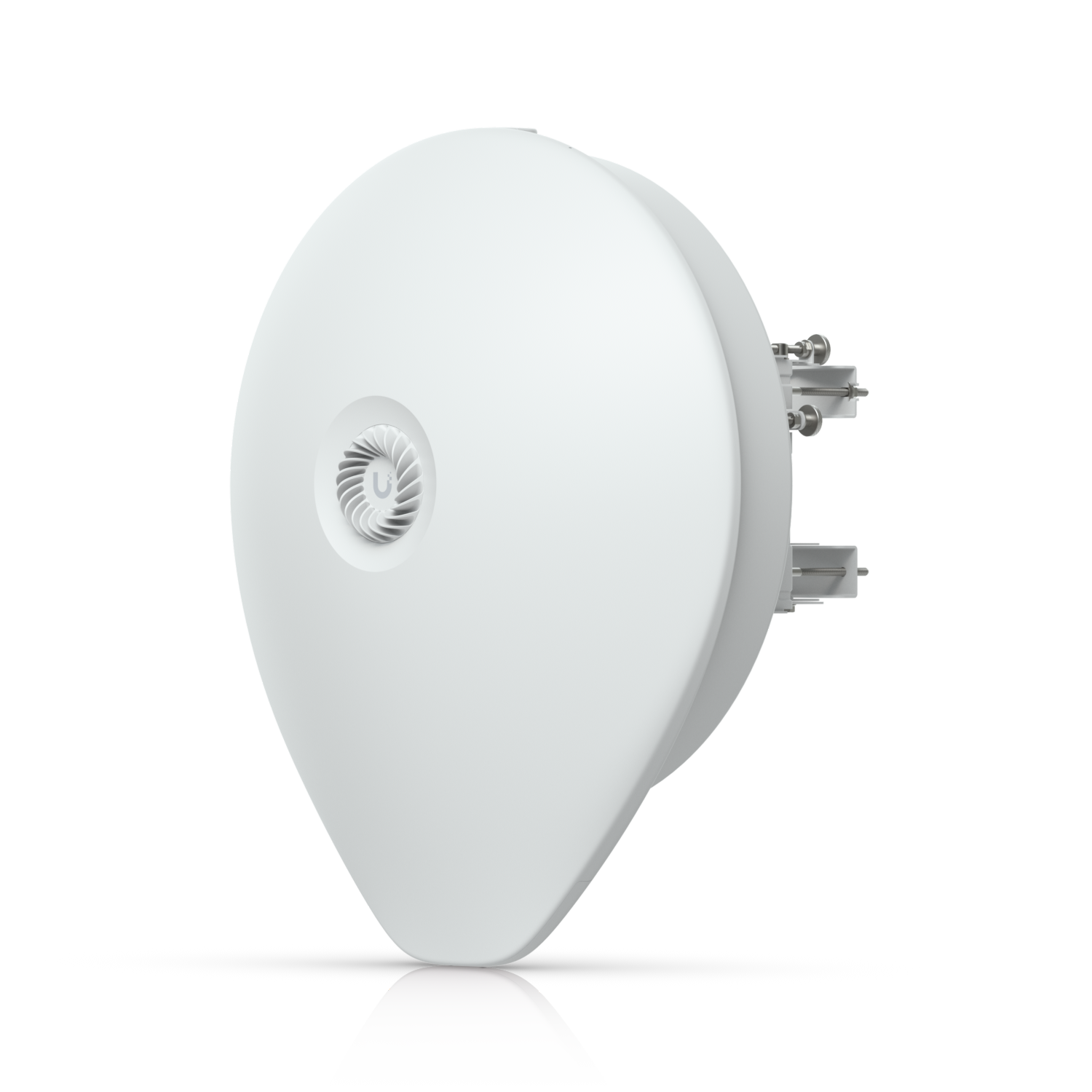

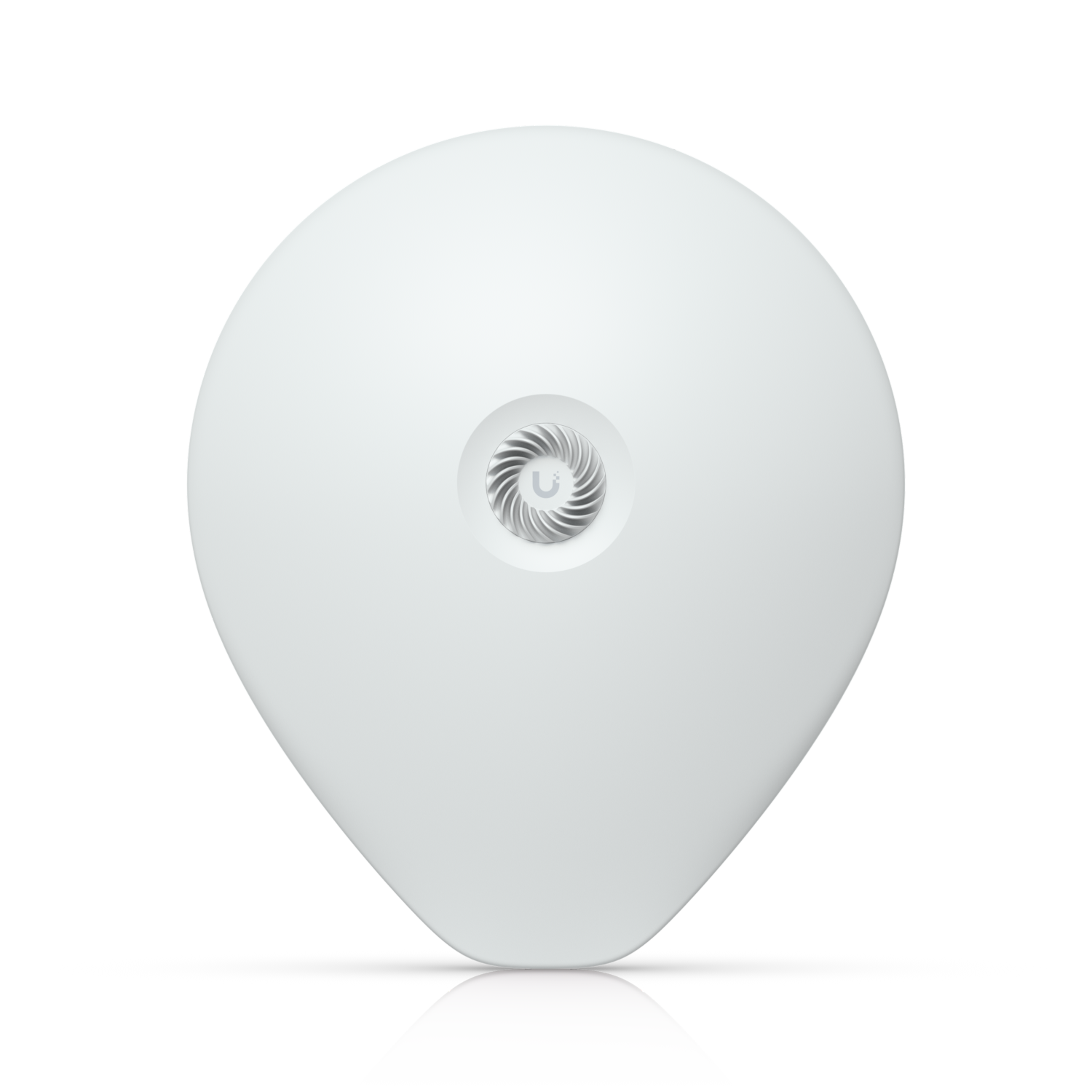

Ubiquiti AF60-XR 60GHz Long Range Wireless Bridge with 5GHz Failover for NZ Networks
The Ubiquiti AF60-XR is a next-generation 60GHz wireless bridge designed to deliver ultra fast, long distance point to point connectivity perfect for New Zealand businesses, enterprise networks, and rural setups. Engineered for reliable performance, this powerful bridge supports multi gigabit throughput (up to 5.4 Gbps total) over distances of 15+ km, while the integrated 5GHz failover radio ensures a stable backup connection during adverse conditions.
Built for harsh NZ weather, the AF60-XR features UV-stabilized construction, ESD/EMP protection, and a rugged design to withstand demanding environments. With built-in GPS and Bluetooth, setup is easy and alignment is precise.
Whether you’re linking two remote buildings, extending internet across a farm, or setting up high-speed outdoor wireless in New Zealand, the AF60-XR offers unmatched performance and reliability.
Key Features:
60GHz Long-Range Wireless Bridge – Up to 15+ km coverage
5.4 Gbps Max Throughput – 2.7 Gbps duplex speed for heavy data loads
5GHz Failover Radio – Provides 800+ Mbps backup for uninterrupted service
10G SFP+ and Gigabit Ethernet Ports – Flexible high-speed connectivity

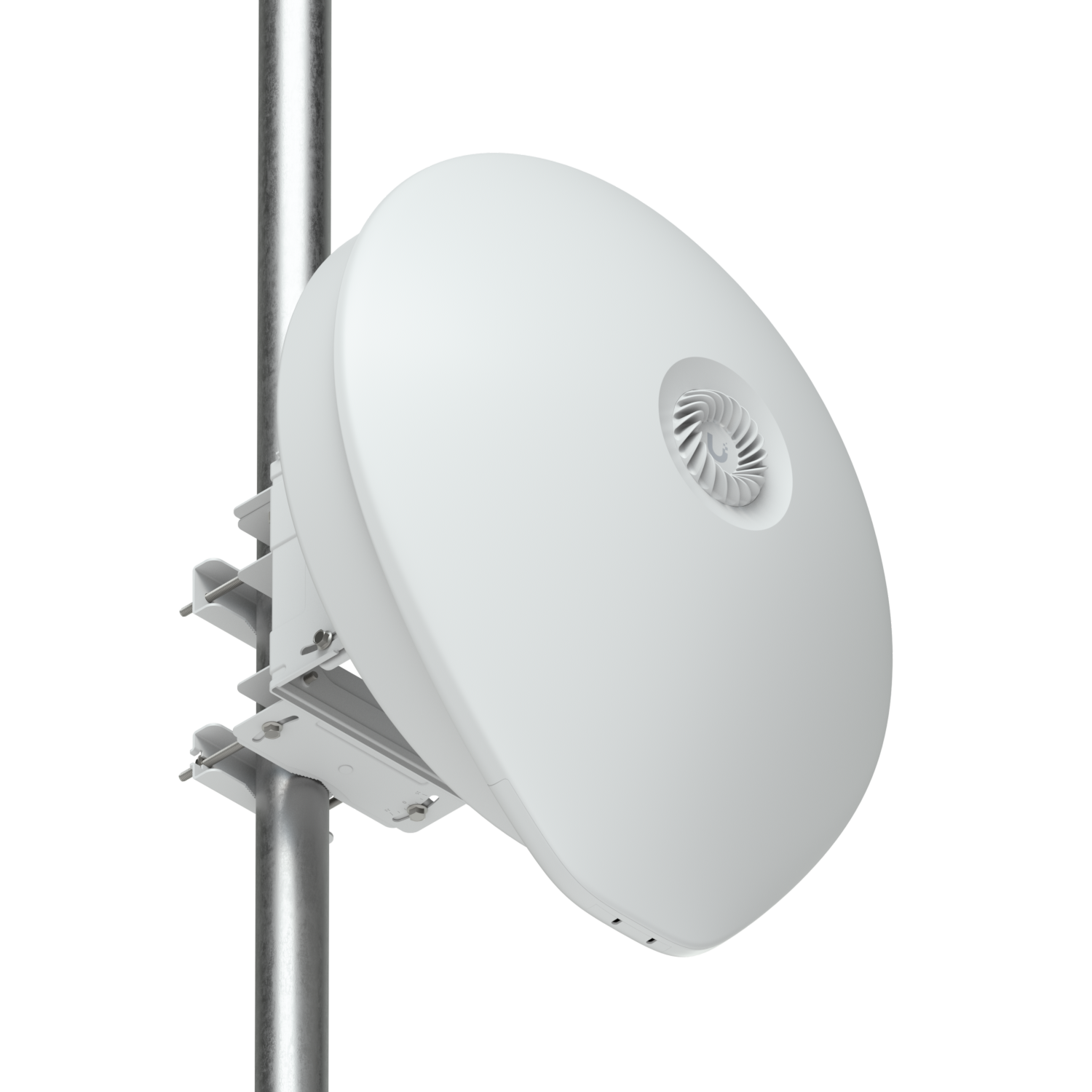

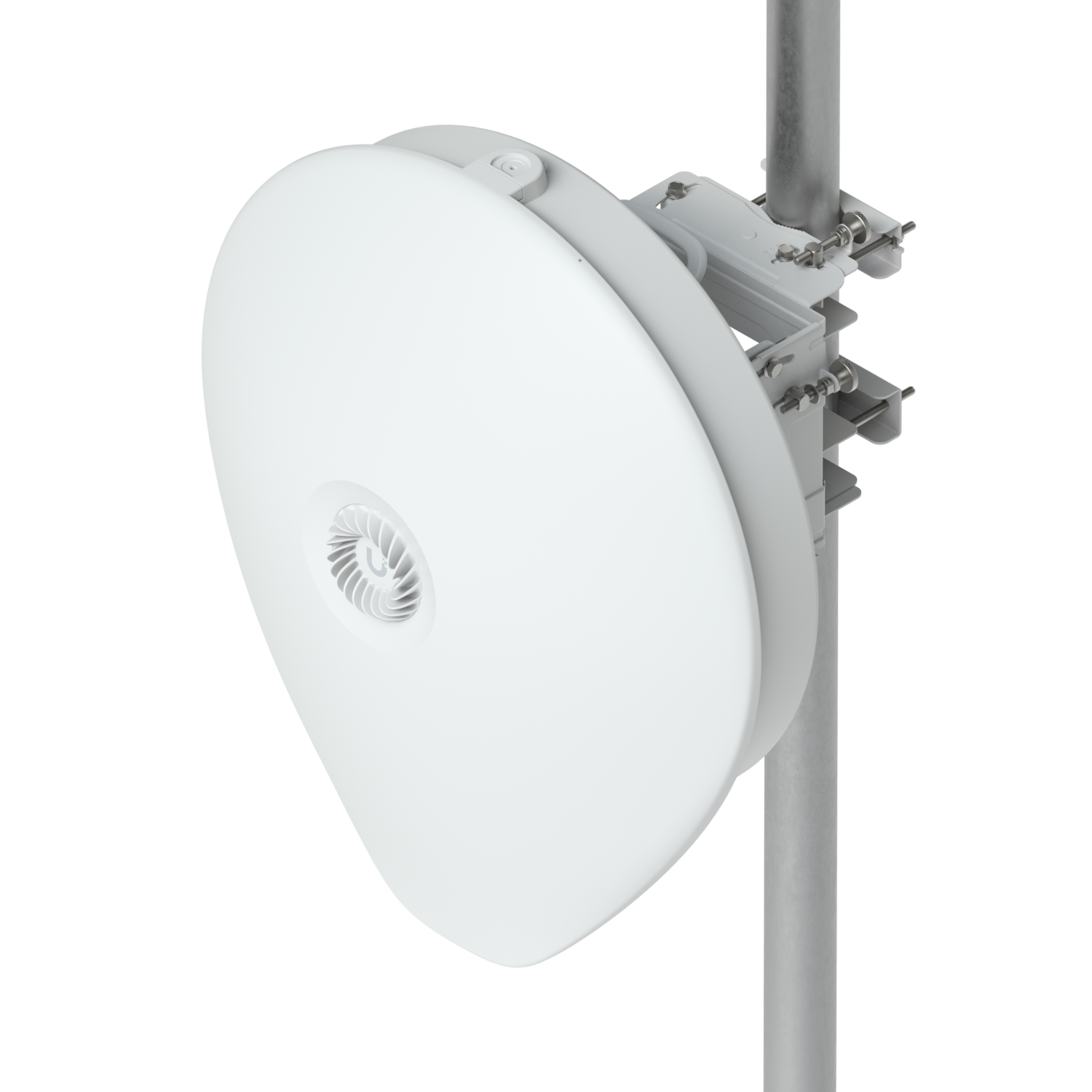

Precision Alignment Mount – For accurate setup and optimal signal
Integrated GPS & Bluetooth – Simplifies installation and network monitoring
Built for NZ Conditions – Weather-resistant, durable design
Technical Specifications
| Mechanical | |
| Dimensions | 779 x 664 x 383 mm (30.7 x 26.1 x 15.1″) |
| Weight | Without mount: 8.6 kg (19 lb) With mount: 13 kg (28.7 lb) |
| Enclosure materials | UV stabilized polycarbonate, steel |
| Mount material | Galvanized steel |

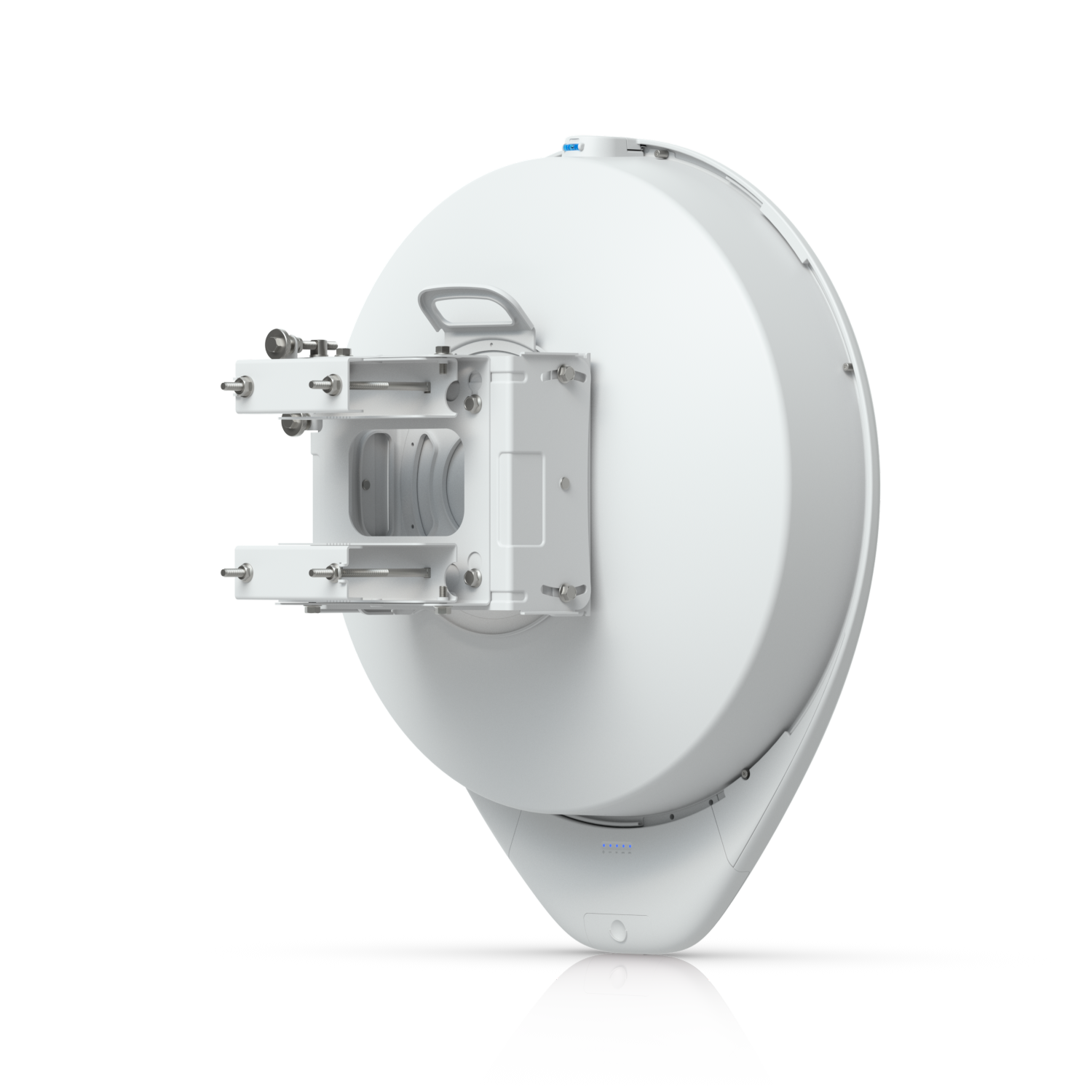

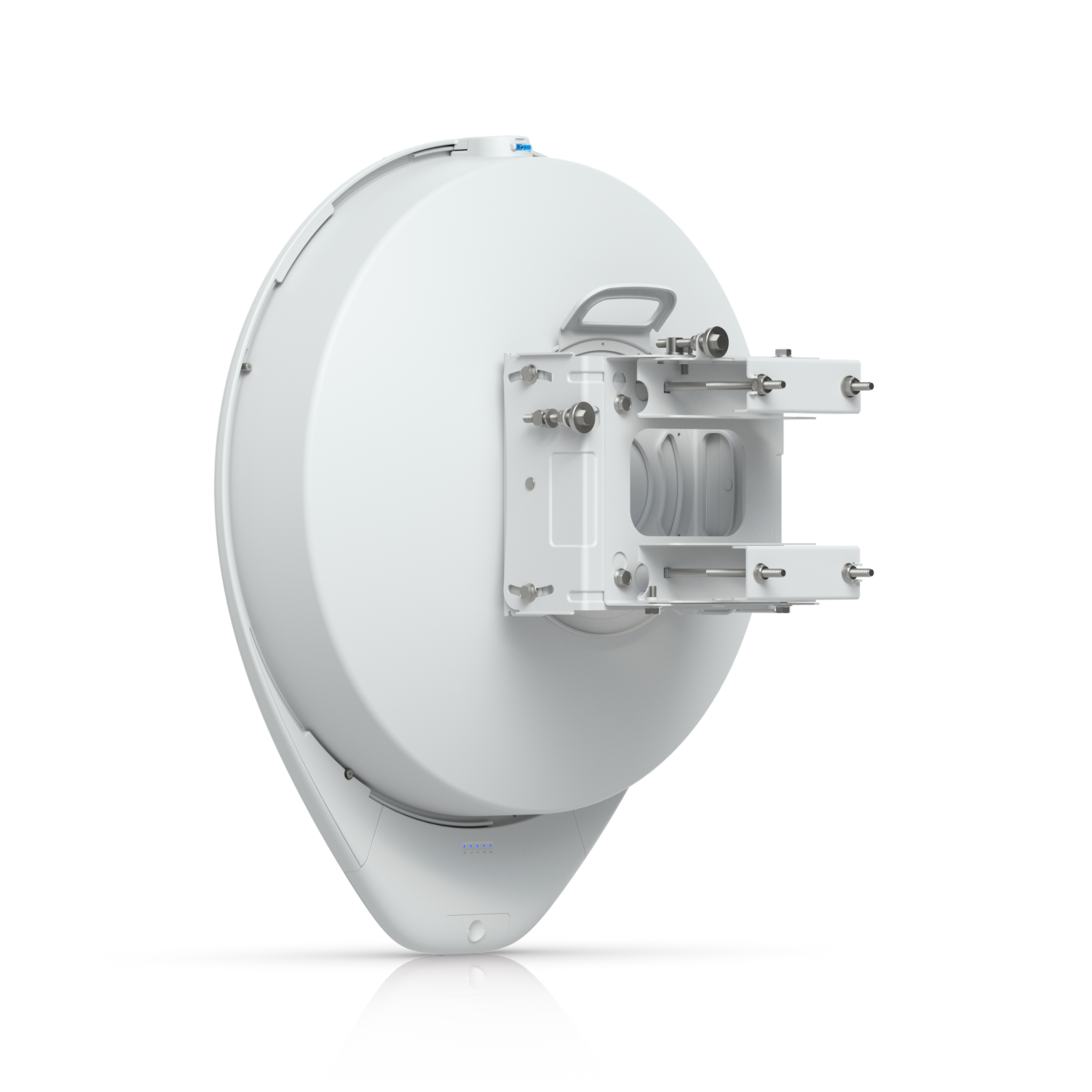

| Mounting | Precision alignment kit (included) Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15″) on pipe outer diameter |
| Wind loading | 422 N at 200 km/h (94.86 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | DDR3L1 GB |
| Networking interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Max. power consumption | 24W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎 Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power supply | 48V DC, 0.65A gigabit PoE adapter (included) |
| Supported voltage range | 44–54V DC 22–27V DC |
| GPS | Yes |
| RF connections | Internal |
| Button | Factory reset |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating mode | PtP only |
| Ubiquiti specific features | Integrated 60 GHz radio, discovery protocol, Wave technology |
| Services | UISP, ping watchdog, NTP client, device discovery |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Network | Bridge mode |
| Management application | UISP web: Version 1.4.3 and later UISP iOS™: Version 2.20 and later UISP Android™: Version 2.21.5 and later |
| System | |
| Max. throughput | 2.7 Gbps |
| Max. range | 15+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57–71 Ghz * Depends on regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz * Depends on regulatory region. |
| Management radio | 2400–2483.5 MHz |
| Modulation | 16QAM, BPSK, QPSK |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 1.4° Elevation: 3 dB 1.4° |
| Electrical downtilt | 0° |
| Back-Up RF | |
| Operating frequency* US/CAWorldwide | U-NII-1 5150 – 5250 MHz U-NII-2A 5250 – 5350 MHz U-NII-2C 5470 – 5725 MHz U-NII-3 5725 – 5850 MHz5150 – 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6) |
| Antenna gain | 26 dBi |
| Polarization | Dual-linear |
| Beamwidth | Azimuth: 3 dB 5° Elevation: 3 dB 5° |
| Cross-pol isolation | 14 dB |
| Electrical down-tilt | 0° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application |
| Ethernet | Flashing blue: Ethernet activity |
| GPS | Blue: receiving at least (4) GPS satellite signals |
| Link | Blue: 5GHz link Blue: 60GHz link |
