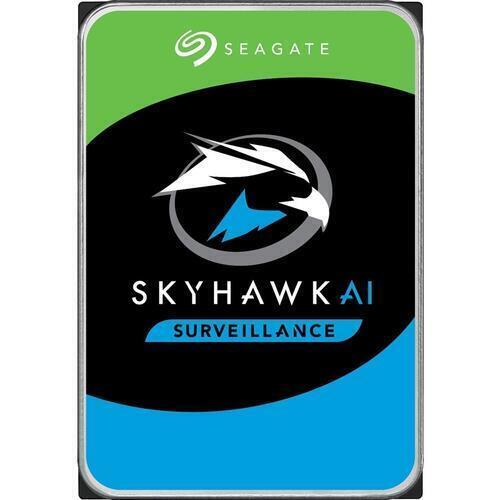

Seagate ST4000VX016 SkyHawk 4TB Surveillance Drive

Seagate ST4000VX016 SkyHawk 4TB Surveillance Drive

Seagate SkyHawk 4TB Surveillance Drive

A standard desktop hard drive is designed to read a lot and write occasionally, then sit idle overnight. A surveillance drive does the opposite constant sequential writing from several cameras, every hour, with no idle period at all. Put a desktop drive in an NVR and it’ll work for a while, then it won’t, usually at the least convenient moment.

The Seagate SkyHawk ST4000VX016 is designed for exactly that duty cycle. 4TB of capacity, tuned firmware, and a workload rating that reflects what surveillance recording actually demands.

ImagePerfect firmware: built for writing, not reading

SkyHawk drives run Seagate’s ImagePerfect firmware, which is tuned for the continuous sequential writes a surveillance system produces rather than the read-heavy patterns of a desktop PC.

The practical benefit is dropped frames. When a drive can’t keep up with incoming streams, footage is lost and you find out when you go looking for the one clip that mattered. Firmware built for this workload is the difference between a complete recording and a gap.

Rated to support up to 64 HD camera streams, which covers the overwhelming majority of home and small-business installations with room to spare.

Built for 24/7, not 8/5

Two specifications matter here, and they’re the ones desktop drives can’t match:

• Workload rate — the amount of data the drive is rated to read and write per year. Surveillance drives are rated far higher than desktop drives because they never stop.
• 24×7 operation — rated for continuous duty rather than an eight-hour working day.

SkyHawk Health Management: warning before failure

SkyHawk Health Management works with compatible NVR systems to monitor drive health and flag problems early prevention, intervention and recovery rather than a post-mortem.

For a surveillance system this matters more than it does for a desktop. A failed drive doesn’t just cost you the drive; it costs you the footage from the period before you noticed. Advance warning turns a data loss event into a scheduled replacement.

Quiet, cool and low power

Surveillance drives run at lower rotational speeds than performance desktop drives, which produces less heat, less noise and lower power draw. In an NVR sitting in a cupboard, an office or a hallway, that’s a genuine practical advantage and heat is one of the main things that shortens drive life in an enclosed recorder.

Right for

• Home and small-business NVR and DVR systems
• 4 to 16 camera installations
• Continuous 24/7 recording rather than motion-only capture
• Replacing a failing desktop drive in an existing recorder
• Anyone who has discovered a gap in their footage and doesn’t want a second one

How much recording is 4TB?

Retention depends on camera count, resolution, frame rate, codec and whether you record continuously or on motion. As a rough guide, a small system of a few 1080p cameras using H.265 and motion recording will hold weeks of footage; a larger 4K continuous setup will fill 4TB considerably faster.

Work out your requirement from your recorder’s own storage calculator, or send us your camera count and resolution and we’ll estimate it.

Honest positioning: this is the right drive for most home and small-business systems. If you’re running AI analytics on the recorder, deep learning workloads, or a large multi-site installation, look at the SkyHawk AI line instead it’s a higher-tier product built for that specific job, and it starts at larger capacities.

Specifications
