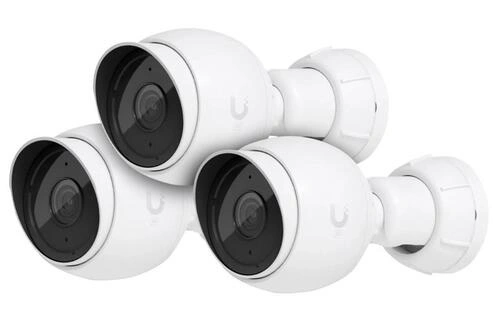

UVC-G5-BULLET-3

• 2K (4MP) video resolution
• Flexible 3-axis adjust mount
• 9 m (30 ft) IR night vision
• AI event detections
• Record audio with an integrated microphone
• Connect and power using PoE
• Weatherproof (outdoor exposed)

Technical Specifications

Mechanical
Dimensions Without mount: Ø75.5 x 74.4 mm (Ø2.97 x 2.93″)
With wall mount: Ø75.5 x 150 mm (Ø2.97 x 5.9″)
Weight Without mount: 225 g (7.94 oz)
With wall mount: 315 g (11.11 oz)
Enclosure materials Polycarbonate, aluminum alloy
Mount materials Wall mount: aluminum alloy, polycarbonate
Pole mount: aluminum alloy
Weatherproofing IP55
Resistance IK04
Optics
Sensor 5MP CMOS sensor
Lens Fixed focal length
View angle H: 84.4°, V: 45.4°, D: 99.8°
Night mode Built-in IR LED illumination and IR cut filter
Video
Video compression H.264
Resolution 4MP 2688 x 1512 (16:9)
Max. frame rate 30 FPS
Image settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor Dual-core Arm® Cortex®-A7 based chip

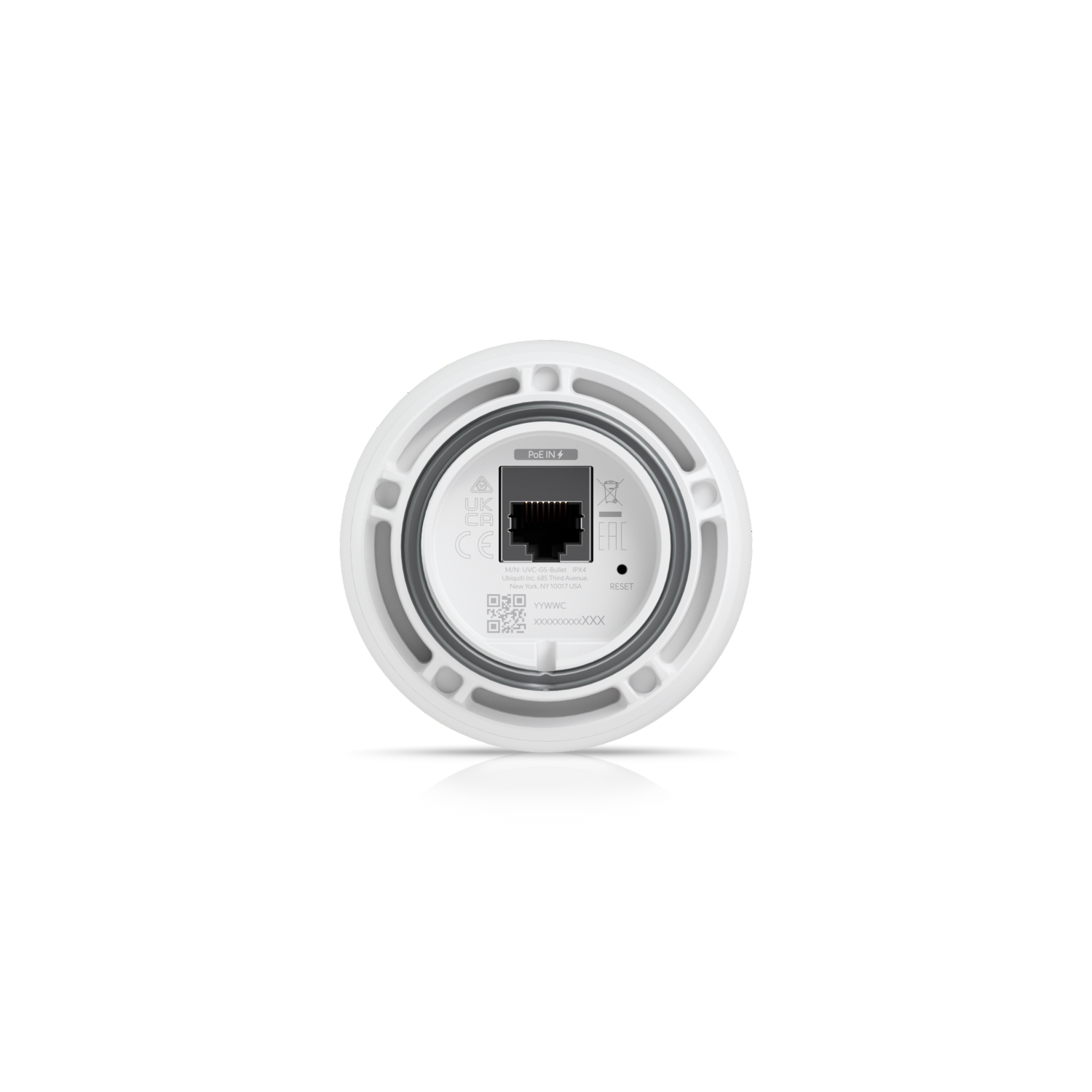

Networking interface 10/100 MbE RJ45 port
Max. power consumption 4W
Power method PoE
Supported voltage range 37—57V DC
Button Factory reset
Mounting Wall, pole mount
Operating temperature -20 to 40º C (-4 to 104º F)
Operating humidity 0 to 90% noncondensing
Certifications FCC, IC, CE
Audio
Microphone Yes (Can be disabled)
Software
Web application UniFi Protect: Version 2.2.7 or 2.7.28 and later
Mobile app UniFi Protect iOS™ and Android™: Version 1.10.0 and later
