UF-GP-B+

UF-GP-B+ The Ubiquiti airMAX 5 GHz 31 dBi Dual-Polarized RocketDish Antenna (RD-5G31-AC) is a high-performance parabolic dish antenna engineered for long-range, point-to-point (PtP) wireless communication. Designed to seamlessly integrate with Ubiquiti’s RocketM radios, this antenna delivers robust connectivity and exceptional signal strength, making it an ideal choice for carrier-class network backhauls and bridging applications.

Key Features

• Frequency Range: Operating within the 5.1 to 5.8 GHz spectrum, the RD-5G31-AC is suitable for various international applications, providing flexibility across multiple frequency allocations.

• High Gain: With a substantial 31 dBi gain, this antenna ensures enhanced signal reception and transmission over extended distances, facilitating reliable high-speed data links.

• Dual-Linear Polarization: The antenna features dual-linear polarization, enabling 2×2 multiple-input multiple-output (MIMO) functionality. This design enhances data throughput and link stability by transmitting and receiving signals on two separate channels.

• Robust Construction: Built for outdoor deployments, the RD-5G31-AC boasts a rugged mechanical design. It includes a protective radome and metal shroud, safeguarding the antenna’s internal components from environmental factors such as wind, rain, and debris.

• Seamless Integration: Specifically designed to pair with Ubiquiti’s RocketM radios, the antenna allows for straightforward installation and setup, creating a cohesive PtP bridging solution.

Technical Specifications

• Dimensions: The antenna measures 748 x 748 x 349 mm (29.45 x 29.45 x 13.74 inches), providing a compact form factor suitable for various installation environments.

• Weight: Weighing approximately 7.6 kg (16.76 lbs) with the mounting hardware included, the RD-5G31-AC is designed for stability and durability in outdoor settings.

• Beamwidth: Both vertical and horizontal beamwidths are 5 degrees, focusing the signal for long-distance communication and reducing interference from adjacent channels.

• VSWR (Voltage Standing Wave Ratio): The antenna maintains a maximum VSWR of 1.4:1, indicating efficient power transmission and minimal signal reflection.

• Cross-Polarization Isolation: With a minimum isolation of 35 dB, the antenna effectively minimizes interference between polarizations, ensuring clear and reliable signal quality.

• Wind Loading and Survivability: Engineered to withstand harsh weather conditions, the RD-5G31-AC can endure wind speeds up to 200 km/h (125 mph), making it resilient against extreme environmental challenges.

• Connector Type: Equipped with (2) RP-SMA female connectors, the antenna ensures secure and reliable connections to compatible devices.

• Mounting: The package includes a universal pole mount, RocketM bracket, and weatherproof RF connectors, facilitating versatile and robust installation options on poles with diameters ranging from 38 to 100 mm.

Applications

The RD-5G31-AC is ideal for establishing high-capacity, long-distance wireless links in various scenarios, including:

• Internet Service Provider (ISP) Backhauls: Delivering reliable connectivity between network nodes over vast distances.

• Enterprise Network Bridging: Connecting separate corporate campuses or facilities with secure, high-speed links.

• Remote Video Surveillance: Transmitting high-definition video feeds from distant security cameras to centralized monitoring stations.

• Rural Broadband Deployment: Providing high-speed internet access to remote areas where wired infrastructure is impractical.

In summary, the Ubiquiti airMAX 5 GHz 31 dBi Dual-Polarized RocketDish Antenna (RD-5G31-AC) combines high gain, robust construction, and seamless integration capabilities to deliver exceptional performance for long-range, point-to-point wireless communication needs. Its advanced features and durable design make it a reliable choice for various demanding applications.

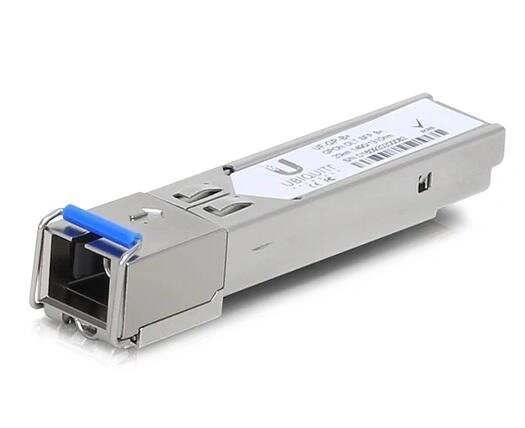

Ubiquiti UF-GP-B+ GPON SFP Module – High-Performance Optical Fiber Connectivity

The UF-GP-B+ GPON SFP module is designed to provide high-speed, long-distance fiber connectivity for the Ubiquiti UFiber OLT (Optical Line Terminal). Engineered for seamless integration, this module ensures reliable and efficient data transmission over single-mode fiber (SMF) networks.

Whether you’re deploying an Internet Service Provider (ISP) network, expanding fiber-to-the-home (FTTH) services, or setting up enterprise-grade fiber connectivity, the UF-GP-B+ offers superior performance with low power consumption and high data rates.

Key Features & Benefits

1. High-Speed GPON Connectivity

The UF-GP-B+ module is optimized for GPON (Gigabit Passive Optical Network) technology, delivering exceptional 2.5 Gbps downstream and 1.25 Gbps upstream speeds. This ensures smooth, high-bandwidth communication between the OLT and ONT (Optical Network Terminal) devices, making it ideal for high-demand networking applications.

2. Long-Distance Fiber Transmission

With a maximum transmission range of 20 km, this module enables extended fiber optic deployments without signal degradation. This makes it suitable for metro networks, suburban broadband expansion, and enterprise-level fiber solutions.

3. High-Performance Optical Power Range

• Transmit (TX) Wavelength: 1490 nm
• Receive (RX) Wavelength: 1310 nm
• Transmit Power Range: 1.5 to 5 dBm
• Receive Sensitivity Range: -8 to -28 dBm

The module’s precise optical power range enhances signal quality while reducing the risk of transmission errors or loss.

4. Reliable & Secure SC/UPC Connector

The SC/UPC connector type ensures a secure and stable connection with minimal insertion loss. This makes it a reliable choice for high-density fiber environments and critical fiber optic communication networks.

5. Seamless Integration with UFiber OLT

The UF-GP-B+ module is pre-installed in the Ubiquiti UFiber OLT and can be easily replaced or added for scalability. This plug-and-play capability reduces setup time and simplifies network expansion.

6. Energy-Efficient Design

Engineered for low power consumption, the UF-GP-B+ is designed to operate efficiently, reducing operational costs while maintaining peak performance.

Technical Specifications

Ideal Applications

✔ FTTH (Fiber to the Home) – Provides ultra-fast internet services to residential users.
✔ Enterprise Networks – Supports data-intensive applications and high-bandwidth enterprise operations.
✔ Metro and Suburban ISP Networks – Expands high-speed fiber broadband connectivity over long distances.
✔ Data Centers – Ensures high-speed and low-latency connectivity between servers and network devices.
✔ Industrial & Commercial Fiber Deployments – Offers reliable fiber optic communication for mission-critical operations.

Why Choose the Ubiquiti UF-GP-B+ GPON SFP Module?

✔ Seamless compatibility with UFiber OLT systems
✔ Optimized for long-range fiber networks up to 20 km
✔ Reliable high-speed GPON transmission (2.5 Gbps down | 1.25 Gbps up)
✔ Low power consumption & high efficiency
✔ Easy installation & scalability for expanding fiber networks

The Ubiquiti UF-GP-B+ GPON SFP module is an essential component for high-performance fiber networking. It offers unmatched speed, long-distance connectivity, and seamless integration, making it the perfect choice for ISPs, enterprises, and commercial network providers.
