Ubiquiti UAP-XG UniFi Enterprise Wi-Fi Access Point with 10Gbps Ethernet
Ultra High-Density Wi-Fi with 10GbE Performance for Enterprise Environments
Designed for the most demanding wireless deployments, the Ubiquiti UAP-XG UniFi Enterprise Access Point delivers powerful, secure, and scalable connectivity with up to 1500 concurrent clients supported. Featuring Quad-Radio 802.11ac Wave 2 technology, dedicated security radio, and 10Gbps Ethernet, it’s the ultimate wireless solution for large-scale enterprise, stadiums, airports, and convention centers.
Key Features and Benefits
1. 802.11ac Wave 2 Quad-Radio Technology
The UAP-XG includes four integrated radios three for client connections and one dedicated to security. With 4×4 MU-MIMO spatial streams, it offers up to 1733 Mbps on 5 GHz and 800 Mbps on 2.4 GHz, ensuring top-tier wireless performance even in ultra-high-density environments.
2. Enterprise-Class Throughput & 10Gbps Ethernet

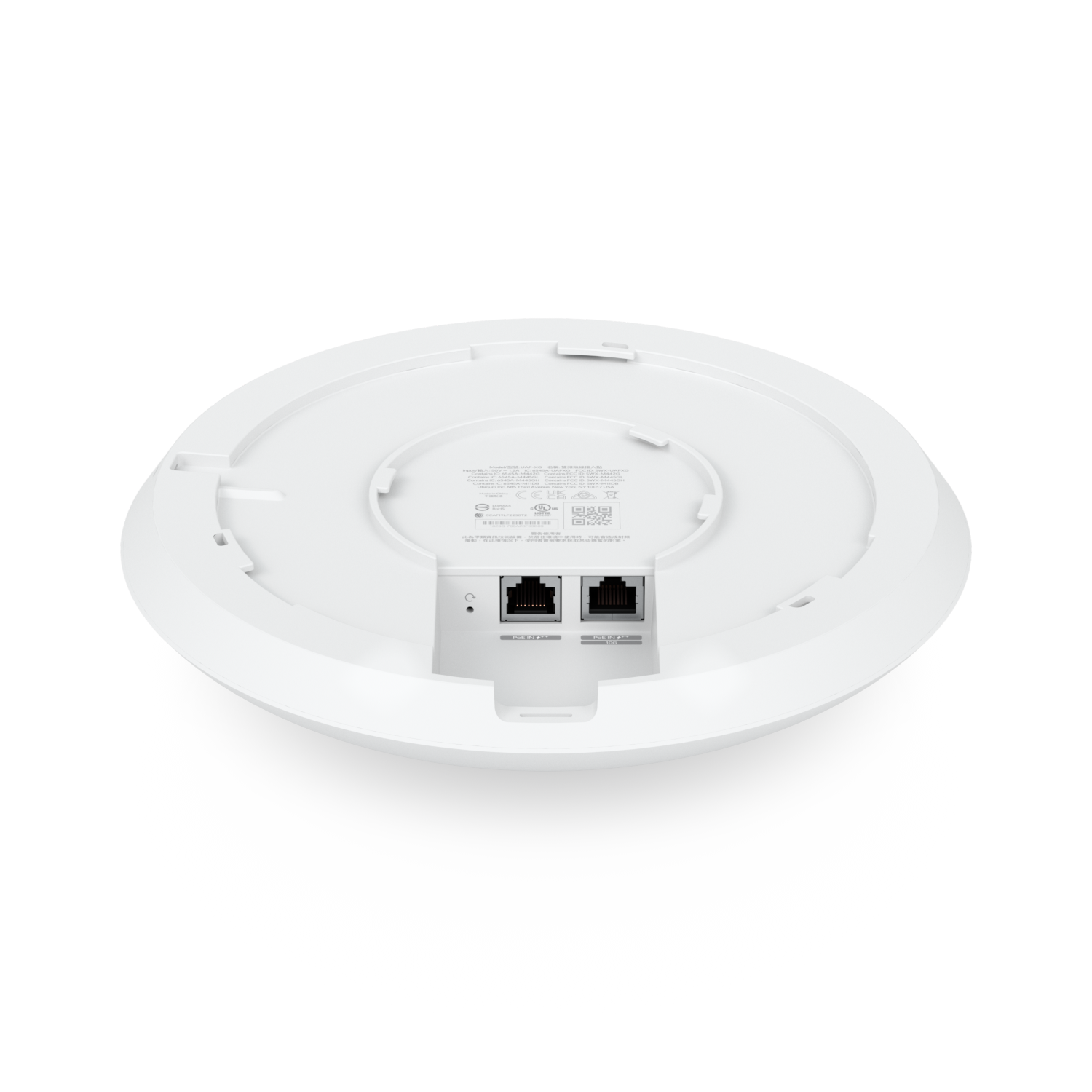

Equipped with a 1/10 Gb/s ICM Ethernet port and a 1x Gigabit Ethernet port, the UAP-XG ensures lightning-fast data transfer and minimal latency. Perfect for enterprise networks requiring high bandwidth and low interference.
3. Advanced Security & Network Monitoring
Stay ahead of threats with a dedicated security radio that provides Wi-Fi packet analysis, spectrum scanning, and real-time channel monitoring. Protect your enterprise network while optimizing performance.
4. UniFi Controller Integration
Easily manage multiple access points with the UniFi Controller Software, offering:
-
WLAN group configuration
-
Guest portal & hotspot support
-
Detailed analytics & spectral analysis
-
Multi-site management
-
Band steering for optimal performance
5. Versatile Mounting and PoE Compatibility
Includes all mounting hardware for wall, ceiling, or junction box installation. The unit is 802.3bt PoE compliant, and a PoE injector is included, simplifying deployment without additional power infrastructure.
What’s Included
-
1x Ubiquiti UAP-XG Access Point
-
Mounting kit for wall/ceiling/junction box
-
802.3bt PoE Injector
-
Quick Start Guide
Ideal For
-
Stadiums & Arenas
-
Airports & Transport Hubs
-
Large Enterprises
-
Convention Centers
-
High-Density Office Environments
Technical Specifications
| Feature | Specification |
|---|---|
| Wi-Fi Standard | 802.11ac Wave 2 |
| Radios | 3x Client, 1x Security |
| Max Clients | 1500+ |
| Ethernet Ports | 1x Gigabit, 1x 1/10GbE |
| Antennas | Integrated Dual Polarity |
| PoE Support | 802.3bt (PoE Injector Included) |
| Mounting | Wall, Ceiling, Junction Box |
| Management | UniFi Controller Software |
Frequently Asked Questions (FAQs)
Q1: What makes the Ubiquiti UAP-XG different from other access points?
A: The UAP-XG features four radios three for clients and one for security making it ideal for high-density environments. It also supports up to 1500 concurrent users and has a 10Gbps Ethernet port for maximum throughput.
Q2: Is the UAP-XG suitable for outdoor use?
A: No, the UAP-XG is designed for indoor deployments in high-density enterprise environments such as convention halls, airports, and large office buildings.
Q3: Does the UAP-XG require a separate power source?
A: No, it supports 802.3bt PoE, and a PoE injector is included for power and data over a single cable.
Q4: Can I manage multiple UAP-XG units from a single dashboard?
A: Yes, with UniFi Controller Software, you can centrally manage all UniFi access points, including UAP-XG units, from one intuitive interface.
Q5: What’s the maximum wireless speed of the UAP-XG?
A: The UAP-XG can deliver up to 1733 Mbps on the 5 GHz band and 800 Mbps on the 2.4 GHz band.
