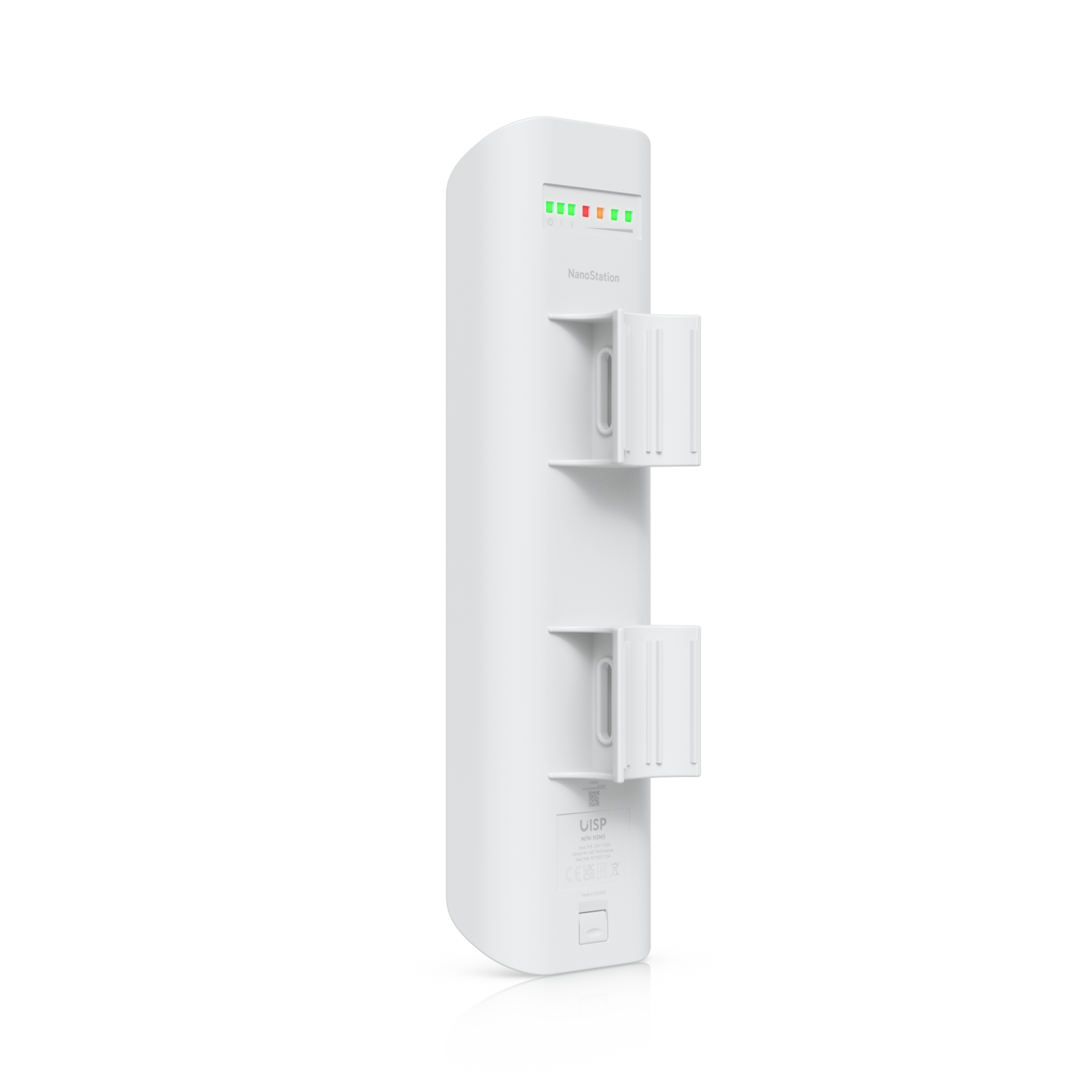

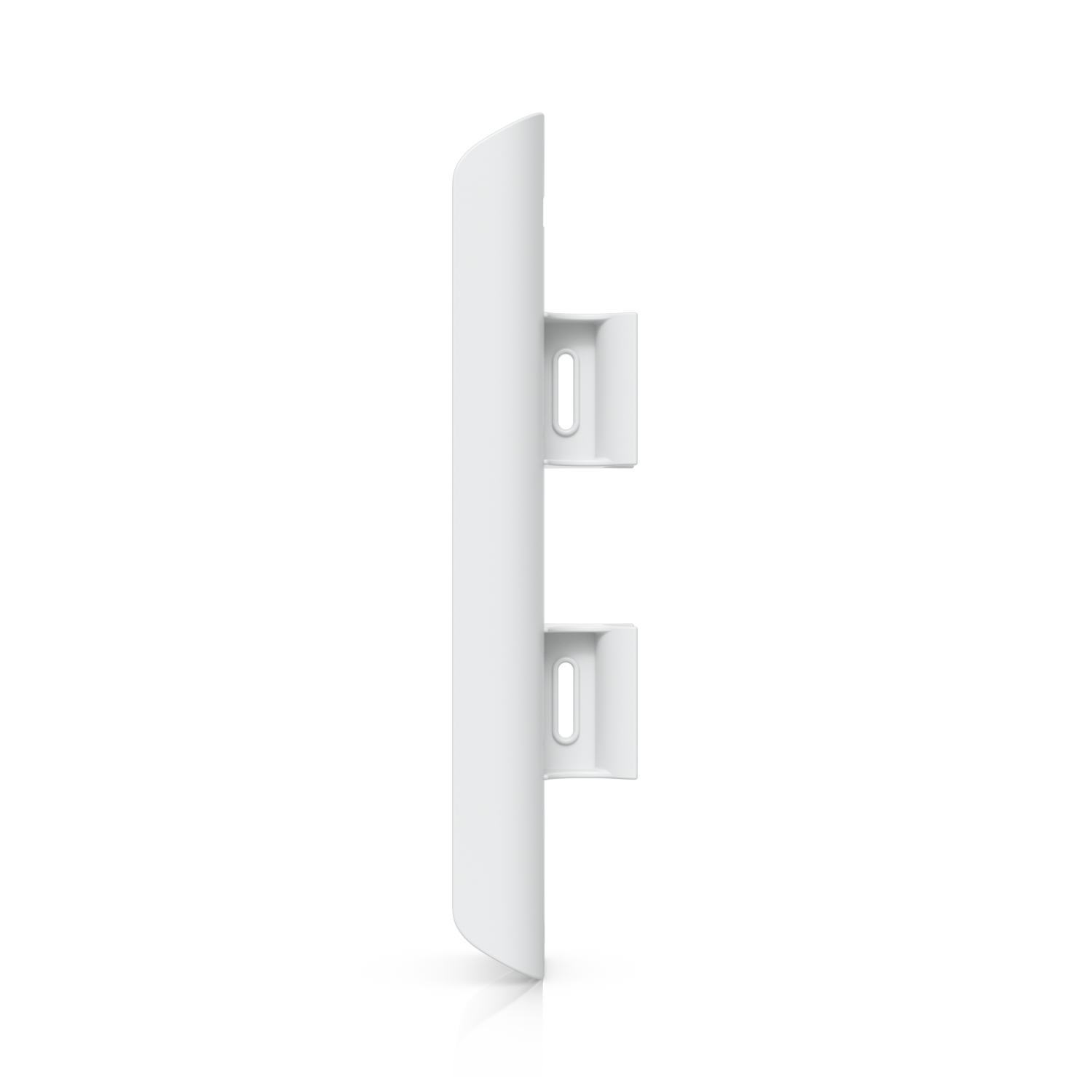

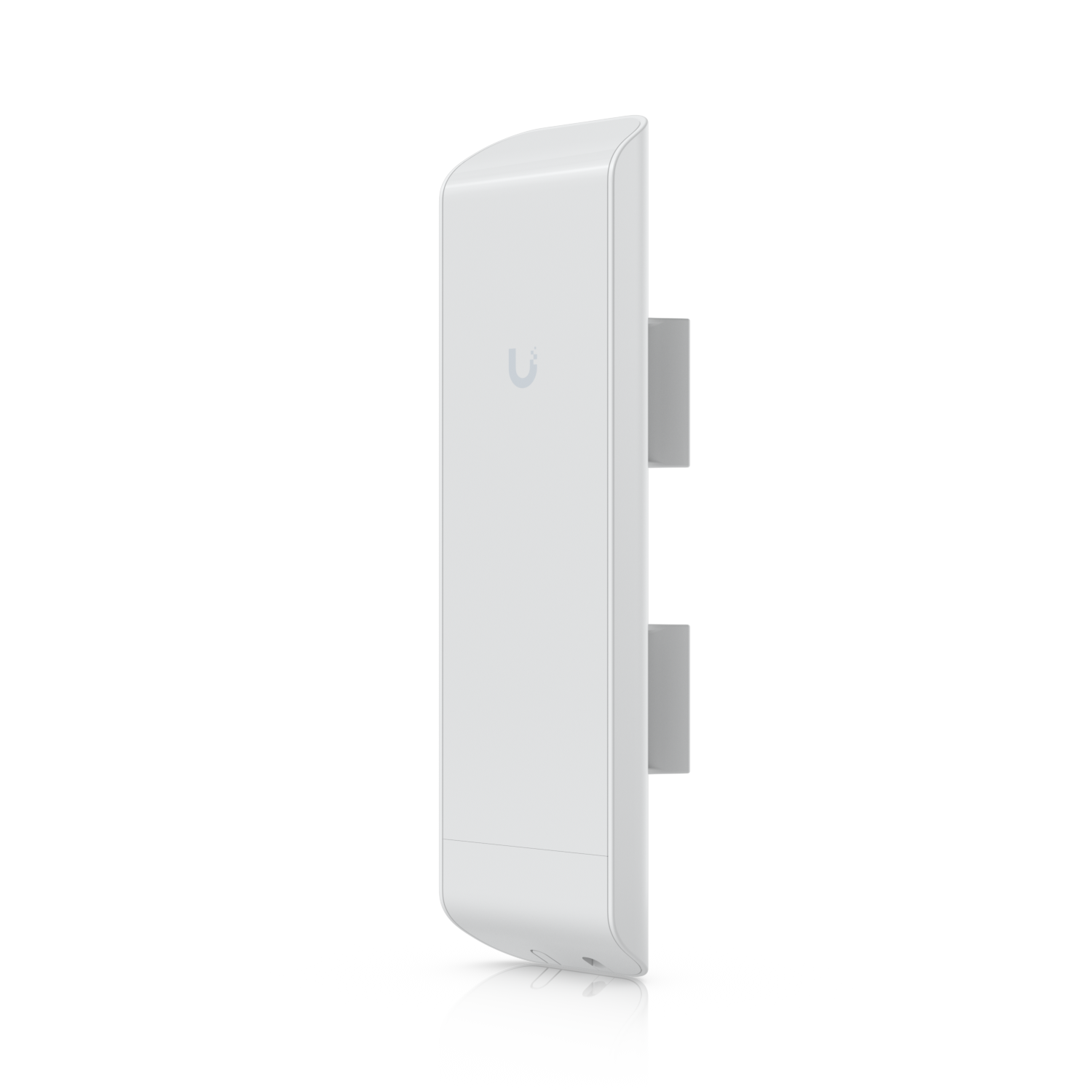

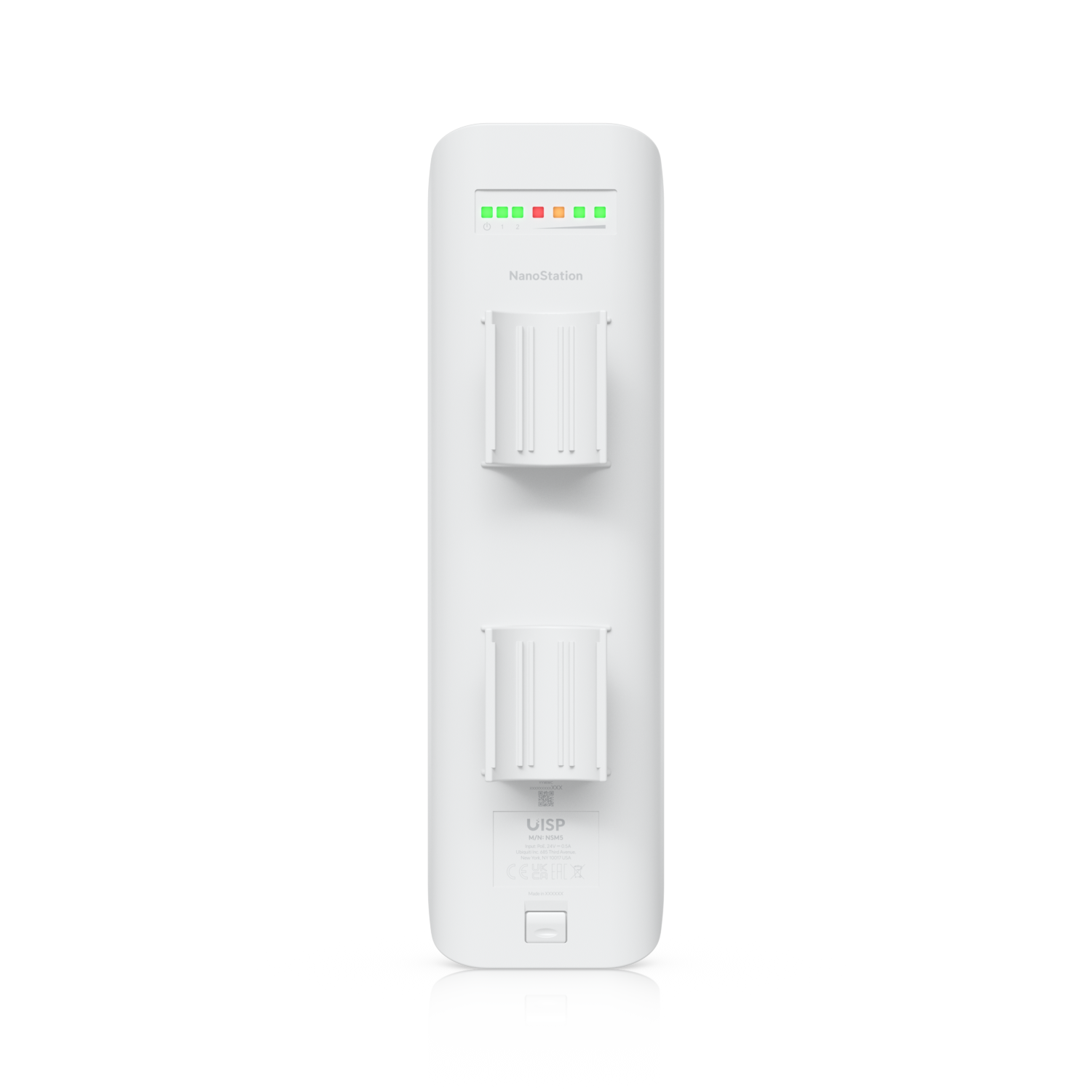

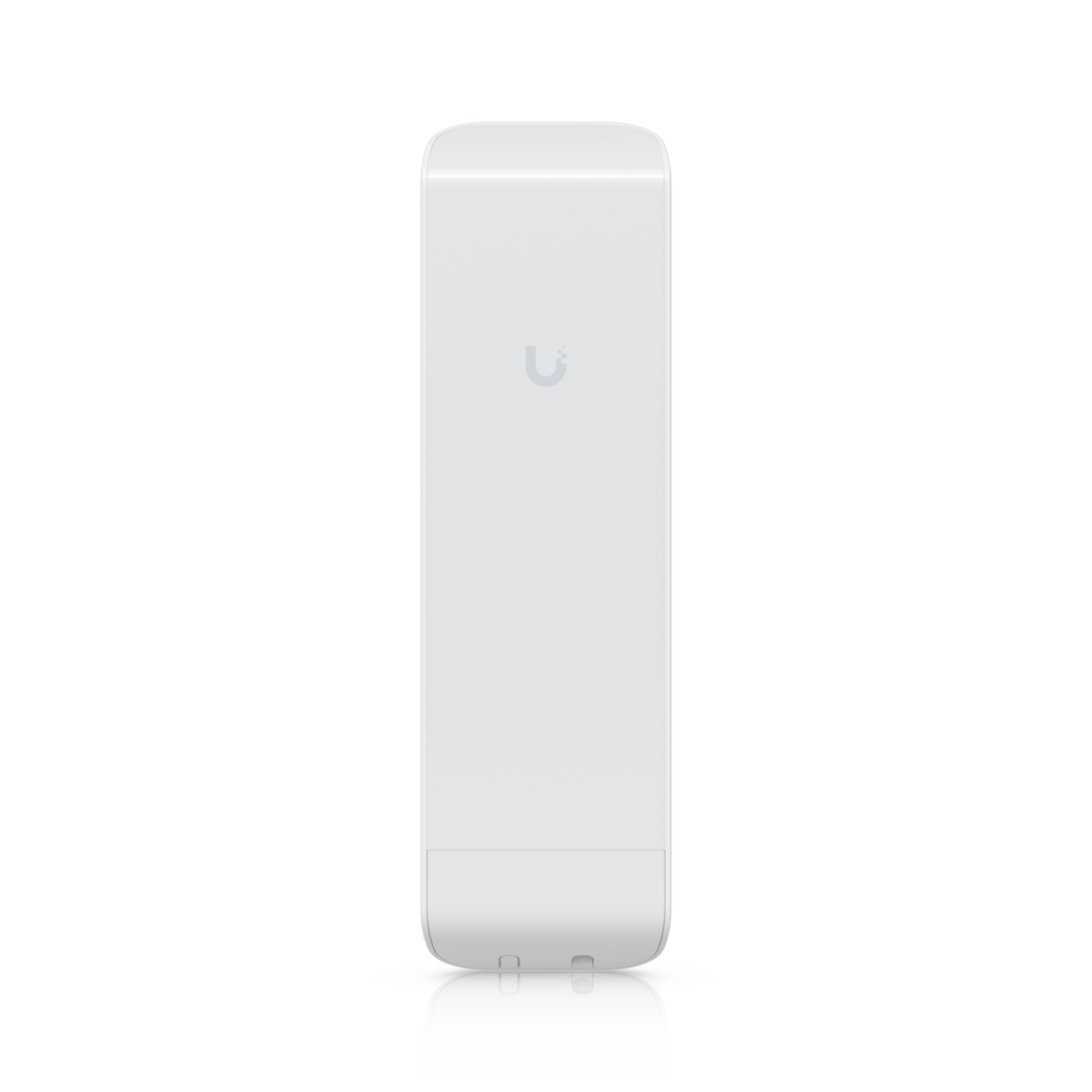

Ubiquiti NanoStation5 NSM5 High Gain 5GHz Outdoor CPE for Long Range Wireless Links

The Ubiquiti NSM5 NanoStation5 is a powerful 5GHz outdoor wireless CPE router designed for long-range broadband connectivity. Engineered for high-speed point-to-point or point-to-multipoint applications, it delivers outstanding performance even in harsh weather conditions. With adaptive antenna polarity and advanced airOS firmware, the NSM5 is an ideal solution for businesses, rural setups, or security integrators needing stable and scalable wireless links.

Key Features & Benefits

Optimized for Outdoor Wireless Performance

Equipped with a 560 MHz Atheros MIPS processor, 64MB DDR2 RAM, and dual 10/100 Ethernet ports, the NSM5 delivers dependable wireless performance and smooth data throughput for demanding environments.

High-Gain Antenna with Adaptive Polarity

With antenna gain ranging from 14.6–16.1 dBi, the NSM5 supports long-range communication. Its adaptive antenna polarity can switch dynamically or statically, optimizing the signal strength and connection quality across varying conditions.

Operates in the 5GHz Frequency Band

Operating in the 5170–5875 MHz range, the NSM5 reduces interference common in the 2.4GHz band, making it suitable for environments requiring clean, high-capacity wireless channels.

airOS Firmware for Easy Management

The built-in airOS offers an intuitive user interface backed by a robust architecture, enabling operators to easily deploy and manage multi-point wireless networks without advanced training.

Passive PoE Support

Power the device remotely using 24V Passive PoE, minimizing the need for local power outlets and simplifying outdoor installations.

Built for Harsh NZ Environments

Encased in UV-stabilized outdoor plastic, the NSM5 is designed to operate in temperatures ranging from -30°C to 75°C, making it an ideal solution for both urban and remote outdoor deployments in New Zealand.

Technical Specifications

Dimensions: 294 x 31 x 80 mm
Weight: 400 g
Power Supply: (PoE) 24V, 0.5A
Max. Power Consumption: 8W
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency: 5170-5875 MHz
Gain: 14.6-16.1 dBi

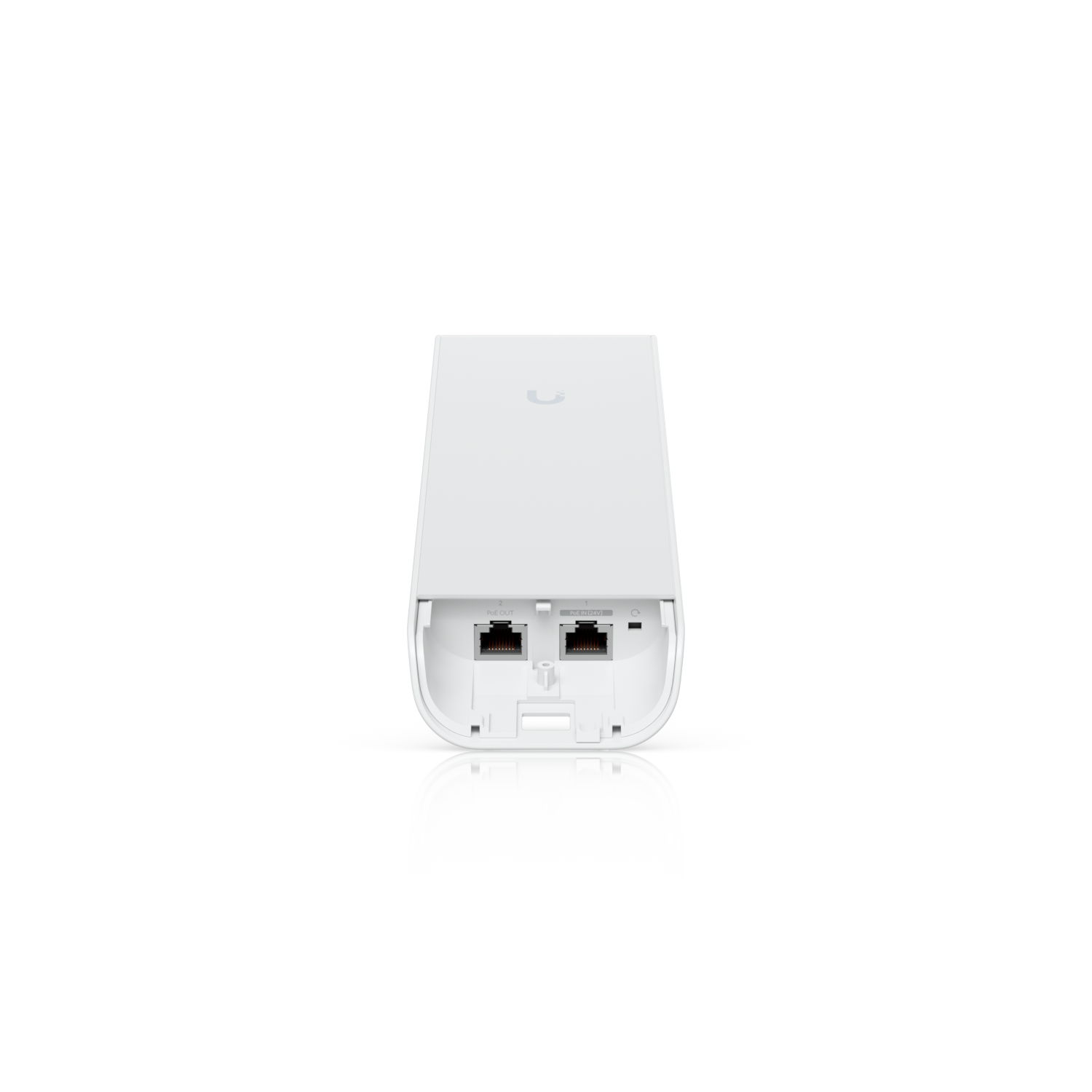

Networking Interface: (2) 10/100 Ethernet Ports
Processor Specs: Atheros MIPS 74Kc, 560 MHz
Memory: 64 MB DDR2, 8 MB Flash
Frequency: 5 GHz
Cross-pol Isolation: 22 dB Minimum
Max. VSWR: 1.6:1
Beamwidth: 43° (H-pol) / 41° (V-pol) / 15° (Elevation)
Polarization: Dual Linear
Enclosure: Outdoor UV Stabilized Plastic
Mounting: Pole-Mount (Kit Included)
Operating Temperature: -30 to 75° C (-22 to 167° F)
Operating Humidity: 5 to 95% Noncondensing
Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: Yes
Shock & Vibration: ETSI300-019-1.4

Applications

• Wireless bridge for building-to-building connections

• Rural internet delivery across large distances in NZ

• IP video surveillance backhaul

• Industrial or remote-area wireless coverage

• WISPs (Wireless Internet Service Providers)

Frequently Asked Questions (FAQs)

What is the Ubiquiti NSM5 used for?

The NSM5 is a 5GHz outdoor wireless CPE router designed for long-range point-to-point or multipoint wireless connectivity. It’s commonly used to connect buildings, remote cameras, or provide rural internet service.

What makes the NSM5 ideal for outdoor use?

It has a UV-stabilized enclosure, operating temperature range of -30 to 75°C, and adaptive antenna polarity, making it reliable in all weather conditions across NZ.

Can the NSM5 be powered with PoE?

Yes, it uses 24V passive PoE, allowing for flexible installations without the need for an external power source near the device.

Is the NSM5 compatible with other Ubiquiti products?

Absolutely. It integrates seamlessly with other Ubiquiti airMAX devices, including Rocket and Bullet series, when creating scalable wireless networks.

What’s the range of the NSM5?

Depending on line of sight and antenna alignment, it can support up to several kilometers in point-to-point applications.
