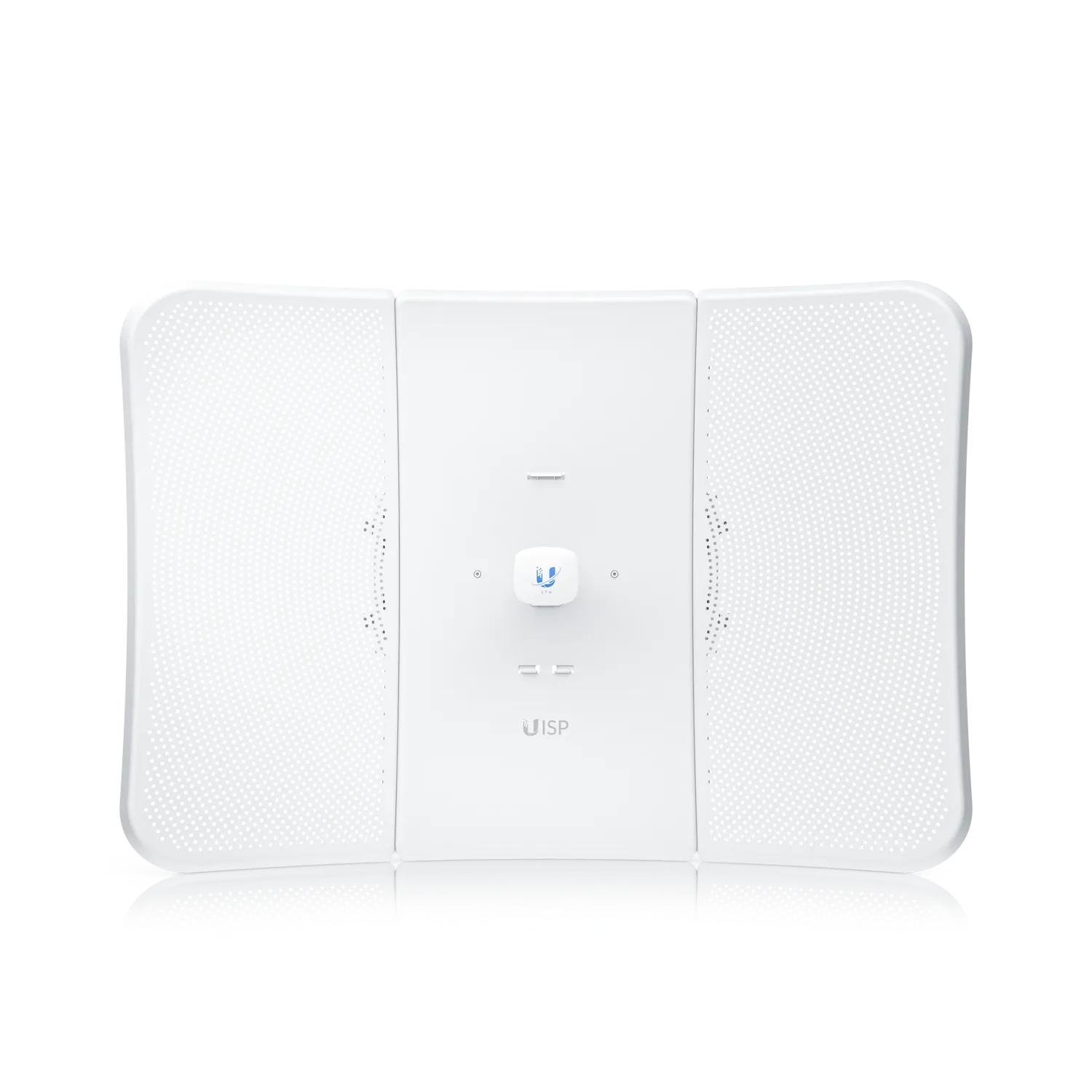

Ubiquiti LTU-XR – Long-Range 5GHz PtMP CPE with 29 dBi Gain

The Ubiquiti LTU-XR is a high-performance 5GHz LTU CPE built for wireless ISPs and enterprise grade point-to-multipoint (PtMP) links. Featuring a powerful 29 dBi antenna with InnerFeed® technology and support for up to 550 Mbps throughput, the LTU-XR delivers unmatched range, reliability, and scalability for long-distance wireless networks.

Designed for challenging RF environments, the LTU-XR supports independent TX/RX channel frequency configurations, reducing local interference and maximizing spectrum efficiency. This makes it ideal for rural broadband, wireless backhaul, and enterprise PtMP deployments in New Zealand and beyond.

Key Features & Benefits

✅ Ultra Long-Range Wireless Performance
Achieve reliable links up to 35 km using the integrated 29 dBi directional antenna and InnerFeed® radio technology ideal for remote regions and rural connectivity.

✅ Proprietary LTU Technology
Outperforms standard 802.11 WiFi systems with 1024 QAM modulation, delivering higher data rates, greater noise resistance, and improved spectral efficiency.

✅ Channel Flexibility & Frequency Split
Customizable 10/20/30/40/50 MHz channel widths and independent TX/RX configurations allow operators to avoid interference and optimize network performance.

✅ Integrated GPS & Centralized Control
GPS synchronization enables efficient spectrum reuse, while management from the AP side simplifies configuration across multi-client deployments.

✅ UISP App Integration
Setup is fast and seamless via the Bluetooth enabled UISP Mobile app, supporting easy installation, monitoring, and remote management.

✅ Built for WISPs & ISPs
Purpose-built for wireless internet service providers requiring long-range, high-capacity PtMP CPEs that scale with user demand.

Applications of the Ubiquiti LTU-XR

• 📡 Rural Internet Expansion
  Deliver broadband to remote or under connected regions where fibre is not feasible.

• 🏢 Enterprise Wireless Backhaul
  Connect office buildings, warehouses, or remote facilities without trenching cables.

• 🛠 Wireless Surveillance Networks
  Transmit high-definition video from security cameras in long-range setups.

• 🌐 WISP Deployments
  Perfect for New Zealand-based ISPs expanding their footprint with efficient frequency use and reliable PtMP performance.

• 🔧 Industrial & IoT Connectivity
  Connect industrial systems, sensors, or equipment in agricultural or offshore environments.

Technical Specifications

• Antenna Gain: 29 dBi with InnerFeed®

• Throughput: Up to 550 Mbps

• Modulation: 1024 QAM

• Frequency Range: 5 GHz band

• Channel Widths: 10/20/30/40/50 MHz

• Management: UISP App via Bluetooth

• Configuration: Central AP-side control

• Mounting: Pole-mount compatible

• Range: Up to 35 km

• GPS Sync: Integrated

• Mode: Router & PTP Support

Why Choose the LTU-XR?

✔ Extended wireless range for hard-to-reach areas
✔ Easy configuration with mobile app support
✔ Advanced channel management and GPS sync
✔ Built to scale for high-density PtMP environments
✔ Trusted by WISPs, surveillance integrators, and rural ISPs

In the Box

• LTU-XR Radio Unit

• Mounting Hardware

• Power Supply (24V PoE)

• Quick Start Guide
