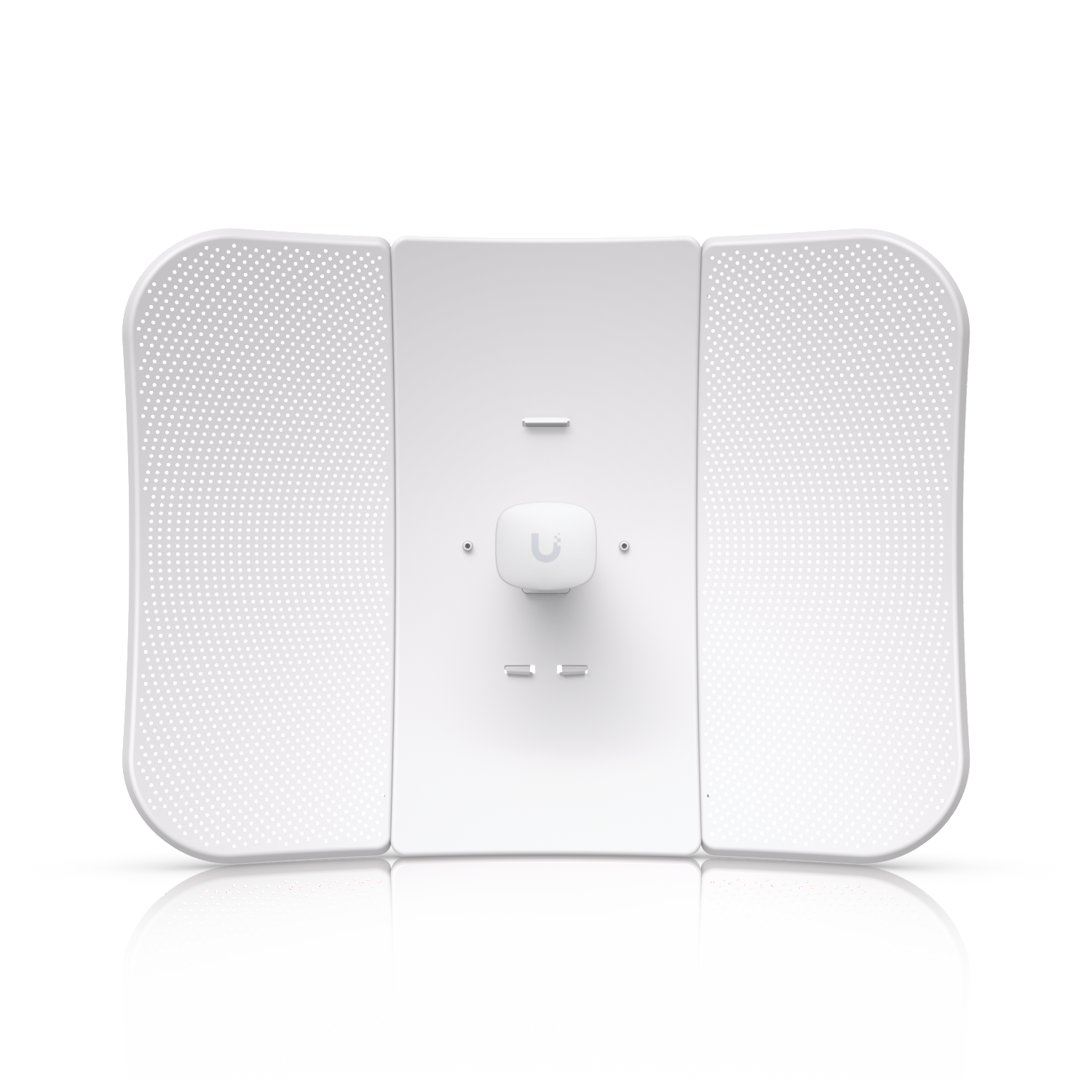

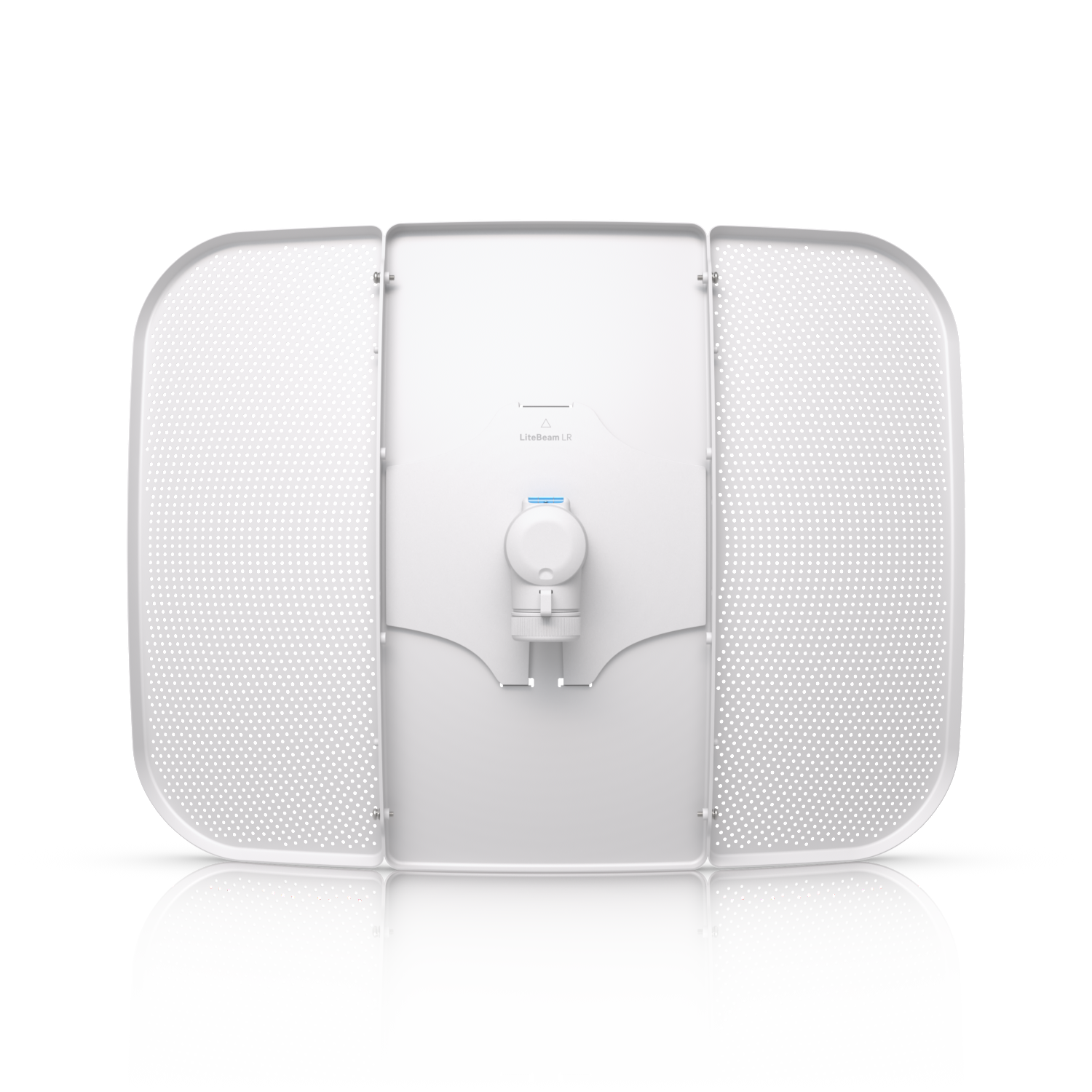

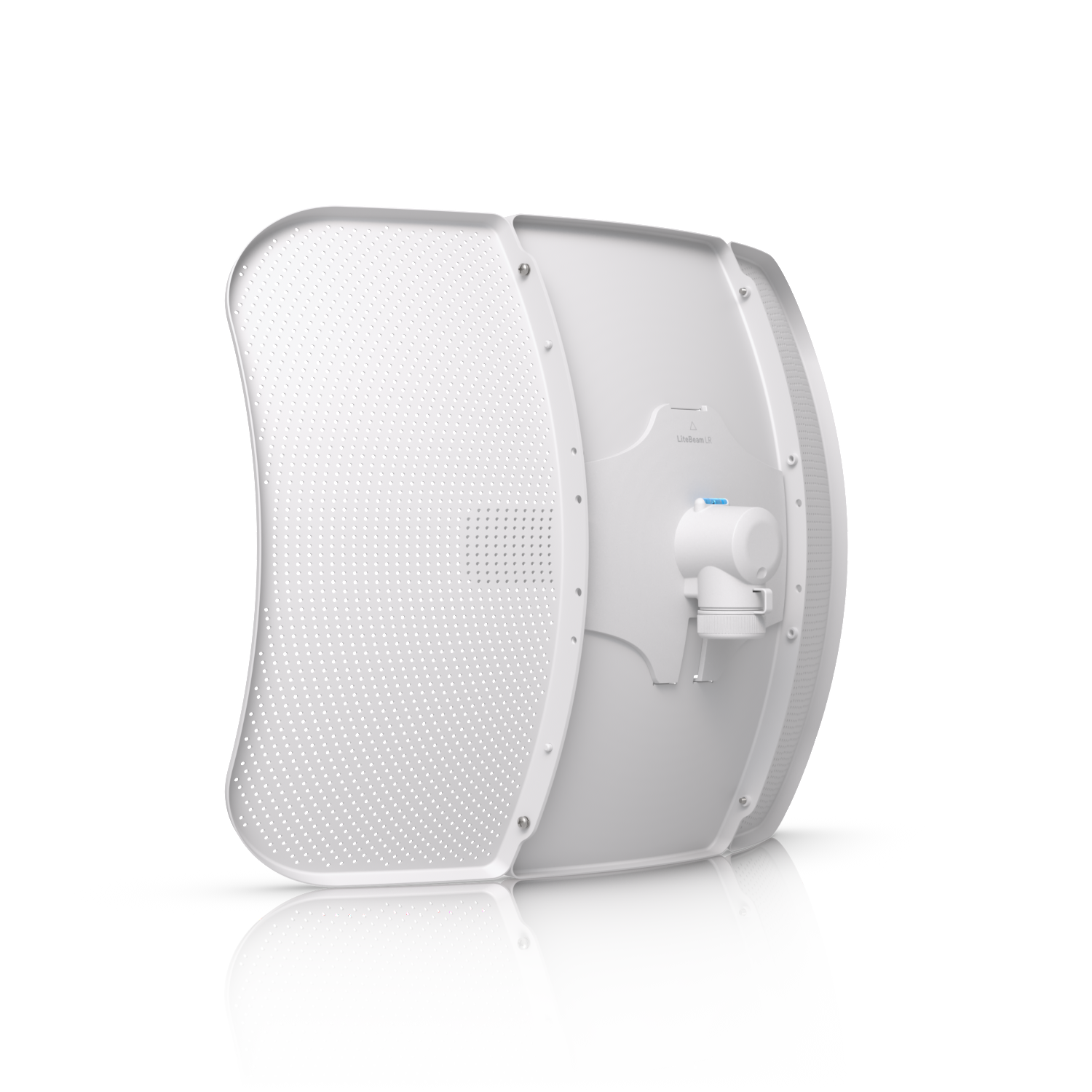

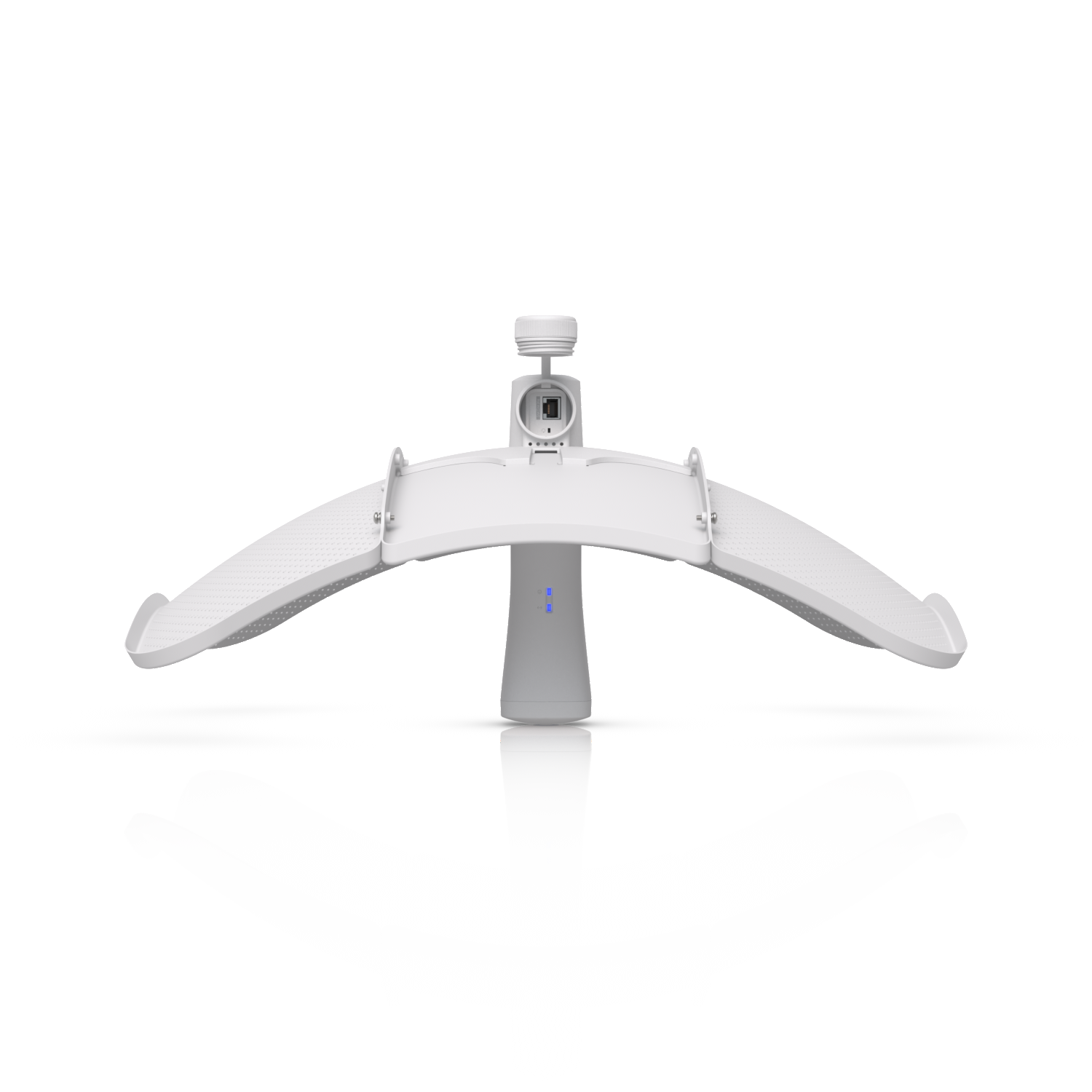

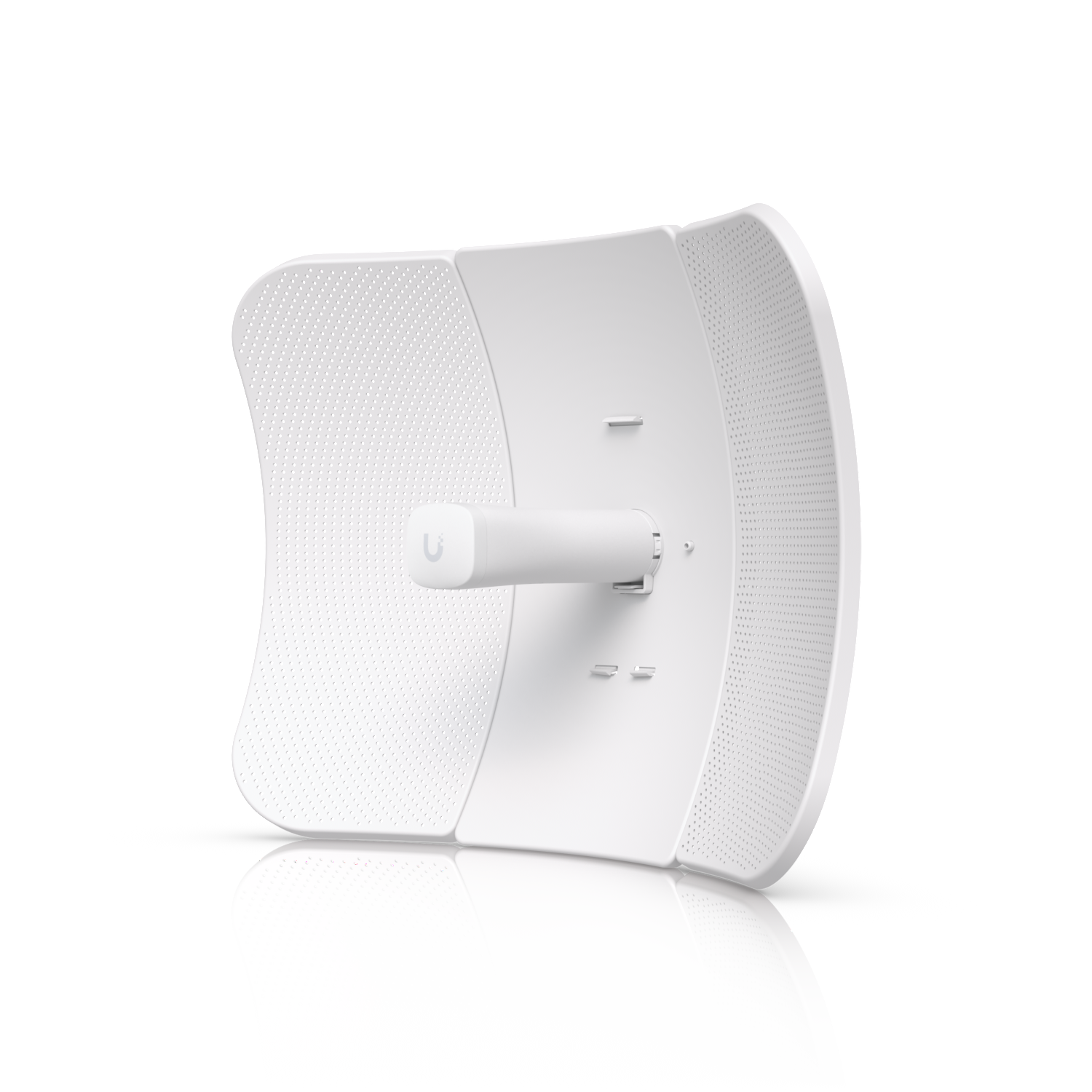

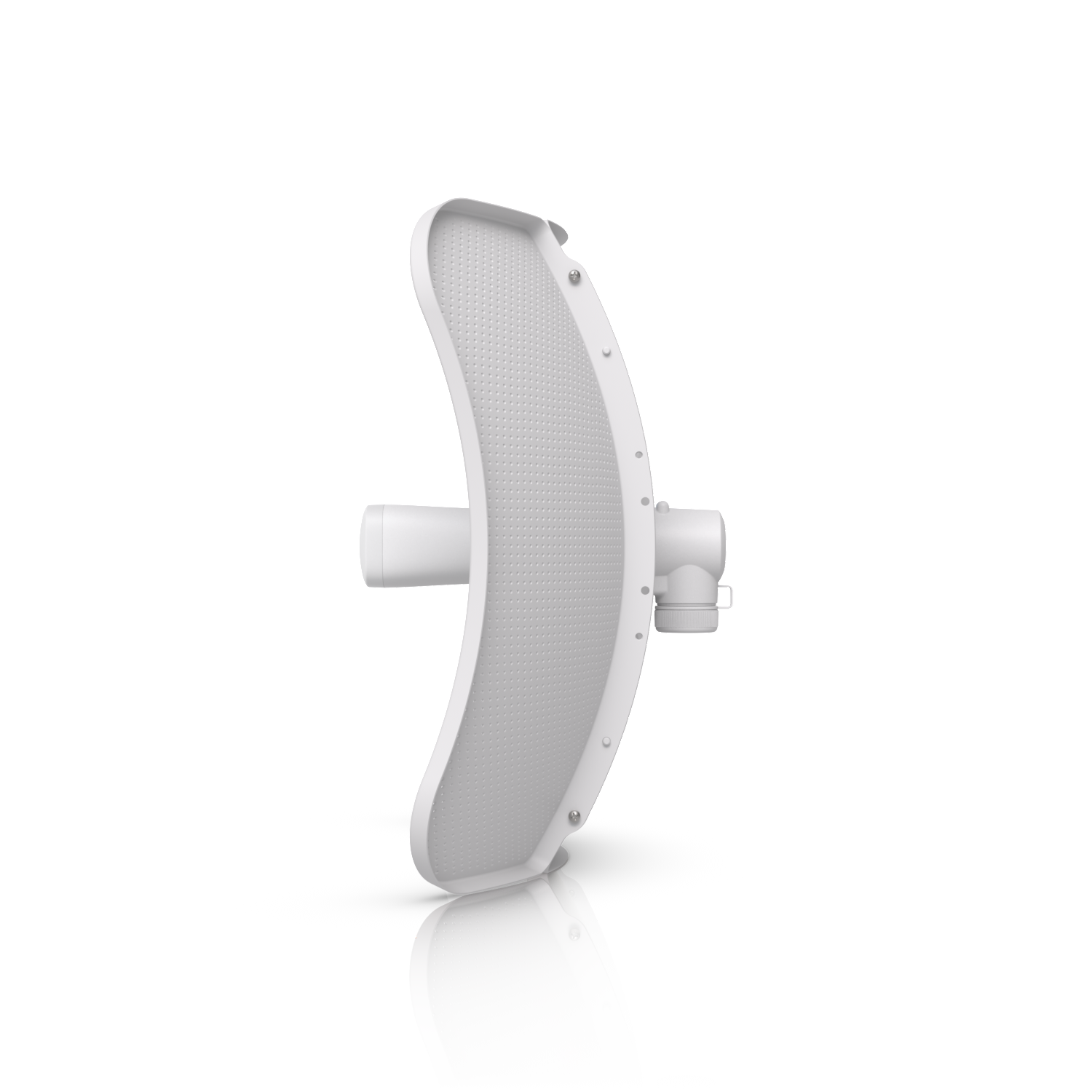

Ubiquiti LiteBeam AC LR (LBE-5AC-LR) – 26 dBi Long-Range Wireless Bridge for Outdoor Connectivity

The LiteBeam AC LR (LBE-5AC-LR) from Ubiquiti Networks is a powerful long-range outdoor wireless bridge engineered for high-performance point-to-point (PtP) connections. Delivering 26 dBi of directional gain, it’s ideal for extending internet between remote buildings, farms, or across large rural properties in New Zealand.

Equipped with airMAX® ac technology and operating in the 5 GHz band, this device ensures high throughput and strong noise immunity. It’s built for speed, simplicity, and durability offering tool-free assembly, weather resistance, and mobile app setup via integrated WiFi.

Key Features & Benefits

✅ 26 dBi Directional Antenna for Long Distance Links
Optimized for wireless bridging over 30+ km, perfect for rural broadband or surveillance backhaul.

✅ airMAX® ac with airOS 8 Support
Advanced features like real time RF analytics, improved user interface, and high MAC efficiency for up to 80% PHY RATE throughput.

✅ Separate WiFi Management Radio
Easily configure and manage the device using the UISP™ mobile app no PC or Ethernet cable required.

✅ Robust 3-Axis Alignment Mounting System
Mount with precision using independent azimuth and elevation adjustments. A built-in bubble level ensures proper alignment.

✅ Surge & ESD Protection
Includes ±24kV protection against electrostatic discharge and power surges, ensuring reliable outdoor performance.

✅ Tool-Free Assembly
Fully assembles in seconds, and only a single wrench is needed for pole mounting no specialized tools required.

✅ High-Speed Gigabit Port
One 10/100/1000 Mbps Ethernet port ensures rapid data transfer for video surveillance, VoIP, or business networking.

✅ Power over Ethernet (PoE)
Includes 24V, 0.3A Gigabit PoE Adapter with passive PoE support (Pairs 4,5+; 7,8 return).

Technical Specifications

What’s in the Box

• 1 × LiteBeam AC LR Device

• 1 × Mounting Kit

• 1 × 24V Gigabit PoE Adapter

• Quick Start Guide

Ideal For

• Rural internet service providers (ISPs)

• Long-range wireless backhaul (30+ km)

• Farm-to-farm networking across New Zealand

• Point-to-point CCTV or surveillance feed transmission

• Connecting remote buildings or field sites
