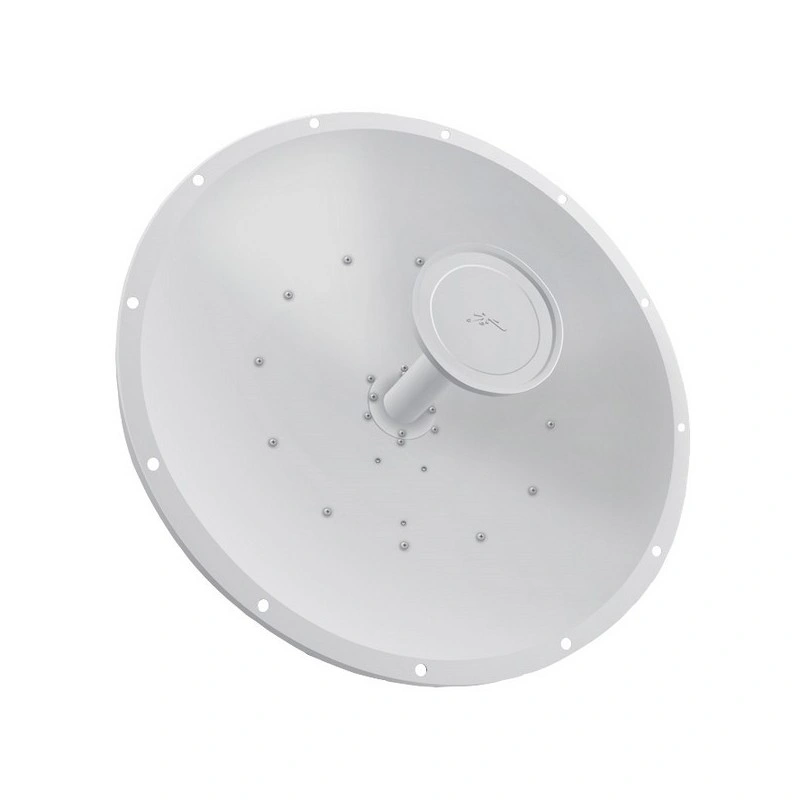

Ubiquiti RocketDish 5G-30 – High-Performance 5GHz 30dBi airMAX PtP Bridge for Long-Range Wireless Connectivity

The Ubiquiti RocketDish 5G-30 is a high-gain, long-range dish antenna designed for point-to-point (PtP) wireless networking. Operating in the 5GHz frequency band (5.1 – 5.8 GHz), this 30dBi dual-polarity dish antenna delivers exceptional signal strength, reduced interference, and high-speed data transmission, making it ideal for WISPs, enterprise networks, and remote connectivity solutions.

Built with airMAX technology, the RocketDish 5G-30 ensures seamless integration with Ubiquiti’s Rocket radios, enabling high-capacity, low-latency wireless bridges. Its rugged outdoor-ready construction and high wind resistance (up to 120 mph) make it perfect for harsh environments, providing reliable network performance in extreme weather conditions.

Key Features & Benefits

📡 30dBi High-Gain for Long-Range Wireless Bridges

The RocketDish 5G-30 offers 30dBi gain, enabling extended signal coverage and superior network performance over long distances. This makes it ideal for building-to-building links, remote network expansion, and high-bandwidth applications.

📶 5GHz Frequency Band for High-Speed & Low-Interference Networking

Operating in the 5.1 – 5.8 GHz spectrum, the RocketDish 5G-30 delivers fast, interference-free connectivity, perfect for rural broadband deployments, backhaul connections, and enterprise networking.

🔄 Dual-Linear Polarization for Enhanced Signal Efficiency

Equipped with dual-linear polarization, this dish antenna ensures improved data throughput and signal stability, making it highly efficient for point-to-point (PtP) applications.

🔗 Seamless Integration with Ubiquiti Rocket Radios

Designed to work effortlessly with Ubiquiti’s Rocket M5, Rocket AC, and airMAX BaseStation radios, the RocketDish 5G-30 transforms into a powerful PtP wireless bridge, providing scalable, high-performance networking.

⚡ Narrow Beamwidth for Focused Signal Transmission

With a 5° horizontal and vertical beamwidth, this antenna delivers a precise and concentrated signal, reducing interference from external sources and ensuring maximum efficiency in long-distance connections.

💨 Wind-Resistant Design for Outdoor Reliability

Built to withstand winds up to 120 mph, the RocketDish 5G-30 is ideal for deployment in extreme weather conditions, ensuring uninterrupted connectivity in rugged outdoor environments.

🔧 Easy Installation with Pole Mounting Support

Featuring RP-SMA female connectors and a 38 – 100mm pole mount diameter, the RocketDish 5G-30 offers hassle-free installation, making it perfect for network professionals and WISP operators.

Technical Specifications

• Frequency Range: 5.1 – 5.8 GHz
• Gain: 30dBi
• Polarization: Dual-Linear
• Cross Polarization: 35dB min
• Max VSWR: 1.4:1
• Vertical Beamwidth: 5° (6dB)
• Horizontal Beamwidth: 5° (3dB)
• Connector Type: (2) RP-SMA Female
• Dimensions: 648mm diameter
• Wind Resistance: Up to 120 mph
• Pole Mount Diameter: 38 – 100mm

Ideal Use Cases

✔ Wireless Internet Service Providers (WISPs) – Delivering high-speed broadband access to remote and urban areas.
✔ Long-Distance Point-to-Point Links – Providing stable, high-capacity connectivity over miles.
✔ Enterprise & Campus Networks – Enabling secure, high-performance network bridges.
✔ Rural & Remote Connectivity – Extending internet access to underserved locations.
✔ Surveillance & Security Networks – Enhancing wireless backhaul for IP cameras and security systems.

Why Choose the Ubiquiti RocketDish 5G-30?

✅ High-Gain 30dBi Antenna for long-range connectivity
✅ 5GHz Frequency Band for low-interference and high-speed networking
✅ Dual-Polarization Design for improved performance
✅ Seamless Compatibility with Ubiquiti Rocket radios
✅ Weather-Resistant & Windproof for reliable outdoor deployments
✅ Precision Beamwidth for optimized signal transmission
✅ Ideal for PtP Wireless Bridges in enterprise and WISP networks

Upgrade your wireless network infrastructure with the Ubiquiti RocketDish 5G-30 – a high-performance, long-range dish antenna for ultra-fast, interference-free connectivity.
